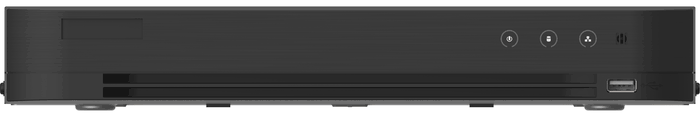

LTD8304D-ET LTS Platinum 4-Channel DVR with 1080p, H.265, MD2.0, & Direct Search

Model	LTD8304D-ET
Facial Recognition
Face Comparison	Face Image comparison, face image search (1 ch. of face image comparison alarm for HD analog camera)
Face Image Library	Up to 16 face image libraries
Motion Detection 2.0
Human / Vehicle Analysis	Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Direct search by object or event type is supported;
VCAs
Human / Vehicle Analysis	Up to 2 chs.
Recording
Video Compression	H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Encoding Resolution	When 1080p Lite mode is not enabled: 3K lite / 5 MP lite / 4 MP lite / 1080p / 720p/ VGA / WD1 / 4CIF / CIF When 1080p Lite mode is enabled: 3K lite / 5 MP lite / 4 MP lite / 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF
Frame Rates	Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite @ 12fps; 4 MP lite / 1080p @ 15 fps; 720p / WD1 / 4CIF / VGA / CIF @ 20 fps For 5 MP stream access: 5 MP lite @ 12 fps; 4 MP lite / 1080p @ 15 fps; 720p / WD1 / 4CIF / VGA / CIF @ 20 fps For 4 MP stream access: 4 MP lite / 1080p @ 15 fps; 720p / WD1 / 4CIF / VGA / CIF @ 25 fps (P) /30 fps (N) For 1080p stream access: 1080p / 720p @ 15 fps; VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N) For 720p stream access: 720p / VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N) When 1080p Lite mode enabled: 3K lite / 5 MP lite @ 12 fps; 4 MP lite @ 15 fps; 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N) Sub-stream: WD1 / 4CIF @ 12 fps; CIF @ 25 fps (P) / 30 fps (N)
Video Bitrate	32 Kbps to 6 Mbps
Dual-stream	Supported
Stream Type	Video, Video & Audio
Audio Compression	G.711u
Audio Bitrate	64 Kbps
Video and Audio
IP Video Input	1 ch (up to 5) Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps Up to 6 MP resolution Supports H.265+ / H.265 / H.264+ / H.264 IP cameras
Analog Video Input	4 chs. BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HD-TVI Input	3K (2960 x 1665) @ 20 fps, 5 MP (2560 x 1944) @ 20 fps, 4 MP (2560 x 1440) @ 30 fps, 4 MP (2560 x 1440) @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps, 720p @ 30 fps, 720p @ 25 fps
AHD Input	5 MP (2592 x 1944) @ 20 fps, 4 MP (2560 x 1440) @ 30 fps, 4 MP (2560 x 1440) @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps, 720p @ 30 fps, 720p @ 25 fps
HDCVI Input	5 MP (2592 x 1944) @ 20 fps, 4 MP (2560 x 1440) @ 30 fps, 4 MP (2560 x 1440) @25 fps, 1080p @ 30 fps, 1080p @ 25 fps, 720p @ 30 fps, 720p @ 25 fps
CVBS Input	PAL / NTSC
CVBS Output	1 ch, BNC (1.0 Vp-p, 75 Ω), Resolution: PAL: 704 x 576, NTSC: 704 x 480
HDMI Output	1 ch, 1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, HDMI / VGA simultaneous output
VGA Output	1 ch, 1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, HDMI / VGA simultaneous output
Audio Input	1 ch (up to 4 chs. optional), RCA (2.0 Vp-p, 1 KΩ) 4 chs. via coaxial cable
Audio Output	1 ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1 ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback	4 chs.
Network
Remote Connection	32
Total Bandwidth	72 Mbps
Network Protocol	TCP / IP, PPPoE, DHCP, LTS Connect, DNS, DDNS, NTP, NFS, iSCSI, UPnP�, HTTPS, ONVIF
Network Interface	1 x RJ45; 10/100 Mbps self-adaptive Ethernet interface
Wi-Fi	Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
SATA	1 x SATA interface, up to 10 TB capacity for each disk
Serial Interface	RS-485 (half-duplex)
USB Interface	Front panel: 1 x USB 2.0 Rear panel: 1 x USB 2.0
Alarm In / Out	N/A (optional support)
General
Power Supply	12 V DC, 1.5 A
Consumption	≤ 18 W
Operating Temperature	14° to 131° F (-10° to 55° C)
Operating Humidity	10% to 90%
Dimensions (W x D x H)	12.4 x 9.5 x 1.8 inches (315 x 242 x 45 mm)
Weight	≤ 2.6 lb (1.16 kg)
