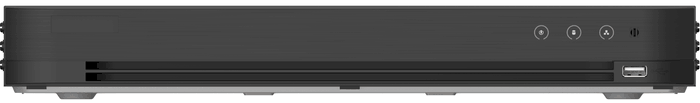

LTD8316D-ET LTS Platinum 16-Channel TVI DVR
LTD8316D-ET LTS Platinum 16-Channel TVI DVR
- H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
- Recording at up to 8 MP resolution
- Up to 16 channels (analog) Motion Detection 2.0
- Up to 8 channels (advanced model, analog channel) VCA
- Up to 4 channels (advanced model, analog channel) of human face recognition
- Supports smart playback to enhance playback efficiency
- Supports LTS Connect & DDNS (Dynamic Domain Name System)
- Output bandwidth limit configurable
- 16 chs. + 8 IP (up to 4 MP)
- All channels support 4 MP lite @ 15 fps
- 2 x HDD
- Supports 4 chs. Facial Recognition or 8-ch advanced VCA functionality based on Deep Learning algorithm
- Supports HD-TVI Two-Way Audio technology
- Efficient H.265 pro+ compression technology
- Encoding ability up to 3K / 5 MP Lite @ 12 fps
- Up to 24 channels IP camera inputs, each channel up to 6 MP
- Up to 24 x 1080p @ 30 fps decoding ability
- 5 input signal options (HD-TVI / AHD / CVI / CVBS / IP) (self-adaptive)
- Supports Motion Detection technology on all channels
Compression and Recording
Smart Functions
Network & Ethernet Access
General
| Model | LTD8316D-ET |
| Facial Recognition | |
| Face Image Library | Up to 16 face image libraries HDD damage will not cause data loss in the face image library because the library has been backed up by both HDD and flash memory |
| Face Image Comparison | 4 chs. face image comparison alarm (HD analog camera) |
| Motion Detection 2.0 | |
| Human / Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights Direct search by object or event type is supported |
| VCA | |
| Human / Vehicle Analysis | Up to 8 chs. (advanced model) |
| Facial Detection | |
| Facial Detection and Capture | Face image detection, face image search 4 chs. face image capture |
| Recording | |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264 + /H.264 |
| Encoding Resolution | When 1080p Lite mode is not enabled: 3K lite / 5 MP lite / 4 MP lite / 1080p / 720p / VGA / WD1 / 4CIF / CIF When 1080p Lite mode is enabled: 3K lite / 5 MP lite / 4 MP lite / 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF |
| Frame Rate | Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite @ 12 fps; 4 MP lite @ 15 fps / 1080p Lite @ 20 fps; 720p / WD1 / 4CIF / VGA / CIF @ 20 fps For 5 MP stream access: 5 MP lite @ 12 fps; 4 MP lite @ 15 fps / 1080p Lite @ 20 fps; 720p / WD1 / 4CIF / VGA / CIF @ 20 fps For 4 MP stream access: 4 MP lite @ 15 fps / 1080p Lite @ 25 fps (P) / 30 fps (N); 720p / WD1 / 4CIF / VGA / CIF @ 25 fps (P ) / 30 fps (N) For 1080p stream access: 1080p / 720p @ 15 fps; VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N) For 720p stream access: 720p / VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N) When 1080p Lite mode enabled: 3K lite / 5 MP lite @ 12 fps; 4 MP lite @ 15 fps; 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N) Sub-stream: WD1 / 4CIF @ 12 fps; CIF @ 25 fps (P) / 30 fps (N) |
| Video Bitrate | 32 Kbps to 6 Mbps |
| Dual-stream | Supports main stream or sub stream |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Video and Audio | |
| IP Video Input | 8 chs. (up to 24 chs.), each up to 4 Mbps Support H.265+ / H.265 / H.264+ / H.264 IP cameras |
| Analog Video Input | 16 chs. BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDMI Output | 1 chs., 4K (3840 x 2160) / 30 Hz, 2K (2560 x 1440 ) /6 0Hz, 1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz |
| CVBS Input | PAL / NTSC |
| CVBS Output | 1 ch, BNC (1.0 Vp-p, 75 Ω), Resolution: PAL: 704 x 576, NTSC: 704 x 480 |
| Synchronous Playback | 16 chs. |
| HD-TVI Input | 3K (2960 x 1665) @ 20 fps, 5 MP(2560 x 1944 ) @20 fps, 4 M P(2560 x 1440) @ 30 fps, 4 MP (2560 x 1440) @ 25 fps ,1080p @30 fps, 1080p @ 25 fps,720p @ 30 fps, 720p @ 25 fps |
| VGA Output | 1 ch, 1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz |
| AHD Input | 5 MP (2560 x 1944) @ 20 fps, 4 MP (2560 x 1440) @ 30 fps, 4 MP (2560 x 1440) @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps, 720p @ 30 fps, 720p @ 25 fps |
| HDCVI Input | 5 MP (2880 x 1620) @ 25 fps, 5 MP (2592 x 1944) @ 20 fps, 4 MP (2560 x 1440 )@ 30 fps, 4 MP (2560 x 1440) @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps, 720p @ 30 fps, 720p @ 25 fps |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Output | 1 ch., RCA (Linear, 1 KΩ) |
| Audio Input | 4 ch., RCA (2.0 Vp-p, 1 KΩ), 16-ch via coaxial cable |
| Two-Way Audio | 1 ch., RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Decoding | |
| Decoding Capability | up to 24-ch 1080p @ 30 fps |
| Network | |
| Total Bandwidth | 256 Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, LTS Connect, DNS, DDNS, NTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP |
| Remote Connection | 128 |
| Network Interface | 1 x RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| HDD Connections | 2 x SATA interface, up to 12 TB capacity for each disk |
| Serial Interface | RS-485 (half-duplex) |
| USB Interface | Front panel: 1 x USB 2.0; Rear panel: 2 x USB 3.0 |
| Alarm In / Out | 16 / 4 |
| General | |
| Power Supply | 12 V DC, 3.3 A |
| Consumption | ≤ 40 W |
| Operating Temperature | 14° to 131° F (-10° to 55° C) |
| Operating Humidity | 10% to 90% |
| Dimension (W x D x H) | 15.2 x 12.4 x 2.0 inches (385 x 315 x 52 mm) |
| Weight | ≤ 4.4 lb (2 kg) |
