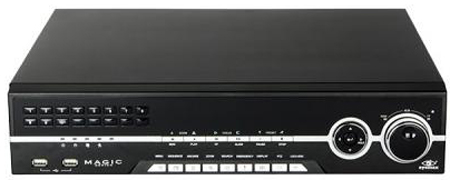

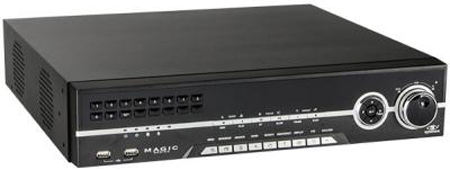

Eyemax XVST-MAGIC-PLS16M 16CH High-end HD-SDI MAGIC Auto detects HD-SDI/960H/Analog/IP

Please Note. This model has been discontinued by manufacturer. Please, use UVST-MAGICU32-8M5 as a replacement. It is fully compatible with the previous model, uses the same User Interface and same Mobile Apps.

What is Magic Technology?
Magic Technology is designed to adopt various video signal types in a single Digital Video Recorder. In other words, any past generation analog CCTV cameras you own, as well as HD-SDI digital CCTV-cameras will work seamlessly with the Magic DVR. Magic technology bridges the gap between analog security and the next generation high definition digital security.
How Magic Plus DVR Works
Upgrade just can't get any easier than this, just unplug all cameras from the old DVR and plug them back into the new Magic DVR, it will just work. Absolutely no training or knowledge is necessary. The best feature about the DVR is that both analog and HD-SDI cameras work in a single DVR. FULL HD security is not a luxury option any more, it is a must for today's security.- Full GUI with alpha blending
- Individual setting of resolution, frame rates and picture quality
- Instant Replay
- Digital Zoom (Live & Playback)
- Mouse Control
- Weekly scheduler with holiday by 10 minutes setting
- Covert, Disable and Private function of cameras
- Motion Detection with 352 area settings
- Relay alarm output
- PTZ control by RS-485
- Daylight Saving Time and Network Time Setting
- Multi User Authority up to 8 Users
- De-interlacer upon live and playback
- 22 languages with full graphic
- Individual Network port setting
- Auto Deletion
- Import and Export the configuration
- Mirroring
- POS Interface
- Dual CODEC engine for independent video transmission
- Interactive setup via network

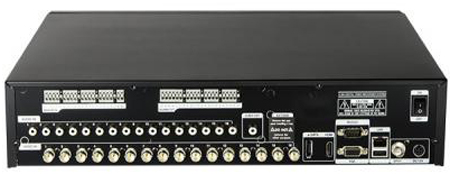

| Model | XVST-MAGIC-PLS16M | |
| Video | ||
| Camera Input | 16 BNC | |
| Individual HD/Analog Selectable | 720p25,30,50,60/1080p25,30,50,60/1080i50,60/Composite/960H/Mixed | |
| Available Source | IP camera/HD-SDI 720p25,30,50,60/HD-SDI 1080p25,30,50,60/1080i50,60/Composite/960H/Mixed/Another DVR | |
| IP Camera Spec | ONVIF 2.3, RTSP, H.264, dual stream use gigabit ethernet hub | |
| IP Camera Number | 4 | |
| IP Camera Restriction | Cannot display HD SPOT, SPOT Cannot setup Private ZONE Cannot attach email image Cannot snapshot live image | |
| Output | 1 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 Composite (Programmable SPOT) | |
| Display | ||
| Speed | Real Time | |
| Resolution (Pixel) | 1280X1024, 1280X720, 1920X1080 | |
| Split Screen | 1,4,6,8,9,13,16 | |
| Main Recording | ||
| CODEC | H.264 | |
| Resolution (Pixel) | 720p, 1080p, 960H, 720H, WCIF, CIF Mixed | |
| Picture Quality | 4 steps (Super, High, Medium, Low) | |
| NTSC Area/PAL Area | 480fps@1080p 400fps@1080p | |
| Dual Recording | ||
| CODEC | H.264 | |
| Condition | Main Recording is 1080p, 720p | |
| Resolution (Pixel) | 480x256 | |
| Playback | ||
| Display | 1,4,6,8,9,13,16 | |
| Search Mode | Calendar, Event ,POS , Panorama, Thumbnail | |
| NTSC Area/PAL Area | 480fps@1080p 400fps@1080p | |
| Fast/Slow Speed | Normal, REW & FF [recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause | |
| Network | ||
| Network Interface | Gigabit Ethernet X 2 | |
| Speed | 180fps@1080p 140fps@1080p | |
| Protocol | TCP/IP, HTTP, DHCP | |
| Application | Windows 7 / 8 (PC Client system& IE)/MAC | |
| Web Browser | Internet Explorer, Safari, Chrome, Firefox | |
| Smart Phone APP | Android, iPhone for Live and Search | |
| Backup | ||
| Interface | USB 2.0 X 2 | |
| Backup Device | External HDD, CD & DVD-RW, Network, Thumb Drive | |
| Other | ||
| Power Consumption | 150W | |
| Operating Temperature | 5 ~40°C(41~104F) | |
| Relative Humidity | Maximum 80% non-condensing | |
| Dimension | 430(W)×420(D)×88(H) | |
| Audio Input/Output | 16RCA/1RCA | |
| Sensor In | 16 (NC, NO Selectable) | |
| Alarm Out | 14 TTL, 2 Relay | |
| Operating System | Embedded Linux OS | |
| The Number of HDD | 4 SATA, 1 eSATA | |
