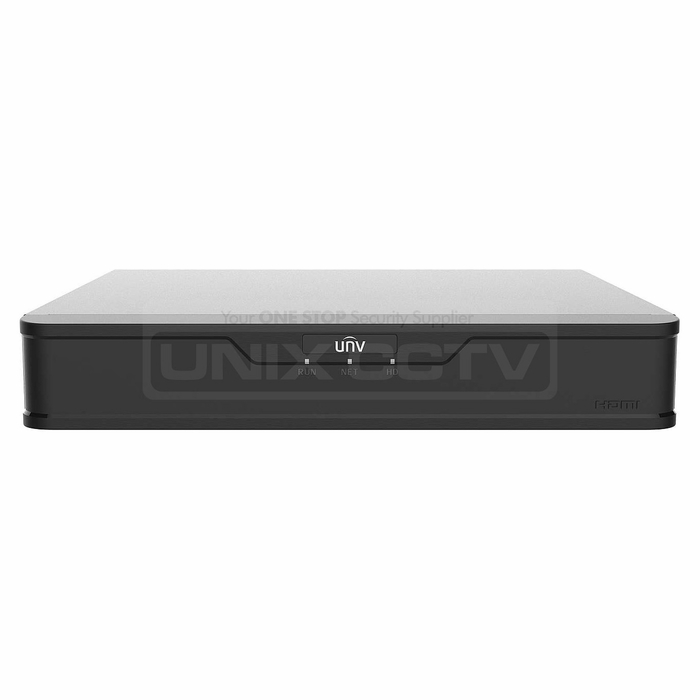

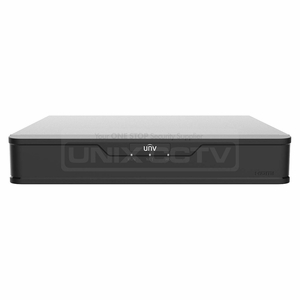

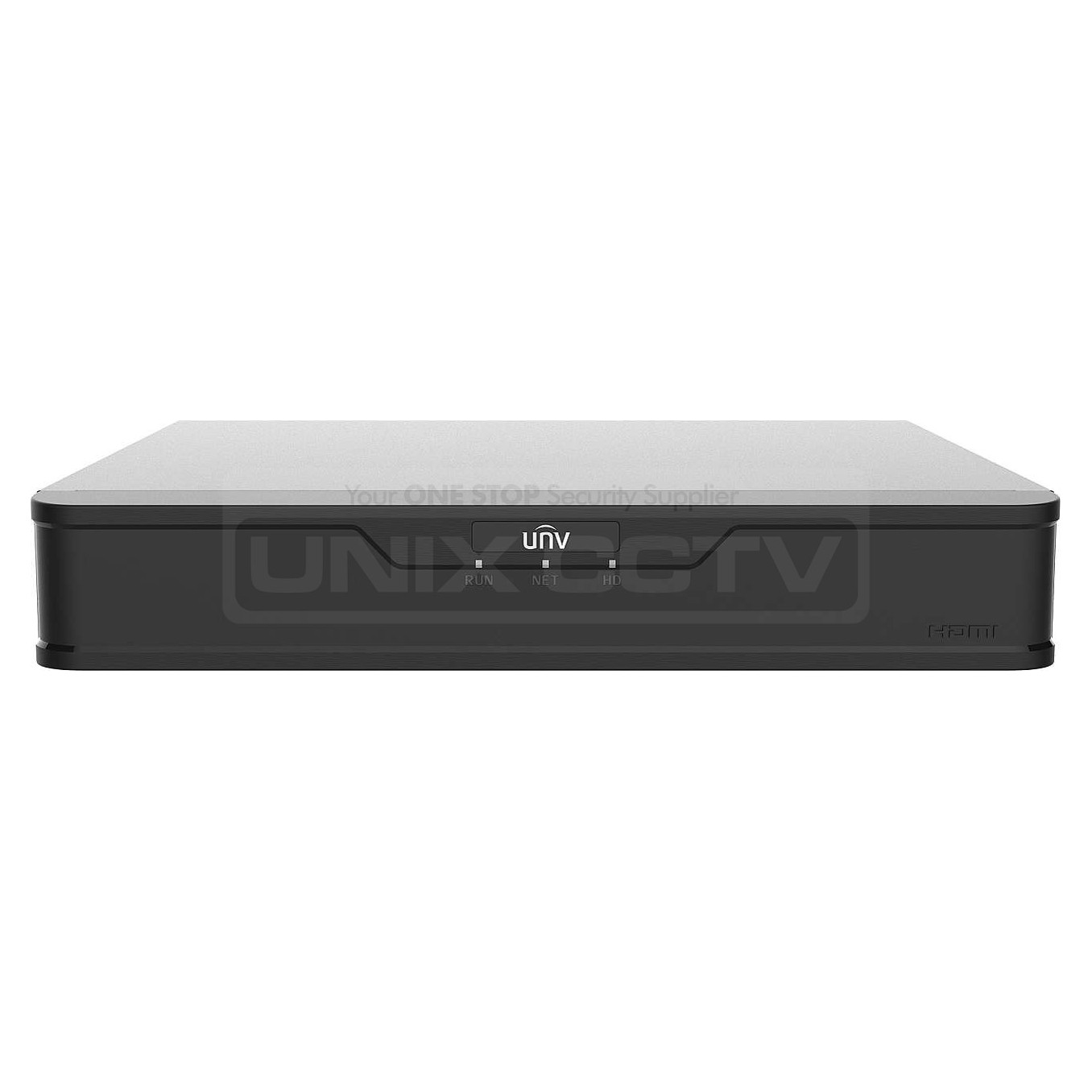

UNV XVR301-08Q3 8CH XVR301-Q3 series 8MP AI DVR System

NDAA Compliant • CVI / AHD / TVI / CVBS • 4CH IP (12CH Max) • Up to 8MP HD Coax • SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area) • Ultra Motion Detection(UMD) • Face Search • Behavior Search • 8-ch(UMD); 2-ch(SIP) by XVR • 1 SATA

Video / Audio Input
IP Video Input	4-ch
Analog Video Input	8-ch, BNC
Max IP Video Input	12-ch
Supported Analog Camera Types	Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 8MP@15fps 3K@20fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input
BNC Audio Input	8-ch, channel audio
RCA Audio Input	1-ch
Video / Audio Output
HDMI Output	HDMI:4K(3840 × 2160) / 30Hz, 1920 × 1080 / 60Hz, 1920 × 1080 / 50Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz
VGA Output	VGA:1920 × 1080 / 60Hz, 1920 × 1080 / 50Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz
BNC Video Output	1-ch
RCA Audio Output	1-ch
Live View Display	HDMI / VGA: 1 / 4 / 6 / 8 / 9 / 16
Encoding / Decoding
Recording Resolution	8MP Lite / 5MP Lite / 4MP Lite / 1080P / 720P / D1
Recording Frame Rate	Main stream: 8MP Lite@8fps Sub stream: D1@8fps Main stream: 3K Lite@12fps Sub stream: D1@12fps Main stream: 5MP Lite@12fps Sub stream: D1@12fps Main stream: 4MP Lite@15fps Sub stream: D1@15fps Main stream: 1080P@15fps Sub stream: D1@15fps Main stream: 720P@30fps Sub stream: D1@30fps
Audio Sample Rate	8 KHz, 16 bit per channel
Audio Bit Rate	64Kbps per channel
Decoding Capability	Analog: 8 × 8MP Lite@8, 8 × 3K Lite@12, 8 × 5MP Lite@12, 8 × 4MP Lite@15, 8 × 1080P@15 IP: 1 × 8MP@30, 2 × 4MP@30, 4 × 1080P@30
Two-way Audio
Two-way Audio	1-ch, RCA(Using the audio input and output)
Analog Snapshot
FTP / Schedule / Event Snapshot	Schedule / FTP / Event snapshot:8-ch snapshot, up to 704*576 resolution
Network
Incoming Bandwidth	40Mbps (Up to 56Mbps after all analog channel conversion)
Outgoing Bandwidth	64Mbps
Remote Users	128
Protocols	TCP / IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, NTP
Browser (Plugin)	Windows: IE (IE10/ 11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above)
Smart
Analog Smart by XVR	SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection(UMD)
VCA Search
Smart Functions by XVR	8-ch(UMD), 2-ch(SIP)
Alarm
General Alarm	Motion
Alert Alarm	IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording / Snapshot Abnormal
GUI Language
GUI Language	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
HardDisk
SATA	1 SATA interface
Capacity	Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature)
External Interface
Network Interface	1 RJ45 10M / 100M self-adaptive Ethernet Interface
USB	Rear panel: 2 x USB2.0
RS485	1
Alarm In	4-ch
Alarm Out	1-ch
Power Supply	DC 12V / 2A
Working Environment
Working Temperature	−10 °C ~ 55 °C (14 °F ~ 131 °F )
Working Humidity	≤ 90% RH(non-condensing)
Power Consumption (without HDD)	≤ 10W
Dimensions
Weight(withoutHDD)	≤1.1 Kg ( 2.42lb )
Dimensions	260mm × 226mm × 47mm (10.2" × 8.9" × 1.8")
Certification
Certification	CE, FCC, UL, RoHS, WEEE
CE	EN 55032, EN 61000 ~ 3-3, EN IEC 61000 ~ 3-2, EN 55035
FCC	Part15 Subpart B
