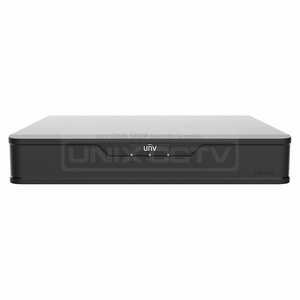

UNV XVR301-04G3 4CH XVR301-G3 series 5MP DVR System
Digital Video Recorders - 4-in-1 and 5-in-1 HD-TVI, HD-CVI, A-HD, CVBS, IP
4 Channel Video CCTV DVR Units 4-in-1 and 5-in-1
UNV XVR301-04G3 4CH XVR301-G3 series 5MP DVR SystemNDAA Compliant • CVI / AHD / TVI / CVBS • 2CH IP (6CH Max) • Up to 5MP HD Coax • Ultra Motion Detection(UMD) • 4-ch(UMD) by XVR • 1 SATA
- Support H.265/H.264 video formats
- Support audio over coaxial cable(only for TVI cameras)
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 4/8/16-channel BNC input
- Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
| Video / Audio Input | |
|---|---|
| IP Video Input | 2-ch |
| Analog Video Input | 4-ch, BNC |
| Max IP Video Input | 6-ch |
| Supported Analog Camera (TVI) | 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps |
| Supported Analog Camera (CVI) | 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps |
| Supported Analog Camera (AHD) | 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps |
| Support CVBS input | Yes |
| RCA Audio Input | 1-ch |
| Video / Audio Output | |
| HDMI Output | 1920 × 1080 / 60Hz, 1920 × 1080 / 50Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz |
| VGA Output | 1920 × 1080 / 60Hz, 1920 × 1080 / 50Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz |
| RCA Audio Output | 1-ch |
| Live View Display (HDMI/VGA) | 1 / 4 / 6 / 8 / 9 |
| Encoding / Decoding | |
| Recording Resolution | 5MP Lite / 4MP Lite / 1080P / 720P / D1 |
| Recording Frame Rate (Main stream) | 5MP Lite@12fps Sub stream: D1@12fps 4MP Lite@15fps Sub stream: D1@15fps 1080P@15fps Sub stream: D1@15fps 720P@25fps Sub stream: D1@25fps |
| Audio Sample Rate | 8 KHz, 16 bit per channel |
| Audio Bit Rate | 64Kbps per channel |
| Decoding Capability (Analog) | 2 × 5MP Lite@12 2 × 4MP Lite@15 2 × 1080P@15 |
| Decoding Capability (IP) | 1 × 4MP@30 2 × 1080P@30 |
| Two-way Audio | |
| Two-way Audio | 1-ch, RCA(Using the audio input and output) |
| Analog Snapshot | |
| FTP / Event Snapshot | 4-ch snapshot up to 704*576 resolution |
| Schedule snapshot | not supported |
| Network | |
| Incoming Bandwidth | 16Mbps (Up to 24Mbps after all analog channel conversion) |
| Outgoing Bandwidth | 48Mbps |
| Remote Users | 128 |
| Protocols | TCP / IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, NTP |
| Browser(Plugin) | IE (IE10/ 11) Firefox (version 52.0 and above) Chrome (version 45 and above) Edge (version 79 and above) |
| Smart | |
| Analog Smart by XVR | Ultra Motion Detection(UMD) |
| Smart Functions by XVR | 4-ch(UMD) |
| Alarm | |
| General Alarm | Motion |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording / Snapshot Abnormal |
| GUI Language | |
| GUI Language | 20 languages: English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature) |
| External Interface | |
| Network Interface | 1 RJ45 10M / 100M self-adaptive Ethernet Interface |
| USB | Rear panel: 2 x USB2.0 |
| Power Supply | DC 12V / 2A |
| Working Environment | |
| Working Temperature | −10 °C ~ 55 °C (14 °F ~ 131 °F ) |
| Working Humidity | ≤ 90% RH(non-condensing) |
| Power Consumption (without HDD) | ≤ 8W |
| Dimensions | |
| Weight (without HDD) | ≤1.1 Kg ( 2.42lb ) |
| Dimensions | 260mm × 226mm × 47mm (10.2" × 8.9" × 1.8") |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000 ~ 3-3, EN IEC 61000 ~ 3-2, EN 55035 |
| FCC | Part15 Subpart B |
