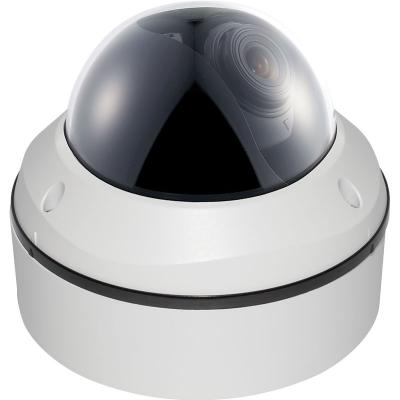

Eyemax XVL-204V Storm Outdoor Dome Superdome IR Camera with ICR and Dual Power

Model	XVL-204V
Resolution	HD-SDI(1080P, 720P) / 1000 TV Line Over
Sensor	1/3? SONY CMOS
Total Pixels	2010(H) X 1108(V) = 2.2M Pixel
Effective Pixels	1944(H) X 1092(V) = 2.1M Pixel
Scanning System	Progressive Scan
S/N (Y Signal)	More than 52 dB(AGC Off)
Video Output	SMPTE292M (HD-SDI) / CVBS : 1.0Vp-p (75?)
Min. Illumination	1 Lux at F1.2 / 0.1 Lux (B/W)
White Balance	AUTO / AUTO EXT / PUSHING / MANUAL
Electronic Shutter Speed	AUTO / MANUAL(1/30sec ~ 1/30,000sec)
Brightness	Adjustable (0~20 Step)
Sens-up	OFF / ?2 / ?3 / ?4
DNR	OFF / LOW / MIDDLE / HI
WDR / BLC	OFF / Single scan WDR / BLC
HLM	OFF / SET
ACE	OFF / ON
Day & Night	AUTO (Day <-> Night TIME Change), COLOR, B/W
Privacy	OFF / ON (28 Zone)
Motion Detection	OFF / ON
D. Zoom	0 ~ ?112
FLIP	OFF / ON
FREEZE	OFF / ON
Language	ENGLISH
Sharpness	ADJUSTABLE (0~10 STEP)
Mirror	ON / OFF
COMM.	RS-485(PELCO-D)
Operating Temperature / Humidity	-10?C~+50?C (14?F ~ 122?F) / 30% ~ 80% RH
Storage Temperature / Humidity	-20?C~+60?C (-4?F ~ +140?F) / 20% ~ 90% RH
Power	DC 12V / AC 24V
HD-SDI	300 ~ 450ft (100 ~ 150m)
Transmission range	Max transmission range is depends on the cable manufacturer and the installation environment.

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Tell A Friend

bookmark site!

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

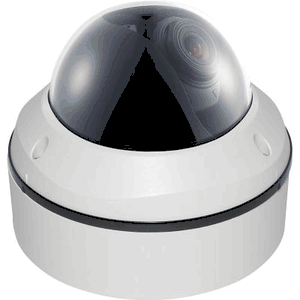

Eyemax XVL-204V Storm Outdoor Dome Superdome IR Camera with ICR and Dual Power
