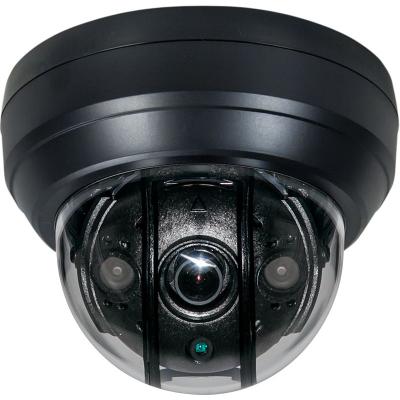

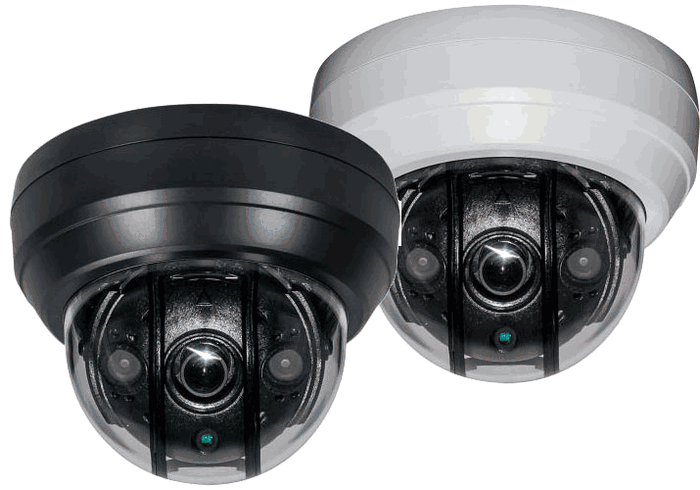

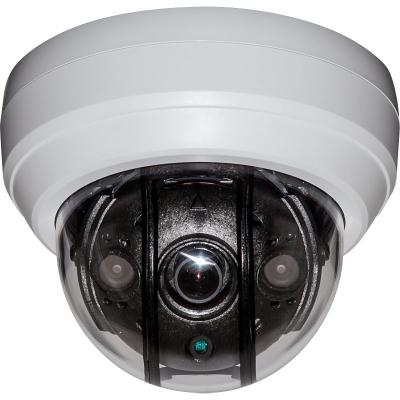

Eyemax XDR-2522 HD-SDI 1080p Superdome IR Dome Camera

Additional View

Eyemax XDR-2522 HD-SDI 1080p Superdome IR Dome Camera

Model	XDR-2522
Resolution	HD-SDI (1080p, 720p) / over 1000 TV Line
Sensor	1/2.9 inch Sony CMOS
Total Pixels	2000(H) ? 1241(V) = 2,482,000
Effective Pixels	1944(H) ? 1092(V) = 2,122,648
Scanning System	Progressive
S/N (Y Signal)	More then 52 dB (AGC Off)
Video Output	SMPTE292M (HD-SDI)
Min. Illumination	0 Lux at IR On
White Balance	Auto / Auto Ext / Preset / Manual
Shutter	Auto / Manual (1/30sec ~ 1/60,000sec)
Brightness	Adjustable (0~20 Step)
Sens Up	Off / ?2~8
DNR	Off / Low / Middle / High
WDR / BLC	Off / WDR / BLC
HLM	Off / Set
ACE	Off / Low / Middle / High
Day & Night	Auto ( Day <--> Night time change) Color , B/W, Extern, MDIR
Privacy	Off / On (16 Zone)
Motion	Off / Set
Digital Zoom	up to ?127
Flip	Off / On
Freeze	Off / On
Language	English
Sharpness	Adjustable (0~10 Step)
Defog	Off / Set
Communication Port	RS-485 ( PELCO-D )
Smart IR	Adjustable (0~20 Step)
Operating Temp / Humidity	-10?C ~ +50?C(14?F ~ 122?F) / 30%~80% RH
Storage Temp / Humidity	-20?C ~ +60?C(-4?F ~ 140?F) / 20%~90% RH
Power	DC 12V
Case	Anti-IR Reflection SUPERDOME? Case
Dimensions	4.72?(?) ? 3.63?(H) / 120mm(?) ? 92.3mm(H)

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Tell A Friend

bookmark site!

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

Additional View

Eyemax XDR-2522 HD-SDI 1080p Superdome IR Dome Camera

SKU#

:

XDR-2522

Regular Price

:

$149.95

Sale Price

:

$89.95

You Save

$60.00(40.01% )

Availability

:

Usually ships the next business day

Power Supply

:

Camera Color

:

Quantity

:
