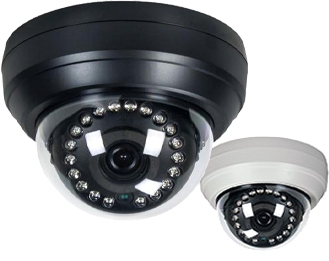

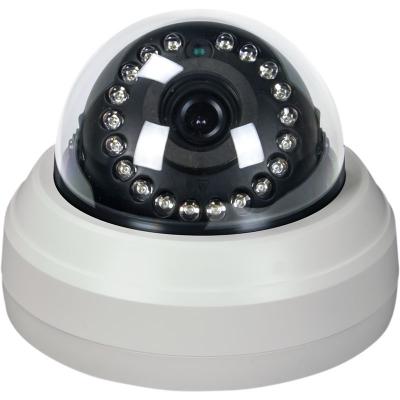

Eyemax XDR-222F HD-SDI 1080p Indoor IR Superdome Camera with ICR

Additional View

1/3" SONY CMOS
HD-SDI(1080p, 720p) / High resolution (1000 TV line over)
HD-SDI(High Definition Serial Digital Interface) / 0 lux at IR on (IR LED 20pcs)
OSD Controlled / Smart IR / MDIR (Motion Detection IR) / WDR (Wide Dynamic Range)
DNR (Digital Noise Reduction) / True Day & Night(lCR) / Easy Installation
Fixed Lens 4.3mm

Eyemax XDR-222F HD-SDI 1080p Indoor IR Superdome Camera with ICR

Model	XDR-222F
Resolution	HD-SDI(1080p, 720p) / 1000 TV line over
Sensor	1/2.9 " SONY CMOS
Total Pixels	2000(H) ? 1241(V) = 2.4M Pixel
Effective Pixels	1944(H) ? 1092(V) = 2.1M Pixel
Scanning System	Progressive
S/N (Y signal)	More than 52 dB (AGC Off)
Video Output	SMPTE292M (HD-SDI)
Min.Illumination	0 lux at IR on
White Balance	Auto / Auto EXT / Pushing / Manual
Electronic Shutter Speed	Auto / Manual (1/30sec ~ 1/60,000sec)
Brightness	Adjustable (0 ~ 20 Step)
SENS_UP	Off / ?2 / ?3 / ?4
DNR	Off / Low / Middle / Hi
WDR / BLC	Off / WDR / BLC
HLM	Off / Set
ACE	Off / On
Day & Night	Auto (Day <--> Night time change) , Color , B/W, Extern, MDIR
Privacy	Off / On (32 Zone)
Motion Detection	Off / On
D.ZOOM	0 ~ ?127
FLIP	Off / On
FREEZE	Off / On
Language	English
Sharpness	Adjustable (0 ~ 10 Step)
Mirror	On / Off
COMM.	RS-485(PELCO-D)
Operating Temperature / Humidity	14?F~122?F (-10?C~+50?C) / 30%~80% RH
Storage Temperature / Humidity	-4?F~+140?F (-20?C~+60?C) / 20%~90% RH
Power	DC 12V Only
Distance	300 ~ 450ft (100 ~ 150m)
Transmission range	The distant difference is occurred according to cable option and other circumstances (based on RG59: 100rv)
