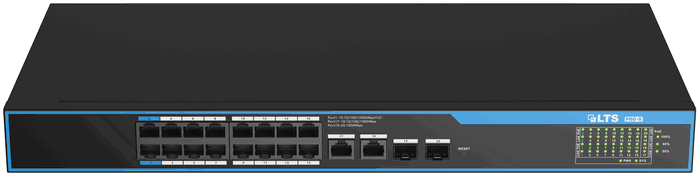

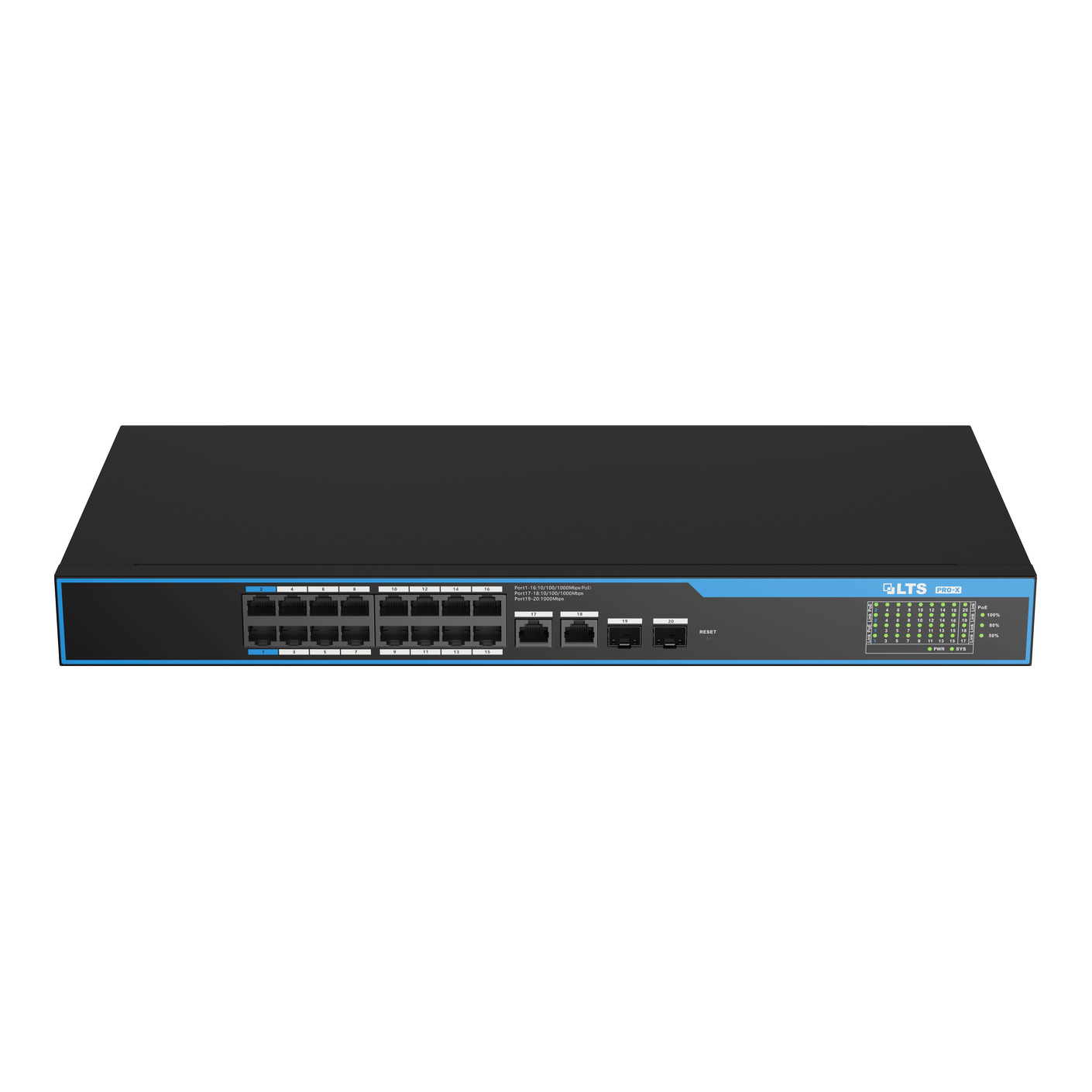

XCPOE-SW1602G LTS Pro-X, 20-Port Cloud Managed Desktop Switch with 16-Port PoE

Model	XCPOE-SW1602G
General
PoE Ports	16 x 10/100/1000Mbps PoE/PoE+/PoE++ ports
Uplink Ports	2 x 100/1000Mbps SFP ports and 2 x 10/100/1000Mbps RJ-45 ports
PoE Standards	IEEE802.3af; IEEE802.3at(PoE+); IEEE802.3bt(PoE++)
Network Standards	IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab;IEEE802.3z
PoE Ports Power	Ports 1-2 ≤ 90 W(PoE+), Port 3-16 ≤ 30 W(PoE+)
Total Power Budget	240W
PoE Pin Assignment	1,2,4,5 (V+) ,3,6,7,8 (V-)
Performance
Switching Capacity	40 Gbps
Packet Forwarding Rate	29.8 Mpps
MAC Table Capacity	8000
Packet Buffer Size	4.1 Mbit
MTBF	86.94 years
Feature
Layer	Layer 2
Port Configuration	Port rate configuration, flow control, and ports enabling
PoE Watchdog	Ports 1 to 16 auto detect and restart the cameras that do not respond.
Long Distance Transmission	Up to 820 ft./250m at 10Mbps on PoE ports
VLAN	Port based VLAN
VLAN Number	32
IEEE 802.3x Flow Control	Support
Storm Control	Storm control of unknown unicast, multicast and broadcast
Port Mirroring	Support
Port Isolation	Support
LLDP	Support
Port Isolation	Support
DHCP Function	DHCP Client
Physical & Environmental
Power Supply	100-240 VDC, 47-63 Hz, max 4 A, internal power supply
Power Consumption in Idle	8.3W
Power Consumption in Total	265 W
Surge Protection	Power port: 4 kV/2 kV Telecom port: 8 kV
Operating Temperature	�10 °C to +55 °C(+14 °F to +131 °F)
Storage Temperature	�40 °C to +70 °C(�40 °F to +158 °F)
Operating Humidity	5%�95% (RH), non-condensing
Storage Humidity	5%�95% (RH), non-condensing
Dimensions	440 mm x 220 mm x 44 mm (17.32" x 8.66" x 1.73") (L� W x H)
Net Weight	2.37 kg (5.21 lb)
Gross Weight	3.02 kg (6.64 lb)
Shell	Metal material
Certifications	FCC: Part 15 Subpart B

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Tell A Friend

bookmark site!

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

XCPOE-SW1602G LTS Pro-X, 20-Port Cloud Managed Desktop Switch with 16-Port PoE

SKU#

:

XCPOE-SW1602G

Regular Price

:

$399.95

Sale Price

:

$319.95

You Save

$80.00(20.00% )

Availability

:

Usually ships the next business day

Quantity

:
