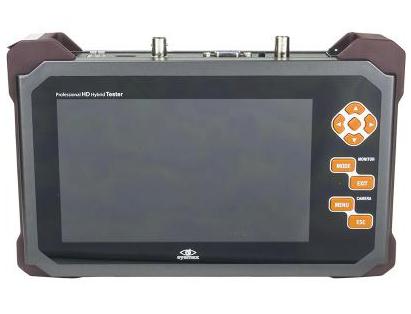

Unix XA-TM-LFC07HDR Hybrid Portable HD-SDI 7" Test Monitor. HD-SDI Service Monitor.

XA-TM-LFC07HDR is a cost effective portable test monitor which supports HD-SDI, HDMI, VGA and CVBS inputs. It is basically useful for adjusting the viewing angle and the focus of the camera and checking the video from DVR or NVR using HDMI and VGA inputs. And it supports various features such as the RS-485 communication, power output to the camera. Using XA-TM-LFC07HDR, sole installer can check every part of CCTV system alone and complete a task alone when installing CCTV product.
- 7 Inch high resolution TFT-LCD digital panel (LED Back Light) Support Inputs - HD-SDI Input(~3G)
- Guideline indicator to adjust the camera angle
- Supplying power to the camera with 12VDC/500mA
- P/T/Z control (RS-485) / RS-485 Analyzer function
- Analog Pattern Generator
- Video signal distribution (Loop Through) select switch(HI-Z/75?)
- High capacity Li-polymer battery lasting up to 3~4 hours
- HDMI Input(~1080p/60Hz)
- VGA Input(~1600x1200/60Hz)UXGA
- CVBS Input
| Model | XA-TM-LFC07HDR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| LCD | Display Resolution | 1024 ? (RGB) ? 600 | |
| Size | 7 inch(diagonal) | ||
| Pixel Pitch | 0.150mm(H) ? 0.150mm(V) | ||
| Brightness(cd) | Typ.: 250 | ||
| Contrast Ratio | Typ.: 500 | ||
| Viewing Angle | Horizontal | 75? | |
| Vertical | 75? | ||
| Video | Input | HDMI | ~1080p 60 |
| HD-SDI | ~3G | ||
| CVBS | NTSC/PAL 1.0Vp_p, / Coaxial communication | ||
| XVGA | 1600?1200, 60Hz | ||

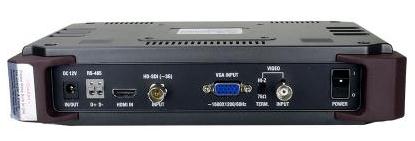

| Connection Port | HDMI Input | HDMI C Type F | |
| HD-SDI Input | BNC-F | ||
| VGA Input | D-SUB 15Pin RIGHT ANGLE TYPE | ||
| CVBS Input | BNC-F | ||
| RS-485 | Pan/Tilt/Zoom/Focus Control / OSD Control | ||

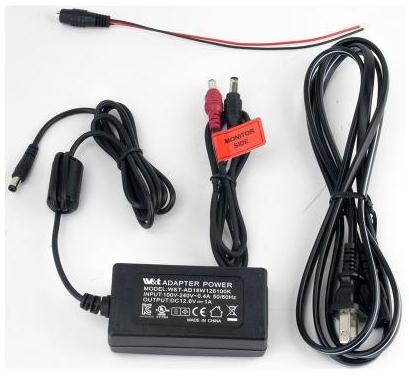

| Power | Input | DC 12.6V(with exclusive charger) | |
| Color | Dark Gray | ||
| Battery | Li-Polymer: 11.1V, 2200mA x 1 / last up to 3h (built-in surge protection circuit) |
||
| Power consumption | HDMI Input | 6.5W | |
| HD-SDI Input | 7.5W | ||
| VGA Input | 6.5W | ||
| CVBS Input | 6.5W | ||
| Temperature / Humidity | 0?C ~ +50?C / 0% ~ 80% | ||

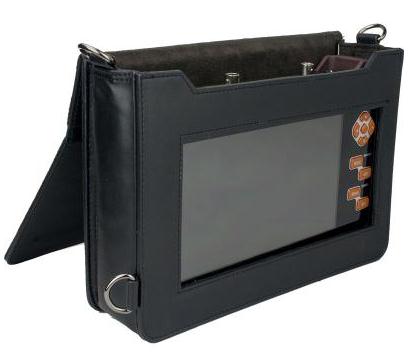

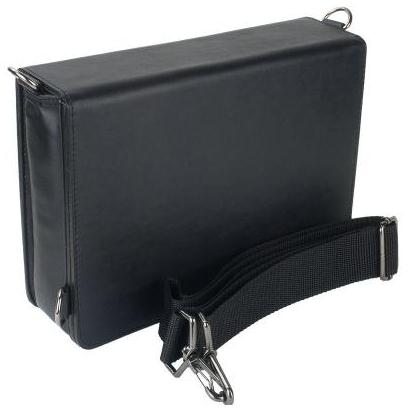

| Weight | SET : 920g , Leather bag : 640g, Total : 1.6kg | ||
| Dimensions(mm) | 240.9(W) ? 153.4(H) ? 50(D) | ||
