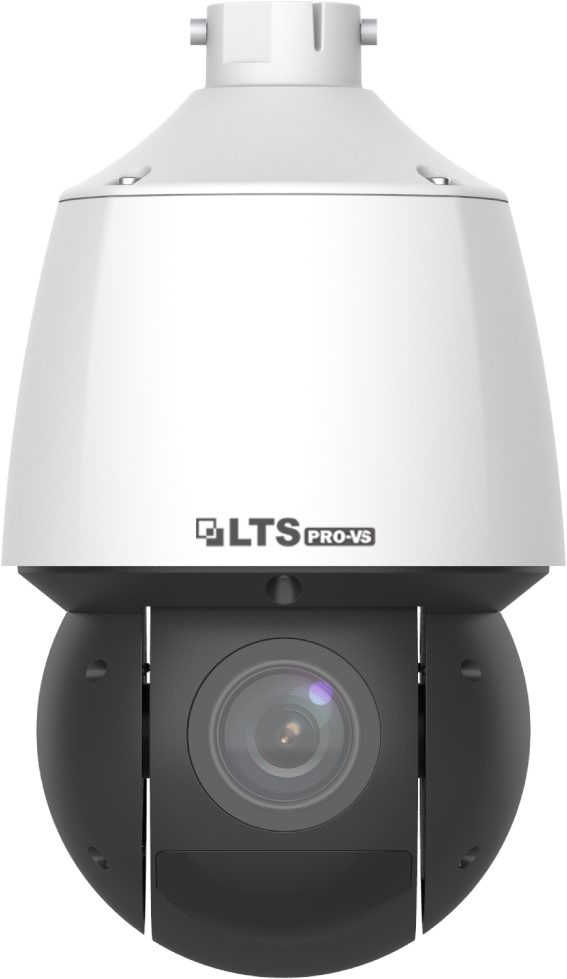

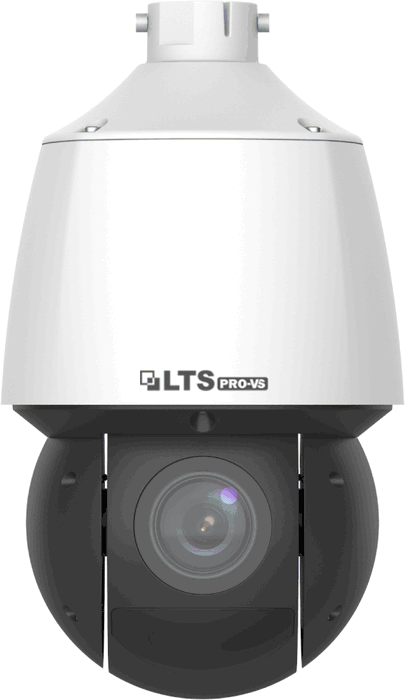

LTS VSPTZIP424X25WIR Pro-VS 4MP 25x Network PTZ Dome Camera

SKU#

:

VSPTZIP424X25WIR

Regular Price

:

$749.95

Sale Price

:

$649.95

You Save

$100.00(13.33% )

Availability

:

Usually ships the next business day

Pre-Made Cat5e Cable

:

Power Supply

:

Quantity

:

LTS VSPTZIP424X25WIR Pro-VS 4MP 25x Network PTZ Dome Camera

Model

VSPTZIP424X25WIR

Camera Series

Pro-VS

Camera Resolution

4MP

Camera Technology

IP / Network

Camera Housing

PTZ

Camera

Sensor

1/2.8", 4.0 megapixel, progressive scan, CMOS

Min. Illumination

Colour: 0.003 Lux (F1.5, AGC ON)
0 Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

WDR

120dB

S/N

>56dB

Lens

Lens type

4.8 ~ 120mm, AF automatic focusing and motorized zoom lens

Digital Zoom

Optical Zoom

Iris

Auto; F1.5 ~ F3.8

Angle of View (H)

52.20°~2.74°

Angle of View (V)

30.81°~1.54°

Angle of View (O)

64.20°~3.23°

DORI

DORI Distance

Lens (mm)	Detect (m)	Observe (m)	Recognize (m)	Identify (m)
4.8	119.3(391.2ft)	47.7(156.5ft)	23.9(78.2ft)	11.9(39.1ft)
120	2475.0(8120.1ft)	990.0(3248.0ft)	495.0(1624.0ft)	247.5(812.0ft)

Illuminator

IR Range

Up to 100m (328 ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

Frame Rate

Main Stream: 4MP(2688x1520),Max 30fps;
Sub Stream: 2MP (1920x1080), Max 30fps;
Third Stream: D1 (720x576), Max 30fps;

Video Bit Rate

128 Kbps~16 Mbps

U-code

Support

ROI

Support

Video Stream

Triple streams

OSD

Up to 8 OSDs

Privacy Mask

24 areas, up to 4 areas per scene


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital Noise Reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise

HLC

Support

BLC

Support

Defog

Digital Defog

Intelligent

Smart Intrusion Prevention

Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection

Face Capture

Support

People Counting

Support

Events

Basic Detection

Motion detection, Audio detection, Tampering Alarm

Auto Tracking

Support

General Function

Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression

G.711U,G.711A

Audio Bitrate

64 Kbps

Two-way Audio

Support

Suppression

Support

Sampling Rate

8 kHz

Storage

Edge Storage

Micro SD, up to 256 GB

Network Storage

ANR,NAS(NFS)

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API,SDK

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Pan & Tilt

Pan Range

360° (endless)

Pan Speed

0.1°/s ~ 200°/s
Preset speed: 240°/s

Tilt Range

-15° ~ 90° (auto reverse)

Tilt Speed

0.1°/s ~ 120°/s
Preset speed: 200°/s

Number of Presets

1024

Patrol

Preset patrol, Route patrol, Recorded patrol

Patrol Stay Time

15s~1800s

Preset Image Freeze

Support

Home Position

Support

Interface

Audio I/O

1/1

Alarm I/O

2/1

Serial Port

1 RS485

Built-in Mic

N/A

Built-in Speaker

N/A

WIFI

N/A

Network

1 x RJ45 10M/100M Base-TX Ethernet

Video Output

1 BNC

Certification

EMC

FCC Part 15
EN 55032:2015
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3-2013

Safety

IEC 62368-1
EN 62368-1
UL 60950-1

Environment

CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

Protection

Ingression protection: IP67 (IEC 60529-2013)
Vandal resistant: IK10 (IEC 62262:2002)

General

Power

DC 12V(±25%,3A), PoE+(IEEE 802.3at)
Power consumption: Max 21W

Power Interface

Φ 5.5mm coaxial power plug

Dimensions (Φ x H)

Φ166 x 295mm (Φ6.5" x 11.6")

Weight

3.05kg(6.72lb)

Working Environment

-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)

Surge Protection

6KV

Vandal Resistant

IK10

Ingress Protection

IP67

Reset Button

Support
