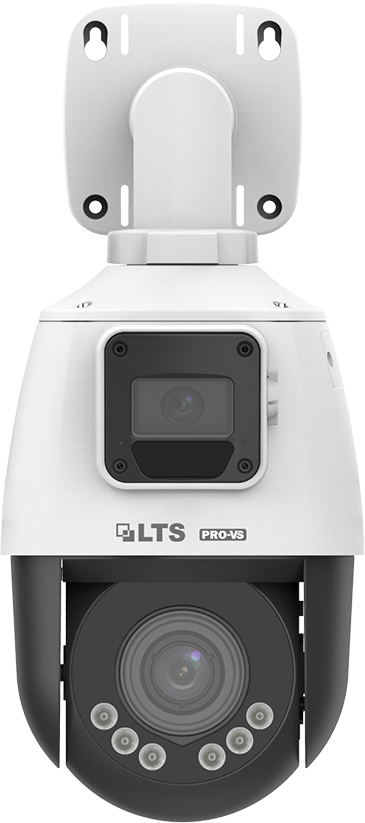

LTS VSPTZIP3122WSL-X4IR 2x 2 MP Dual-lens Ultra-low Light Network PTZ camera

Model

VSPTZIP3122WSL-X4IR

Camera Series

Pro-VS

Camera Resolution

2MP

Camera Technology

IP / Network

Camera Housing

PTZ

Camera

Sensor

1/2.8", 2MP, CMOS

Min. Illumination

Panorama: Color:0.002 lux (F1.6, AGC ON); 0 lux with IR
Detail: Color:0.002 lux (F1.6, AGC ON); 0 lux with IR/Warm light

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

Angle Adjustment

Panorama: Pan: 0° to 360°, tilt: 18°± 5°, rotate: N/A
Detail: N/A

WDR

Panorama: 120dB
Detail: DWDR

S/N

> 52dB

Lens

Lens type

Panorama: 2.8mm@F1.6
Detail: 2.8~12mm@F1.6, AF automatic focusing and motorized zoom lens

Digital Zoom

Panorama: N/A
Detail: 4X

Optical Zoom

Panorama: N/A
Detail: 4X

Iris

Fixed aperture

Angle of View (H)

Panorama: 102.4°
Detail: 106.6° ~ 30.6°

Angle of View (V)

Panorama: 54.9°
Detail: 56.5° ~ 17.4°

Angle of View (O)

Panorama: 133.1°
Detail: 138.6° ~ 37.6°

DORI

DORI Distance

Lens (mm)	Detect (m)	Observe (m)	Recognize (m)	Identify (m)
2.8(Panorama)	43.4(142.5ft)	17.4(57.0ft)	8.7(28.5ft)	4.3(14.3ft)
2.8(Detail)	43.4(142.5ft)	17.4(57.0ft)	8.7(28.5ft)	4.3(14.3ft)
12(Detail)	162.9(534.6ft)	65.2(213.8ft)	32.6(106.9ft)	16.3(53.5ft)

Illuminator

IR Range

Panorama: Up to 10m (32.8 ft)
Detail: Up to 50m (164.0 ft)

Warm Light Range

Panorama: N/A
Detail: Up to 10m (32.8 ft)

Wavelength

850nm (IR)

Light On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

Frame Rate

Main Stream: 1080P (1920x1080),Max 25fps
Sub Stream: 720P (1280x720), Max 25fps

Video Bit Rate

128 Kbps~16 Mbps

U-code

Support (Main stream)

ROI

Up to 8 areas

Video stream

Dual streams

OSD

Up to 4 OSDs

Privacy Mask

24 areas, up to 4 areas per scene


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Flip Vertical/Flip Horizontal/180°

HLC

Support

BLC

Support

Defog

Digital defog

Intelligent

Smart Intrusion Prevention

Panorama: Support false alarm filtering: Cross line detection, Intrusion detection, Enter area detection, Leave area detection
Detail: N/A

Linkage Function

Panorama: N/A
Detail: Support, Triggered by fixed lens via smart intrusion prevention function to track target

Events

Basic Detection

Audio detection

General Function

Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression

G.711U, G.711A

Audio Bitrate

64 Kbps

Two-way Audio

Support

Suppression

Support

Sampling Rate

8 kHz

Storage

Edge Storage

Micro SD, up to 256 GB

Network Storage

ANR,NAS(NFS)

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS

Compatible Integration

ONVIF (Profile S, Profile G), API, SDK

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Web Browser

Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Pan & Tilt

Pan Range

Panorama: N/A
Detail: 0° ~ 345°

Pan Speed

Panorama: N/A; Preset speed: N/A
Detail: 1°/s ~ 50°/s; Preset speed: 50°/s

Tilt Range

Panorama: 18° ± 5°
Detail: -10° ~ 100°

Tilt Speed

Panorama: N/A; Preset speed: N/A
Detail: 1°/s ~ 40°/s; Preset speed: 40°/s

Number of Presets

255

Preset Patrol

16 patrol routes, up to 64 presets for each route

Patrol Stay Time

1000s~1800s

Home Position

Support

Interface

Built-in Mic

Support (Mic x 2)

Built-in Speaker

Support

Network

1 x RJ45 10M/100M Base-TX Ethernet

Certification

EMC

FCC CFR 47 Part 15
EN 55032:2015
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3-2013

Safety

IEC 62368-1
EN 62368-1
UL 62368-1

Environment

CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

General

Power

DC12V, PoE+(IEEE 802.3at)
Power consumption: MAX 14W

Power Interface

Φ 5.5mm coaxial power plug

Dimensions (Φ x H)

Φ134 x 302 x 192mm (Φ5.3" x 11.9" x 7.6")

Weight

1.03kg (2.27lb)

Working Environment

-20°C ~ 60°C(-4°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Storage Environment

-30°C ~ 70°C(-22°F ~ 158°F), Humidity: ≤95% RH (non-condensing)

Surge protection

2KV

Reset button

Support

Protection

Ingress Protection: IP66
Vandal Resistant: N/A
