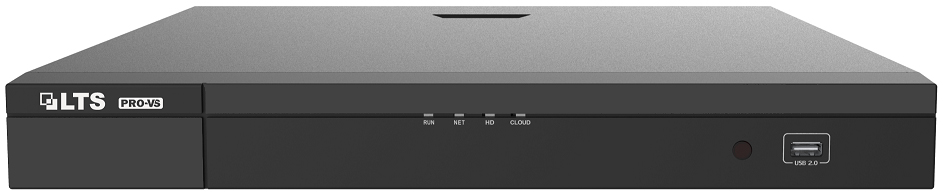

LTS VSN7216-P16 16 Channel NVR with 16 Channel Built-in PoE

Model	VSN7216-P16
Video/Audio Input
IP Video Input	16-ch
Two-way Audio Input	1-ch, RCA
Network
Incoming Bandwidth	160Mbps
Outgoing Bandwidth	64Mbps
Remote Users	128
Protocols	P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output	HDMI: 4K (3840x2160@30), 1920x1080@60, 1920x1080@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080@60, 1920x1080@50, 1280x1024@60, 1280x720@60, 1024x768@60
Recording Resolution	8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Synchronous Playback	16-ch
Corridor Mode Screen	3/4/5/7/9/10/12/16
Decoding
Decoding format	Ultra265/H.265/H.264
Liveview/Playback	8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30
Hard Disk
SATA	2 SATA interface
Capacity	up to 10TB for each disk
External Interface
Network Interface	1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface	Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
Alarm In	4-ch
Alarm Out	1-ch
PoE
Interface	16 independent 100Mbps PoE network interfaces
Max Power	Max 30W for single port Max 240W in total
Supported Standard	IEEE 802.3af/at
General
Power Supply	100 ~ 240 V AC Power Consumption: ≤10W(without HDD)
Working Environment	-10℃ ~ + 55℃ (+14℉ ~ +131℉), Humidity ≤ 90% RH (non-condensing)
Dimensions (W�D�H)	380mm x315mm x 53mm (14.9" x 12.4" x2.1")
Weight (without HDD)	≤2.6kg (5.29lb)

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Tell A Friend

bookmark site!

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

LTS VSN7216-P16 16 Channel NVR with 16 Channel Built-in PoE

SKU#

:

VSN7216-P16

Regular Price

:

$599.95

Sale Price

:

$399.95

You Save

$200.00(33.34% )

Availability

:

Usually ships the next business day
