LTS VSIP3C52W-28MA Pro-VS Network Turret IP Camera 5 MP - 2.8mm
LTS VSIP3C52W-28MA Pro-VS Network Turret IP Camera 5 MP - 2.8mm
LTS VSIP3C52W-28MA Pro-VS Network Turret IP Camera 5 MP - 2.8mm
SKU#
:
VSIP3C52W-28MA
Regular Price
:
$
199.95
Sale Price
:
$
169.95
You Save
$30.00(15.00% )
Availability
:
Usually ships the next business day
Pre-Made Cat5e Cable
:
No Cable
50ft (+14.95)
100ft (+29.95)
125ft (+34.95)
200ft (+59.95)
Power Supply
:
No Power Supply, Have PoE Switch
PoE Injector 15W (+29.95)
12V DC 2000mAmps (+19.95)
Quantity
:
Description
Features
Specifications
Accessories
Downloads
Product Review

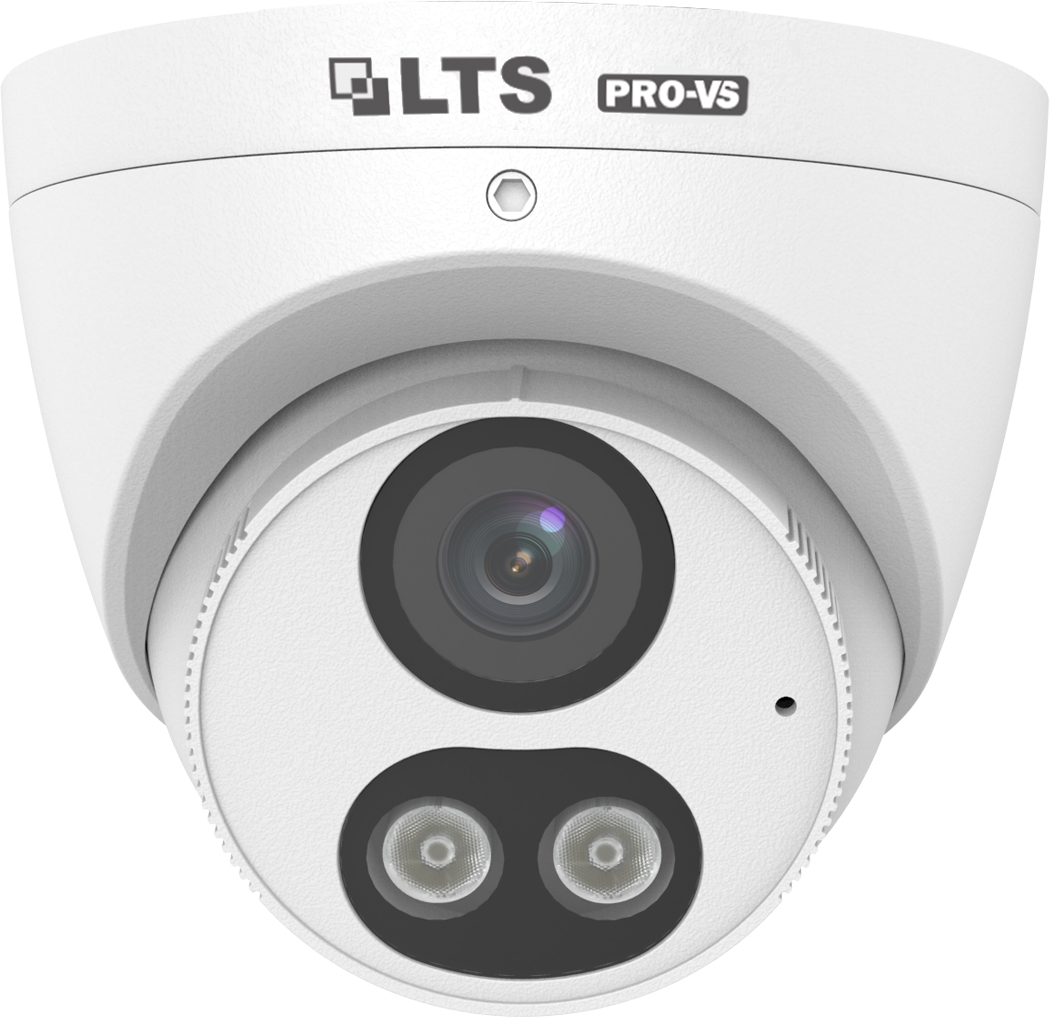

LTS VSIP3C52W-28MA Pro-VS Network Turret IP Camera 5 MP - 2.8mm
High quality image with 5MP, 1/2.7"CMOS sensor
5MP (2880 x 1620)@30fps; 4MP (2560 x 1440)@30fps;3MP (2304 x 1296)@30fps; 2MP (1920 x 1080)@30fps;
H.265 Zip+, H.265, H.264, MJPEG
Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc
Accurately focus on human and, motor vehicle and non-motor vehicle
Colorhunter technology ensures 24-hour full-color images
120dB true WDR technology enables clear image in strong light scene
Support 9:16 corridor Mode
Support built-in Mic
Support 256 GB Micro SD card
IP67 protection
Support PoE power supply
Model
VSIP3C52W-28MA
Camera Series
Pro-VS
Camera Resolution
5MP
Camera Technology
IP / Network
Camera Housing
Turret
Camera
Sensor
1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens
2.8mm@F1.0
DORI Distance
Lens (mm): 2.8
Detect (m): 63.0
Observe (m): 25.2
Recognize (m): 12.6
Identify (m): 6.3
Angle of view(H)
102.0°
Angle of View (V)
53.4°
Angle of View (O)
121.0°
Adjustment angle
Pan: 3° ~ 360°; Tilt: 0° ~ 80°; Rotate: 3° ~ 360°
Shutter
Auto/Manual, 1 ~ 1/100000s
Minimum Illumination
Colour: 0.001Lux (F1.0, AGC ON)
S/N
>56dB
Defog
Digital Defog
WDR
120dB
LEDs Number
2
LED Distance
Up to 30m (98ft)
Video
Video Compression
H.265 Zip+, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 5MP (2880x1620), Max 30fps; 4MP (2560x1440), Max 30fps;3MP (2304x1296), Max 30fps; 2MP (1920x1080), Max 30fps;
Sub Stream: 720P (1280x720), Max 30fps; D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF (704x288), Max 30fps; CIF (352x288), Max 30fps;
Third Stream: D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF (704x288), Max 30fps; CIF (352x288), Max 30fps;
Video Bit Rate
128 Kbps~16 Mbps
9:16 Corridor Mode
Supported
OSD
Up to 8 OSDs
Privacy Mask
Up to 4 areas
ROI
Up to 8 areas
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction
2D/3D DNR
Smart Illumination
Support
Flip
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC
Support
BLC
Support
Intelligent
Smart intrusion Prevention
Cross Line, Intrusion, Enter Area, Leave Area detection
Events
Basic Detection
Motion detection, Tampering alarm, Audio Detection
General Function
Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression
G.711
Suppression
Supported
Sampling Rate
8KHZ
Storage
Edge Storage
Micro SD, up to 256GB
Network Storage
ANR, NAS(NFS)
Network
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API
Client
Pro-VS Station
LTS PRO-VS APP
Web Browser
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Built-in Mic
Supported
Network
1 RJ45 10M/100M Base-TX Ethernet
Certifications
Certifications
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 7.5W
Dimensions (Φ x H)
Φ110.5 x 94.1mm (Φ4.4" x 3.7")
Net Weight
0.44kg (0.97lb)
Material
metal
Working Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge protection
2KV
Ingress Protection
IP67
