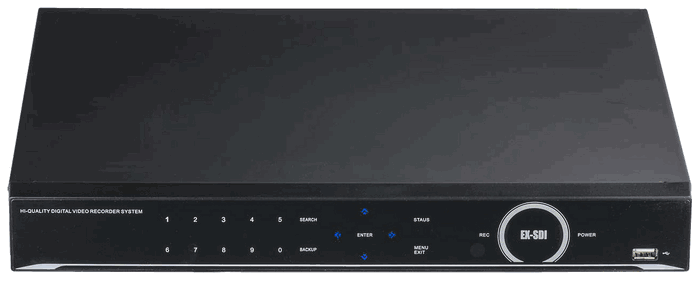

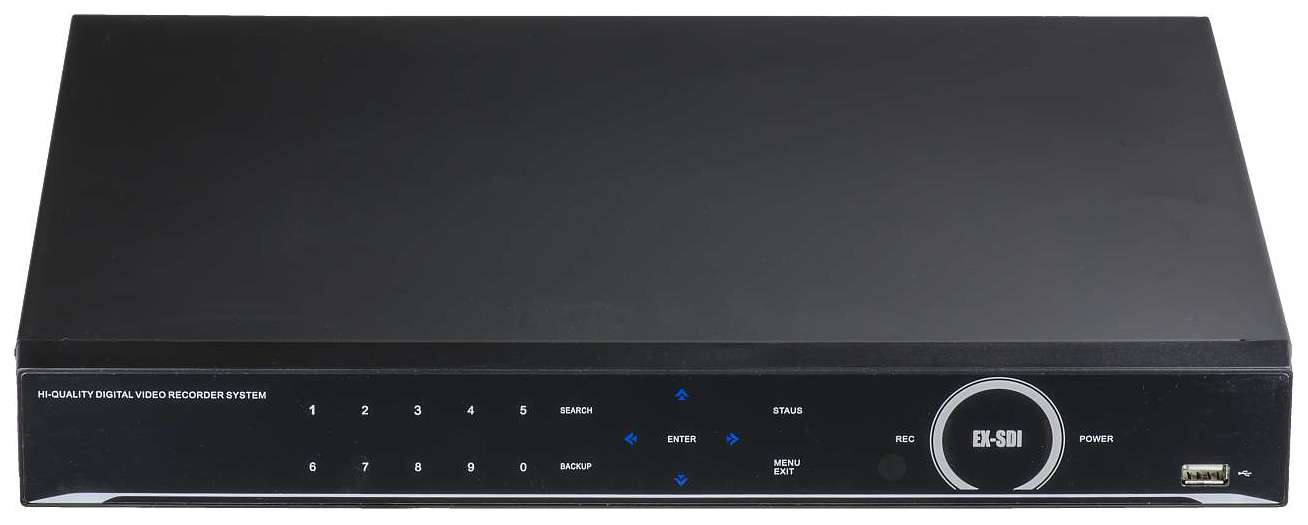

Eyemax UVST-MAGIC-QX16 Magic QX Series | 16CH Octa-brid DVR System, H.265, 4K Output, 2 HDD slots, eSATA, 5MP TVI/4MP EX-SDI Support, 4CH Audio, TDM Support

Additional View

Eyemax UVST-MAGIC-QX16 Magic QX Series | 16CH Octa-brid DVR System, H.265, 4K Output, 2 HDD slots, eSATA, 5MP TVI/4MP EX-SDI Support, 4CH Audio, TDM Support

Model	UVST-MAGIC-QX16
Video
Camera input	16 BNC
Individual HD/Analog selectable	Analog, HD-SDI, EX-SDI, AHD, TVI, CVI, IP
Available source	HD-SDI/EX-SDI 720p25,30/1080p25,30/4MP@25,30/TDM TVI/AHD 720p25,30/1080p25,30/3MP@18 ~ 30/4MP@12 ~ 30/5MP@~20 Composite/960H/Mixed
IP Camera Spec	ONVIF 2.3, RTSP, H.264, H.265 dual stream use gigabit ethnet hub
IP Camera Num	16
IP Camera Resolution	~ 4K@30
IP Cameara Restriction	Cannot setup Private ZONE Cannot support Timestamp

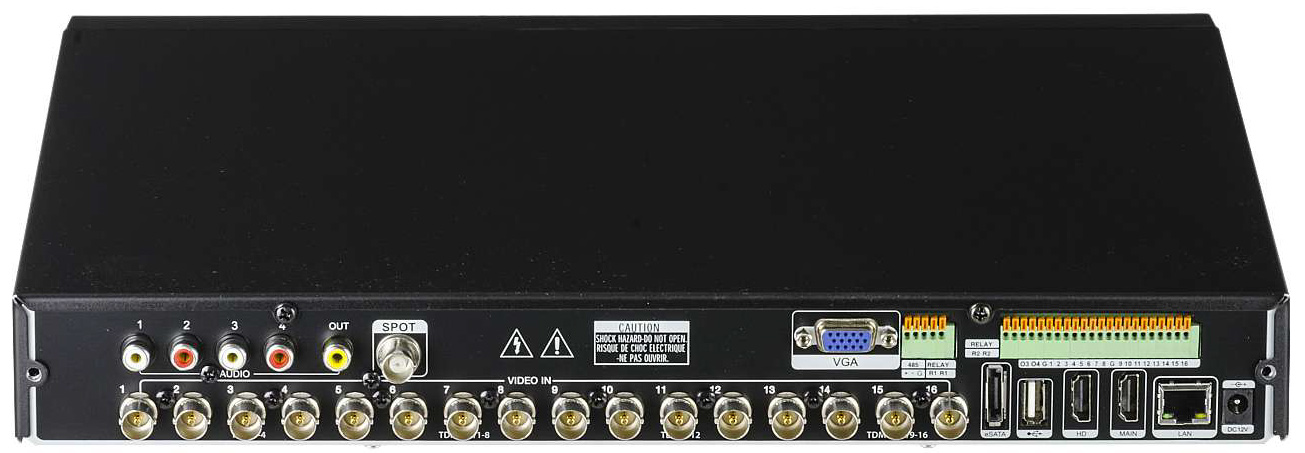

Output	2 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 Composite (Programmable SPOT)
Audio
Audio input	4 RCA
Output	1 RCA
Sensor In	16 (NC, NO selectable)
Alarm out	2 relay, 2 TTL
Operating System	Embedded Linux OS
Display
Speed	Real Time
Resolution (Pixel)	1280 � 1024, 1280 � 720, 1920 � 1080, 2560 � 1440, 3840 � 2160
Split screen	1,4,6,8,9,13,16
Main Recording
CODEC	H.265
Resolution (Pixel)	5MP: 5MP, 720p 4MP : 4MP, 720p 3MP : 3MP, 720p 1080p : 1080p, 720p 720p : 720p, 960 � 540 960H, Composite : 960H, D1
Picture quality	4 steps (Super, High, Medium, Low)
Speed	240fps @ 4MP
Dual Recording
CODEC	H.265
Resolution (Pixel)	640 � 352
Playback
Display	1,4,6,8,9,13,16
Search mode	Calendar, Event ,POS , Panorama, Thumbnail
Speed	240fps
Fast/Slow speed	Normal, REW & FF [recorded speed � 2, � 4, � 8, � 16,x32,x64,x1/2,x1/4], Frame to frame, Pause Network (Individual setting of resolution, frame rates and picture quality)
Network Interface	Gigabit Ethernet
High Resolution (Pixel)	5MP : 1080p, 720p 4MP : 1080p, 720p 3MP : 1080p, 720p 1080p : 1080p, 720p 720p : 720p, 960 � 540 960H, Composite : 960H, D1
Low Resolution (Pixel)	5MP: 480 � 256 4MP : 480 � 256 3MP : 480 � 256 1080p : 480 � 256 720p : 480 � 256 960H, Composite : CIF
Speed	140fps @ 1080p
Protocol	TCP/IP, HTTP, DHCP
Application	Windows 7 / 8 / 10 (PC Client system& IE)/MAC
Web Browser	Internet Explorer, Safari, Chrome, Firefox
Smart phone App	Android, iPhone for live and search
Backup
Interface	USB 2.0 � 2
Backup device	External HDD, CD&DVD-RW, Network, Thumb Drive
The number of HDD	2 SATA + 1 ESATA (No capacity limit ; 6TB of more)
Others
Power Consumption	60W
Operating Temperature	5 ~ 40�C(41 ~ 104F)
Relative Humidity	Maximum 80% non-condensing
Dimension	380(W) � 340(D) � 50(H) mm
