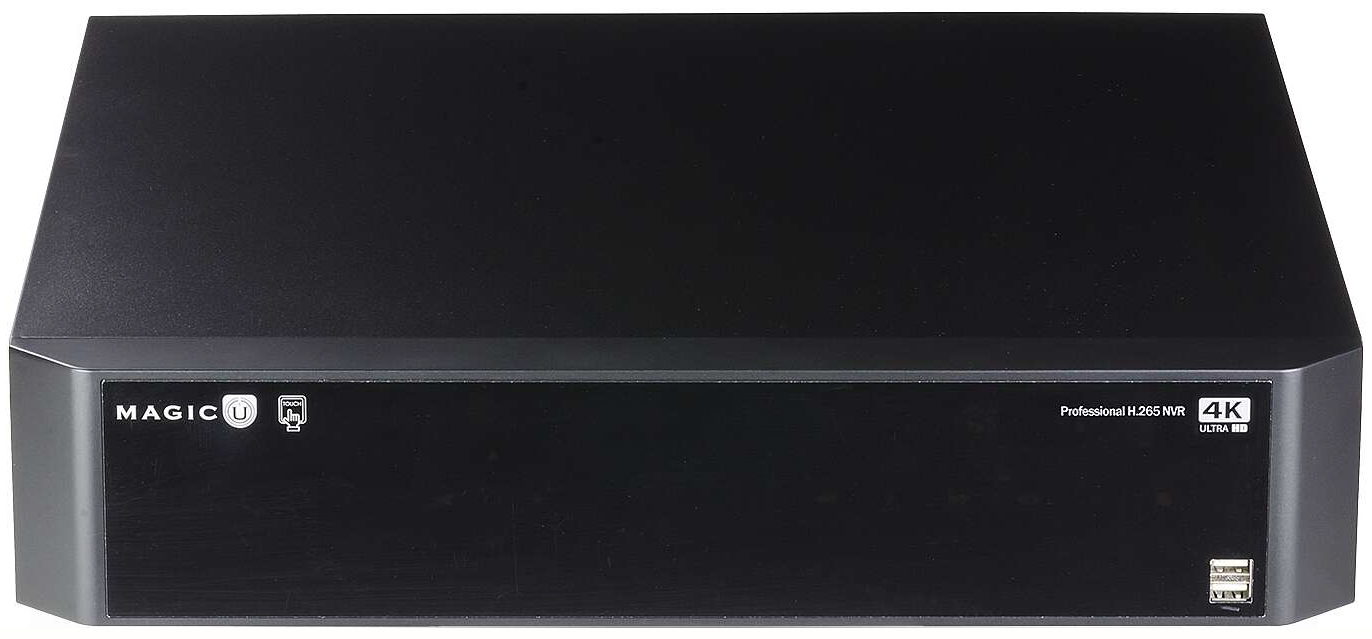

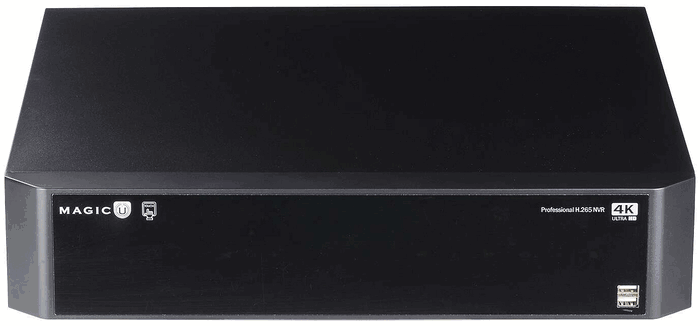

UVST-MAGIC-QN16R Magic QN Series 16+16CH Hybrid DVR System, Large Case

SKU#

:

UVST-MAGIC-QN16R

Regular Price

:

$999.95

Sale Price

:

$889.95

You Save

$110.00(11.00% )

Availability

:

Usually ships the next business day

Hard Drive

:

Warranty

:

Hi-Res Security Monitor

:

Quantity

:

UVST-MAGIC-QN16R Magic QN Series 16+16CH Hybrid DVR System, Large Case

Model	UVST-MAGIC-QN16R
Video
Camera input	16 Coax + 16 IP(PLUS+)
Individual HD / Analog selectable	Analog, HD-SDI, EX-SDI, AHD, TVI, CVI, IP
Available source (HD-SDI/EX-SDI)	720p25,30 1080p25,30 4MP@25,30
Available source (TVI/AHD/CVI)	720p25,30 1080p25,30 3MP@18 ~ 30 4MP@12 ~ 30 5MP@~20 8MP@15
Available source (Analog)	Composite / 960H Mixed
IP Camera Spec	ONVIF 1812, RTSP, H.264, H.265 Dual stream use gigabit ethernet hub
IP Camera Channel	16
IP Camera Resolution	~ 8MP@30
IP Camera Restriction	Cannot setup Private ZONE Cannot support Timestamp
Output	2 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 Composite (Programmable SPOT)
Audio
Audio input	4 RCA
Output	1 RCA
Sensor In	16 (NC, NO selectable)
Alarm out	1 relay
Display
Speed	Real Time
Resolution (Pixel)	1280 x 1024, 1280 x 720, 1920 x 1080, 2560 x 1440, 3840 x 2160
Split screen	1,4,6,8,9,13,16,32(PLUS+)
Main Recording
CODEC	H.264 / H.265
Resolution (Pixel)	8MP : 8MP, 1080p 5MP: 5MP, 720p 4MP : 4MP, 720p 3MP : 3MP, 720p 1080p : 1080p, 720p 720p : 720p, 960 x 540 960H, Composite : 960H, D1
Picture quality	4 steps (Super, High, Medium, Low)
Speed	240fps @ 4MP
Dual Recording
CODEC	H.264 / H.265
Resolution (Pixel)	512 x 320
Playback
Display	1,4,6,8,9,13,16,32(PLUS+)
Search mode	Calendar, Event ,POS , Panorama, Thumbnail, Bookmark
Speed	480fps
Fast / Slow speed	Normal, REW & FF (recorded speed x 2, x 4, x 8, x 16,x32,x64,x1/2,x1/4), Frame to frame, Pause
Network (Individual setting of resolution, frame rates and picture quality)
Network Interface	Gigabit Ethernet
Resolution (Pixel)	same as Main Recording
Speed	300fps @ 1080p
Protocol	TCP / IP, HTTP, DHCP
Application	Windows 7/8 / 10 / 11 (PC Client system & IE) / MAC
Web Browser	Internet Explorer, Edge(IE mode), Chrome(IE extension)
Smart phone App	Android, iPhone for live and search
Backup
Interface	USB 2.0 x 2, USB 3.0 x 1
Backup device	External HDD, Network, Thumb Drive
The number of HDD	8 SATA (No capacity limit ; 20TB or more)
Others
Power Consumption	60W
Operating Temperature	5 ~ 40°C(41 ~ 104°F)
Operating System	Embedded Linux OS
Relative Humidity	Maximum 80% non-condensing
Dimension	430(W) x 420(D) x 88(H) mm
