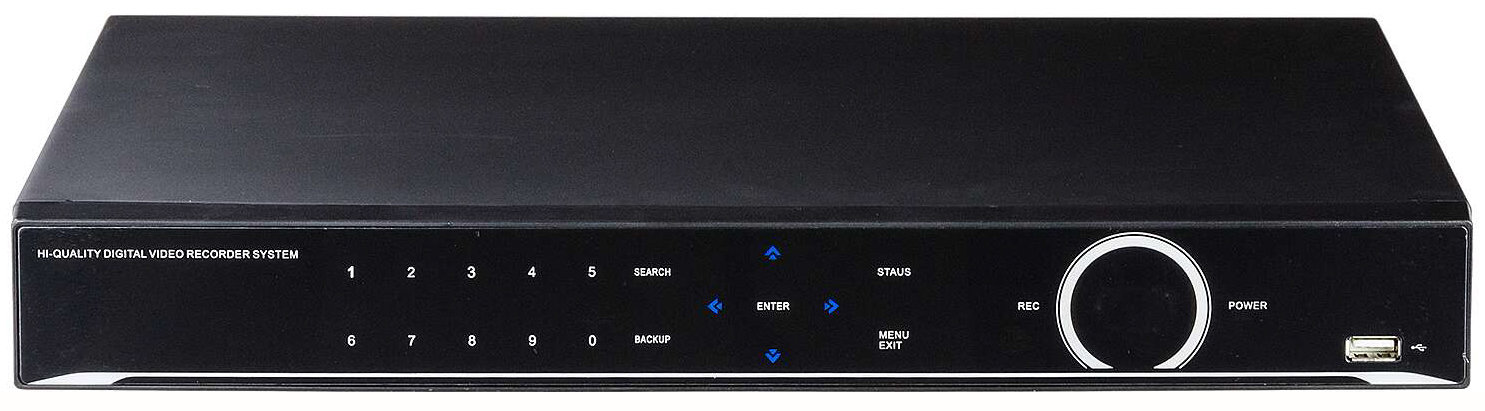

UVST-MAGIC-QN16 Magic QN Series 16CH DVR System

Model	UVST-MAGIC-QN16
Video
Camera input	16 Coax + 16 IP (Plus+)
Individual HD/Analog selec.	Analog, HD-SDI, EX-SDI, AHD, TVI, CVI, IP
Available source	HD-SDI/EX-SDI (1080p25,30/ 4MP@25,30)/TVI/AHD/CVI (720p25,30/ 1080p25,30/ 3MP@18 ~ 30/ 4MP@12 ~ 30/ 5MP@20/ 8MP@15)/ Composite/ 960H/ Mixed
Output	2 HDMI (Main Display or Programmable HD Spot), 1 VGA (Main Display or Programmable HD Spot), 1 Composite(Programmable SPOT)
IP
CH	Up to 16
Resolution	~ 8MP@30
Spec.	ONVIF 2.3, RTSP, H.264, H.265, Dual stream use gigabit ethernet hub
Restriction	Cannot setup Private ZONE, Cannot support Timestamp
System
Audio input	4 RCA
Audio output	1 RCA
Sensor in	16 (NC, NO selectable)
Alarm out	1 Relay
Display
Speed	Real Time
Resolution(pixel)	1280 x 1024, 1280 x 720, 1920 x 1080, 2560 x 1440, 3840 x 2160
Split screen	1, 4, 6, 8, 9, 13, 16 (Plus+)
Main Recording
CODEC	H.265
Resolution (pixel)	8MP: 8MP, 1080p / 5MP: 5MP, 720p / 4MP: 4MP, 720p / 3MP: 3MP, 720p 1080p: 1080p, 720p / 720p: 720p, 960 x 540 / 960H, Composite: 960H, D1
Picture quality	4 steps (Super, High, Medium, Low)
Speed	240fps@4MP
Dual Recording
CODEC	H.265
Resolution (pixel)	640 x 352
Playback
Display	1, 4, 6, 8, 9, 13, 16 (Plus+)
Search mode	Calendar, Event , POS, Panorama, Thumbnail
Fast/Slow speed	Normal, REW & FF (recorded speed x 2, x 4, x 8, x 16,x32,x64,x1/2,x1/4), Frame to frame, Pause
Speed	240fps
Network
Network Interface	Gigabit Ethernet
Low Resolution (Pixel)	720, 1080p, 3MP, 4MP, 5MP, 8MP : 480 x 256, 960H, Composite : CIF
Speed	140fps@1080p
Protocol	TCP/IP, HTTP, DHCP
Application/Mobile App.	Windows 7, 8, 10, 11 (PC client system & IE), Mac / Android, iPhone for live & search
Web browser	Internet Explorer, Edge(IE mode), Chrome(IE extension)
Others
Backup interface / device	USB2.0 x 2, USB3.0 x 1 / External HDD, Network, Thumb Drive
The number of HDD	2 SATA (No capacity limit ; 12TB of more)
Power Consumption	60W
Operating Temp. / Relative Humidity	5 ~ 40°C (41 ~ 104°F) / Max. 80% non-condensing
