Introducing our new series of Best Quality CCTV Systems designed with latest and most advanced technology available on the market today, yet still affordable. Ultimate Series CCTV Systems feature CCTV Packages designed with industrial and commercial grade components and for specific type of businesses. Based on our long experience in surveillance industry, we were able to design complete Do It Yourself Packages tailored for specific businesses. Idea is simple, we know the best fit for certain type of business and we designed the package which will serve all the needs of this specific entity the best way possible. This package includes all the features required without unnecessary addons. Also all Ultimate Series Systems are designed around top shelf product giving you the best quality possible without hurting your wallet.
ULTM08-BXDO is a CCTV System designed specifically for Medium Size Car Dealerships, Parking Lots, Storage Facilities, 24h Gas Stations, Car Wash and Hotels with open Parking Lot. Our basic configuration includes 4 Outdoor Day and Night High Resolution Box Cameras with Variable Focal Length Lens 2.8~12mm. And 4 Indoor Dome Cameras with Day & Night Feature and same Vari-Focal Lens 2.8~12mm. Outdoor cameras are to be mounted outside to watch parking lot, pumps or entrances. Basically they will cover all surrounding area of any medium size car dealership, hotel, gas station or small to medium size storage facility. We assume that all those businesses have lights outside which remains on all night. In case of most of mentioned business it is a standard. Otherwise, please refer to CCTV System with Infrared Night Vision Cameras. Dome Indoor Cameras included with this CCTV system are to cover office area, lobby, store area or showroom. In this case we also assume that indoor area is not completely dark at night. If it is, please use Dome Cameras with Infrared Night Vision available also with this system. There is an option of Indoor Dome Infrared Camera ID 6139V or Weather and Vandal Resistant Dome Infrared Camera IT 6139V. Just use drop down menus to swap any of the cameras and customize this package. You can also select more outdoor cameras or more indoor cameras. Just do your selection using drop down menus below.
All cameras available with this package pack all the latest features including, but not limited to:
- Ultra high resolution of 650TVL with 1/3" Sony Super HAD II CCD
- High Light Mask HLM, allowing masking sources of very bright light preventing camera from being blinded.
- Wide Dynamic Range WDR, helps camera to capture picture in sunny and dark area simultaneously. Also helps reducing backlight effect.
- Smart IR (infrared cameras only) prevents so called "ghost effect" by adjusting intensiveness of infra red beam.
- Variable Focal Length Lens 2.8~12mm with Auto Iris allows adjusting field of view of each camera (from 90 degrees to 25), Camera can be set from a very wide angle to close up picture.
- All Cameras support Dual Voltage 12V DC or 24V AC so with 24V AC power supply cameras can be located at greater distances even up to 1000ft from DVR unit.
- Day & Night feature with very low lux rating allows achieving color picture at night in most of the areas lit with standard street lights.
Digital Video Recorder included in this package is one of the most advanced units available on the market. As a standard we include 8 channel unit (up to 8 CCTV Cameras can be connected to the unit), but we strongly recommend upgrading this unit to 16 channel model in case you need to add extra cameras in the future. Just use drop down menu to upgrade it to 16ch version. Main features of DVR include:
- motion activated recording, alarm activated recording, recording on weekly schedule
- DVD and USB Backup to save the footage
- maintenance free operation, DVR record and erases data automatically
- 1 TB hard drive included provides 4-10 weeks of recording time (with motion activated recording), recording time can be extended when using additional hard drives
- on screen easy to use Graphic User Interface
- multi user with adjustable access level
- High Resolution Recording
- Real time display and recording
- access, control and view from the network and internet from any computer
- remote viewing by smartphone, tablet
- Central Monitoring Software CMS included - watch several locations (systems) at once on one screen from one location
- HDMI Output, VGA Output and RCA Composite Video Out
- Spot Monitor Output (display picture for customers on additional monitor)
- Audio Recording option (microphone installation required)
- 2U case fits in the server rack
When designing this CCTV Package we understood that some of the runs would be longer than average. This is the reason why we included High Quality RG59 Siamese Cable and 24V AC Power Supply Box. Now you can make runs as long as 1000ft without significant quality loss. This should be more than enough to install Cameras and CCTV System for Medium Size Car Dealership, Gas Station, Car Wash, Hotel, Storage Facility or Parking Lot. Cable can be also ran in indoor or outdoor environment without extra protection. Based on our experience in installing CCTV Systems, we are confident that this package will fit most if not all of mentioned type of businesses. We also encourage to customize it to your needs using our drop down menus for Cameras and DVR.
Below you can see Camera models available with this system. Click it for more details.
System also includes Cables, All Necessary Connectors and Power Supply Box

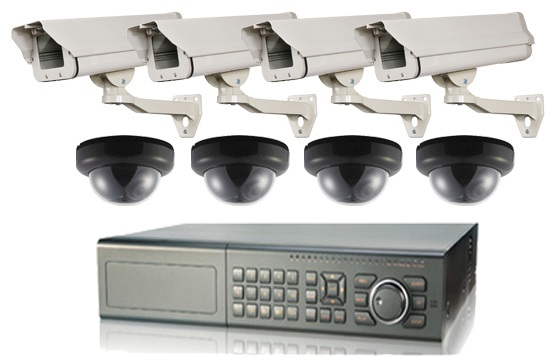

Package Includes:8 CCTV Cameras of your Choice, DVR Unit of your choice (LTS 2408MD or LTS2416MD) with Hard Drive of your choice and Professional Cable Set.
Digital Video Recorders included with Ultimate CCTV Packages feature revolutionary graphic user interface designed by LTS for latest line of DVR products. It is extremely user friendly, very intuitive and easy to use even for person without prior experience in CCTV.
