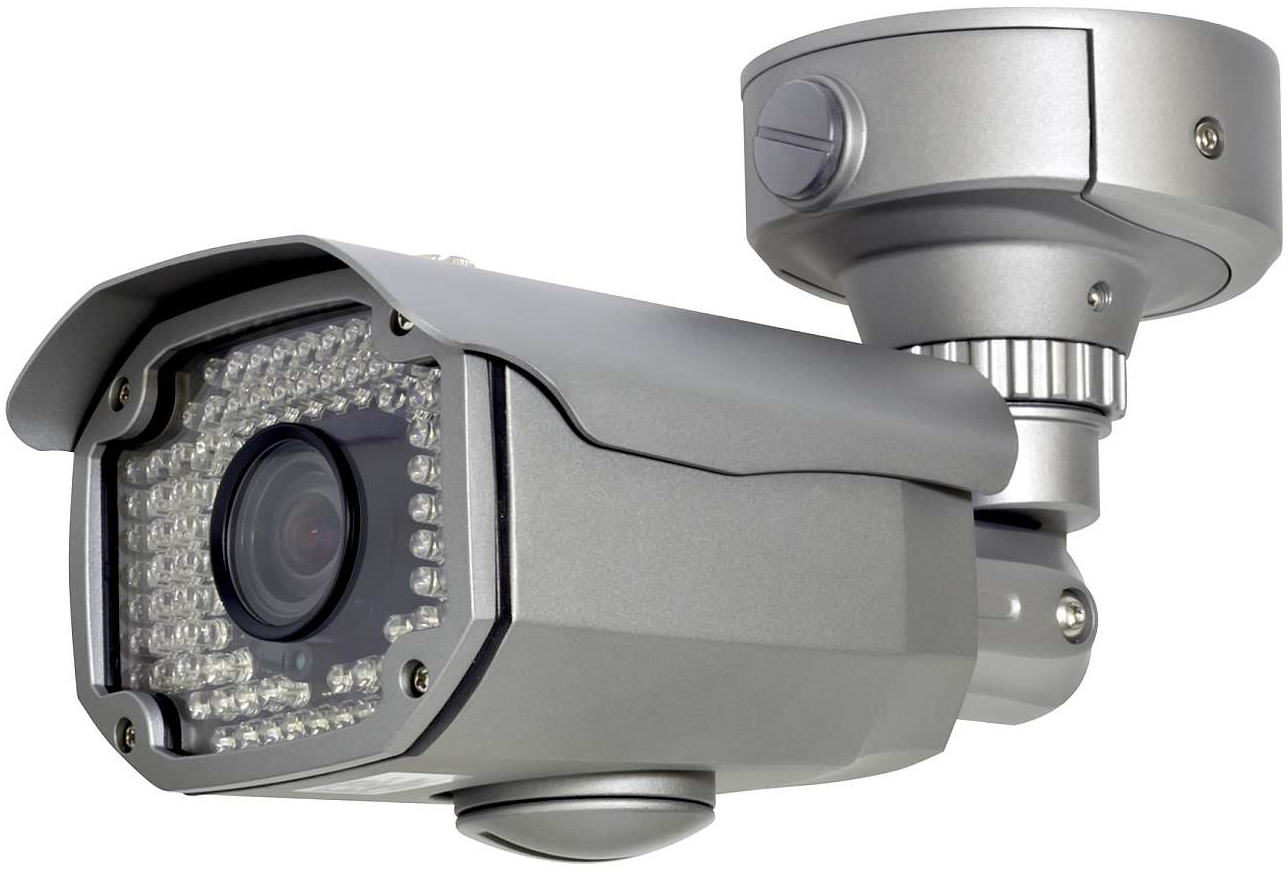

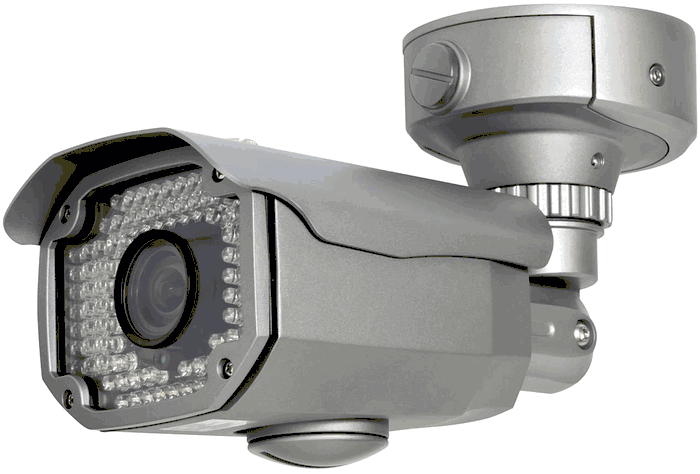

Eyemax UIR-2284V EX-SDI IR Bullet / 1080p Res(2MP) / 80 IR/200ft / 2.8~12mm / ICR / DC 12V/24V

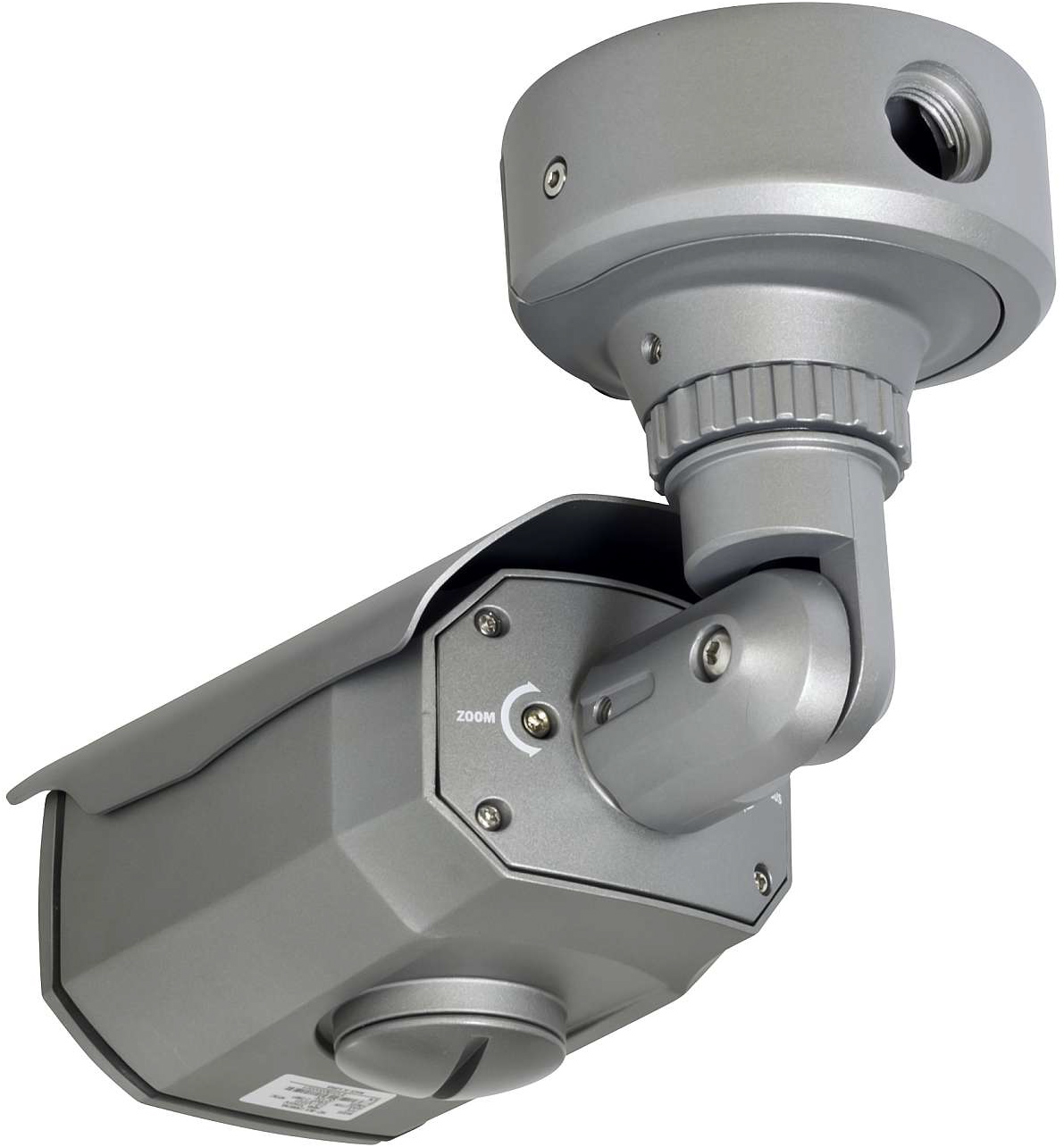

Additional View

Eyemax UIR-2284V EX-SDI IR Bullet / 1080p Res(2MP) / 80 IR/200ft / 2.8~12mm / ICR / DC 12V/24V

Model	UIR-2284V
Resolution	1080P, 720P
Sensor	1/2.9 inch SONY CMOS (IMX-222 / IM � 322)
Total Pixels	2000(H) � 1241(V) = 2,482,000
Effective Pixels	1944(H) � 1092(V) = 2,122,648
Scanning System	PROGRESSIVE
S/N (Y signal)	More than 52 dB (AGC Off)
Video Output	SMPTE292M (HD-SDI) / (CVBS: 1.0Vp-p (75ohm) : Option) (TVI : OPTION)
Min. Illumination	IR PRODUCT : 0 Lux at IR On 1 Lux at F1.2 / 0.1 Lux (B/W)
White Balance	AUTO / AUTO EXT / PRESET / MANUAL
Electronic shutter speed	AUTO / MANUAL (1/30sec ~ 1/30,000sec) / Flicker
SENS_UP	OFF / � 2 / � 4 / � 8 / � 16 / � 32
DNR	OFF / LOW / MIDDLE / HIGH
BACKLIGHT	OFF / WDR / BLC / HLC
ACE	OFF / LOW / MIDDLE / HIGH
Day & Night	AUTO (Day <�> Night TIME Change) , COLOR , B/W, EXTERN
PRIVACY / FLIP / FREEZE	OFF / ON
MOTION / DEFOG	OFF / SET
D.ZOOM	x1.0 ~ � 16.0
Language	ENG, CHN, CHN(S), JPN, KOR
Sharpness / Brightness	ADJUSTABLE (Sharpness : 0 ~ 10 STEP / Brightness : 0 ~ 20 STEP )
COMM.	RS-485(PELCO-D)
Temperature/Humidity	Operating (14�F ~ 122�F(-10�C ~ 50�C) / 30% ~ 80% RH) / Storage (-4�F ~ 140�F(-20�C ~ 60�C) / 20% ~ 90% RH)
Power	AC24V / DC12V Dual Power
signal Transmission	The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200M) / EX-SDI (400M))
