EX-SDI utilize low frequency signal combine with the new VLC (Visually Lossless CODEC) technology, able to push up 99% identical image quality at more than twice the transmission distance.
Ready for 4K
EX-SDI is built in mind of adopting 4K resolution to security. Thanks to the EX-SDI VLC feature, because of that it is possible to transmit 4K in realtime FPS over coaxial cable.
Video Balun compatible
UTP cable is another option to transmit EX-SDI video signal in order to reduce cable cost. Specialized video balun for EX-SDI is required. (sold separately)
2.8~12mm Vari-focal Lens
EX-SDI 1080p FULL HD Flawless Video
1/2.8” CMOS
True Day & Night (ICR)
0 Lux at IR On (IR : 36pcs)
Defog • HLI • 3D DNR (3D Digital Noise Reduction)
Digital WDR
switchable EX-SDI / HD-SDI output
CVBS output (analog)
DC 12V

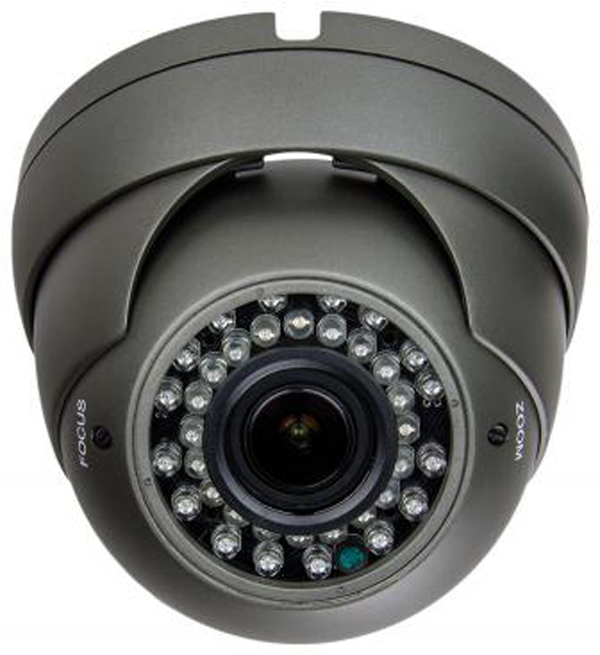

Model
UIB-1032V-B
Effective Pixels:
2.0Mega Pixels
Built-in Lens:
2.8~12mm Vari-focal Mega Pixel Lens
Signal System:
PAL/NTSC
Horizontal Resolution
PAL:1920X1080P 25F/S NTSC:1920X1080P 30F/S
Sync. System:
Internal Sync.
Sensor Area:
5.42mm × 3.41mm
Video Output:
EX-SDI & CVBS Output, switch on HD-SDI & CVBS Output
S/N Ratio:
More than 50dB (AGC OFF)
OSD Menu
Support
White Balance:
Auto Tracking White Balance
Shutter Speed:
1/25~50,000Sec.
IR Leds:
36pcs
Operating Temp / Humidity
-10°C ~ +50°C(14°F ~ 122°F) / 30%~80% RH
Storage Temp / Humidity
-20°C ~ +60°C(-4°F ~ 140°F) / 20%~90% RH
Power Requirement:
DC12V, Max Power Comsumption Less Than 3W (When the infrared lamps turn on)
