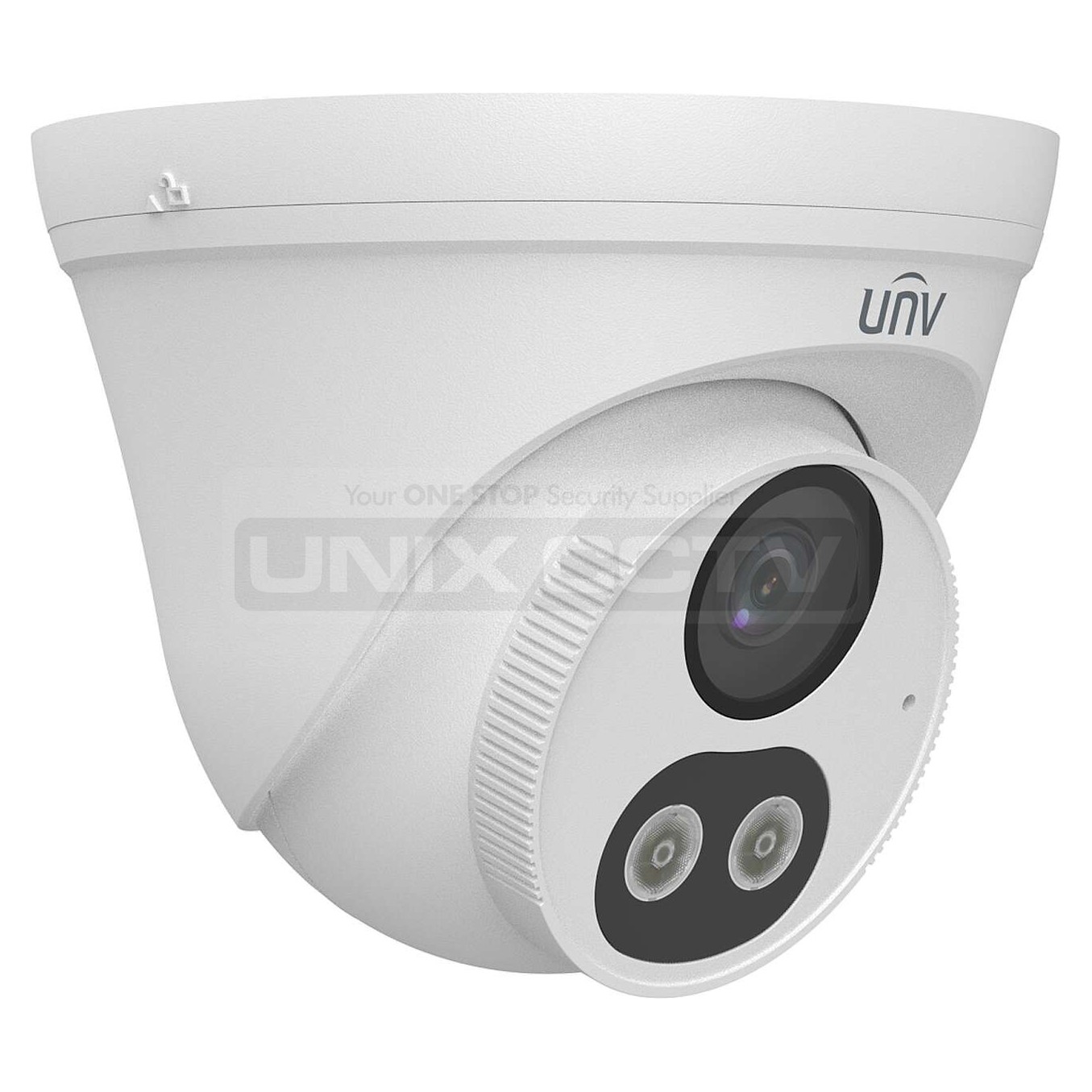

UNV UAC-T145-AF28LM-DL 5MP ColorHunter With Smart Dual Light Turret Analog Camera

ColorHunter • 1/2.7″ CMOS 5MP • 0.005 lux (F1.6, AGC ON) • TVI/CVI/AHD/CVBS • D-WDR • 2.8mm • Smart Dual Light • 131.2ft (40m) WL Distance • 131.2ft (40m) IR Distance • IP67 • 12VDC • Built-in Mic

Sensor
Pixel	5MP
Sensor Size	1 / 2.7" CMOS
Min. Illumination	0.005 lux (F1.6, AGC ON) 0 lux (Illuminator ON)
Lens
Focus	2.8 mm
Lens Mount	M12
Angle of View (H)	110.0°
Angle of View (V)	57.0°
Angle of View (D)	130.0°
Illuminator
Illuminator Number	Two IR illuminators; Two white-light illuminators
Illumination Distance	IR: 40m (131.23 ft)
	White light: 40m (131.23ft)
Lifetime	≥60000 hours
Video
Resolution	5MP@25fps: 2880(H) × 1620(V); 5MP@20fps: 2592(H) × 1944(V); 5MP@12.5fps: 2592(H) × 1944(V) 4MP: 2560(H) × 1440(V) 1080P: 1920(H) × 1080(V)
Frame Rate (TVI)	5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
Frame Rate (AHD)	5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
Frame Rate (CVI)	5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
Frame Rate (CVBS)	PAL, NTSC
Shutter Time	PAL: 1 / 25s-1 / 50000s NTSC: 1 / 30s-1 / 50000s
Exposure Mode	Four modes: Global(default), BLC, HLC, DWDR
Day / Night	Three modes: Auto (default), Day, Night
Digital Noise Reduction	2D
White Balance	Two modes: Auto (default), Manual
WDR	DWDR
Light Mode	Dual light (default) , Infared, White light
Flip	Supports 180°horizontal flip, 180°vertical flip
Audio
Built-in Mic	Support
Camera Audio	TVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps
Interface
Power Interface	5.5 mm Power Interface
Video Output	BNC, supports TVI / AHD / CVI / CVBS
Operating Environment
Temperature	−30 °C ~ 60 °C (−22 °F ~ 140 °F)
Humidity	≤95% RH (non-condensing)
Surge Protection	4kV for power&4kV for video output interfaces
General
Power	DC12V±25%
Power Consumption	MAX 3.5W
Mount	Corner Mount&Pole Mount&Wall Mount&Pendant Mount
Dimensions	Φ117.8mm96.5mm (diameterheight)
Material	Metal + Plastic
Weight	239g(0.53lb)
OSD Menu Language	11 Languages English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Certification
EMC	CE-EMC (EN 55032, EN 61000 ~ 3-3, EN IEC 61000 ~ 3-2, EN 55035), FCC (FCC 47 CFR part15 B)
Safety	CE-LVD (EN 62368 ~ 1)
Environment	CE-RoHS (2011 / 65 / EU;(EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)
