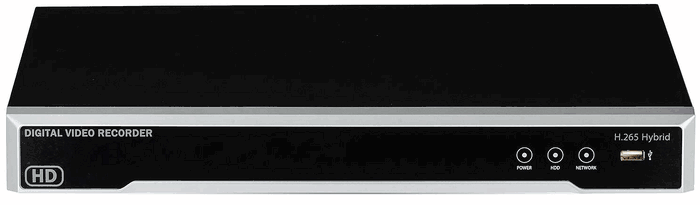

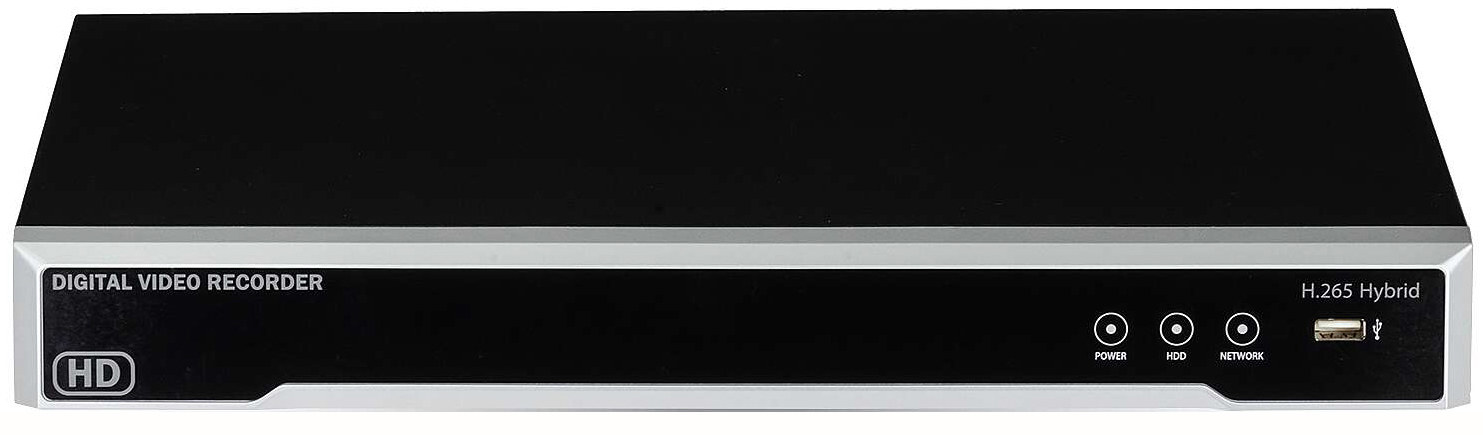

TVST-PVT8-8M16 Magic PVT8 Series 16CH Penta-brid 4K DVR System

SKU#

:

TVST-PVT8-8M16

Regular Price

:

$999.95

Sale Price

:

$789.95

You Save

$210.00(21.00% )

Availability

:

Usually ships the next business day

Hard Drive

:

Warranty

:

Hi-Res Security Monitor

:

Quantity

:

TVST-PVT8-8M16 Magic PVT8 Series 16CH Penta-brid 4K DVR System

Model	TVST-PVT8-8M16
Video
Camera input	16 BNC + 16 IP
Individual HD/Analog selec.	Analog, AHD, TVI, CVI, IP
Available source	TVI/AHD/CVI 720p25,30/ 1080p25,30/ 3MP@18 ~ 30/ 4MP@12 ~ 30/ 5MP@20/ 8MP@15 Composite/ 960H/ Mixed
Output	1 HDMI (Main Display, ~UHD@30), 1 VGA (Main Display, ~1080p60), 1 Composite (Programmable SPOT)
IP Camera
# of IP Camera Support	16
Resolution	Up to 8MP@30
Spec	ONVIF 1812, RTSP, H.264, H.265, Dual stream use gigabit ethernet hub
Restriction	Cannot setup Private ZONE, Cannot support Timestamp
System
Audio input / output	16 (4 RCA + 12 DB15) / 1 RCA
Sensor in / Alarm out	16 (NC, NO selectable) / 1 Relay
Operating System	Embedded Linux OS
Display
Speed	Real Time
Resolution(pixel)	1280 x 720, 1920 x 1080, 4M, UHD
Split screen	1, 4, 6, 8, 9, 13, 16, 32
Main Recording
CODEC	H.264 / H.265
Resolution (pixel)	8MP: 8MP, 1080p / 5MP: 5MP, 720p / 4MP: 4MP, 720p / 3MP: 3MP, 720p 1080p: 1080p, 720p / 720p: 720p, 960 x 540 / 960H, Composite: 960H, D1
Picture quality	4 steps (Super, High, Medium, Low)
Speed	240fps@4MP
Dual Recording
CODEC	H.264/H.265
Resolution (pixel)	512 x 320
Playback
Display	1, 4, 6, 8, 9, 13, 16, 32
Search mode	Calendar, Event , POS, Panorama, Thumbnail, Bookmark
Fast/Slow speed	Normal, REW & FF (recorded speed x 2, x 4, x 8, x 16,x32,x64,x1/2,x1/4), Frame to frame, Pause
Speed	480fps
Network
Network Interface	Gigabit Ethernet
Low Resolution (Pixel)	720, 1080p, 3MP, 4MP, 5MP, 8MP : 480 x 256, 960H, Composite : CIF
Speed	140fps@1080p
Protocol	TCP/IP, HTTP, DHCP
Application/Mobile App.	Windows 7, 8, 10, 11 (PC client system & IE), Mac / Android, iPhone for live & search
Web browser	Internet Explorer, Edge(IE mode), Chrome(IE extension)
Others
Backup interface / device	USB2.0 x 2, USB3.0 x 1 / External HDD, Network, Thumb Drive
The number of HDD	2 SATA (No capacity limit ; 12TB of more)
Power Consumption	60W
Operating Temp. / Relative Humidity	5 ~ 40°C (41 ~ 104°F) / Max. 80% non-condensing
