TVST-PVT3-16N5 Magic PVT3 Series 16CH Penta-brid DVR System

Additional View

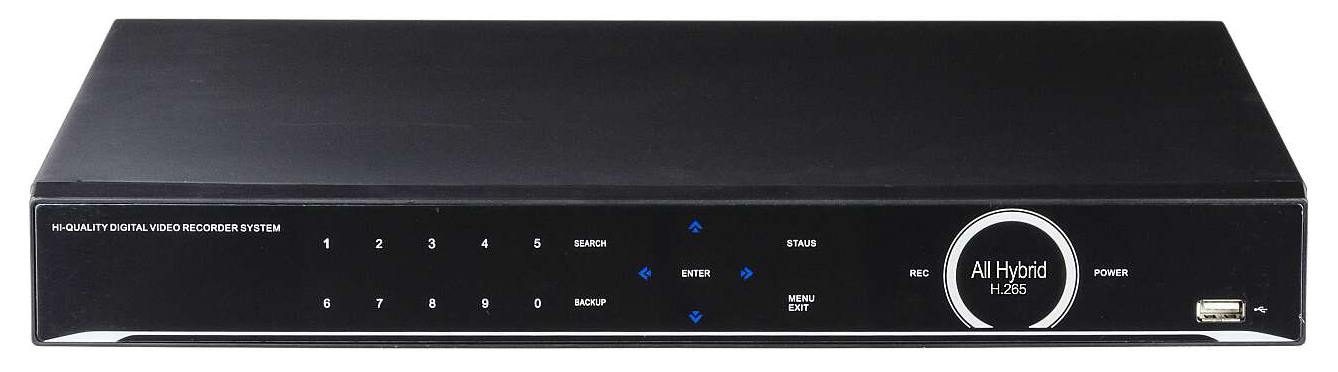

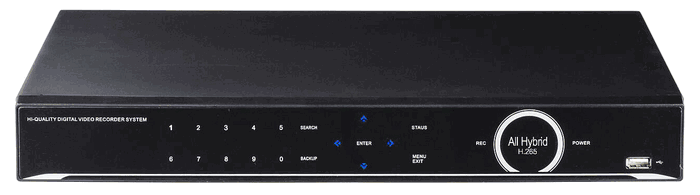

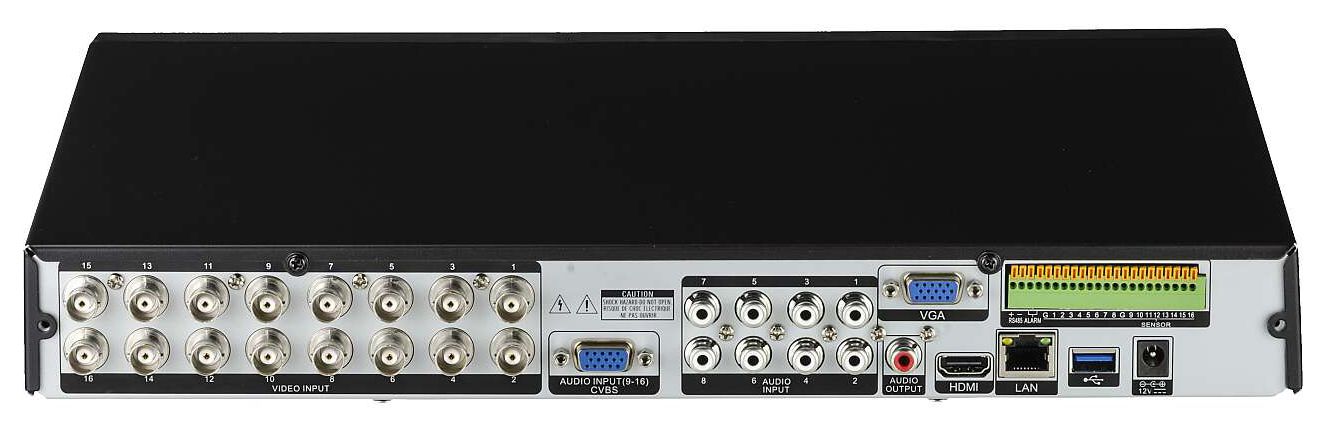

TVST-PVT3-16N5 Magic PVT3 Series 16CH Penta-brid DVR System

Model	TVST-PVT3-16N5
Video
Camera input	16 BNC
Individual HD/Analog selectable	Analog / TVI / AHD / CVI / IP
Available source	TVI / AHD / CVI 720p@25/30, 1080p@25/30 / 3MP@18 / 4MLite@12~30 Composite / 960H /Mixed
IP Camera Spec	ONVIF 1812 / RTSP / H.264 / H.265 / dual stream use gigabit ethnet hub
IP Camera	4
IP Camera Resolution	upto 3M
IP Camera Restriction	Cannot setup Private ZONE Cannot support Timestamp
Output	1 HDMI (Main Display, ~UHD) 1 VGA (Main Display, ~1080P) 1 Composite (Programmable SPOT)
Audio
Audio input	16 (8 RCA + 8 DB15)
Output	1 RCA
Sensor In	16 (NC / NO selectable)
Alarm out	1 relay
Operating System	Embedded Linux OS
Display
Speed	Real Time
Resolution (Pixel)	1280 x 1024 / 1280 x 720 / 1920 x 1080
Split screen	1 / 4 / 6 / 8 / 9 / 13 / 16
Main Recording
CODEC	H.264/H.265
Resolution (Pixel)	2 / 3MP or 720p @ 2 / 3MP input 720p or 960 x 540 @ 720p input 960H or D1 @ Composite / 960H input
Picture quality	4 steps (Super / High / Medium / Low)
Speed	240fps @ 1080p
Dual Recording
CODEC	H.264 / H.265
Resolution (Pixel)	512 x 320
Playback
Display	1 / 4 / 6 / 8 / 9 / 13 / 16
Search mode	Calendar / Event / POS / Thumbnail / Bookmark
Speed	240fps
Fast/Slow speed	Normal / REW & FF [recorded speed x 2 / x 4 / x 8 / x 16 / x32 / x64 / x1/2 / x1/4] / Frame to frame / Pause
Network (Individual setting of resolution / frame rates and picture quality)
Network Interface	Gigabit Ethernet
Protocol	TCP/IP / HTTP / DHCP
Application	Windows 10 (PC Client system& IE) / MAC
Web Browser	Internet Explorer
Smart phone App	Android / iPhone for live and search
Backup
Interface	USB 2.0 x 2
Backup device	External HDD and CD/DVD-RW / Network / Thumb Drive
The number of HDD	2 SATA(No capacity limit ; 10TB or more)
Mirroring	Yes
Others
Power Consumption	60W
Operating Temperature	0 ~ 40°C (32 ~ 104°F)
Relative Humidity	Maximum 80% non-condensing
Dimension	380(W) x 340(D) x 50(H) mm
