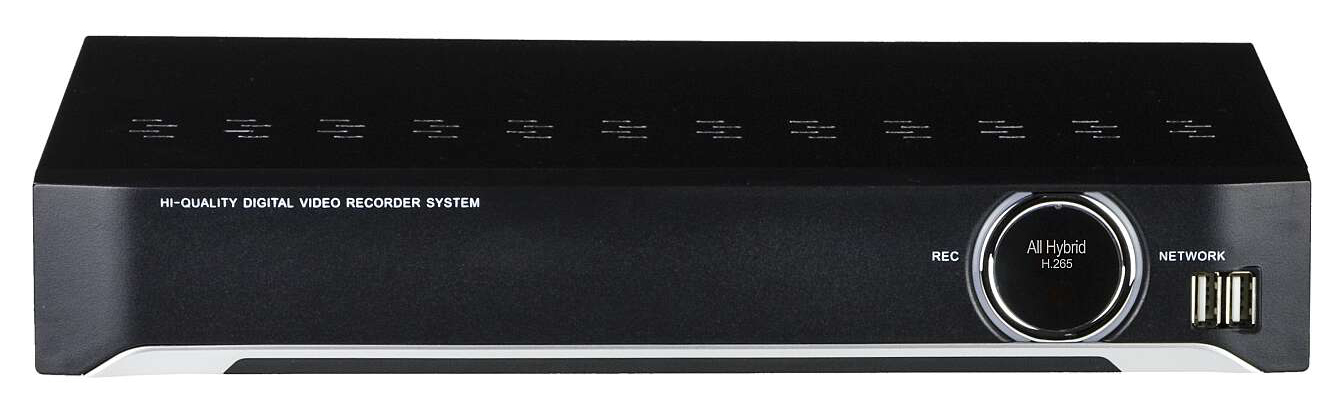

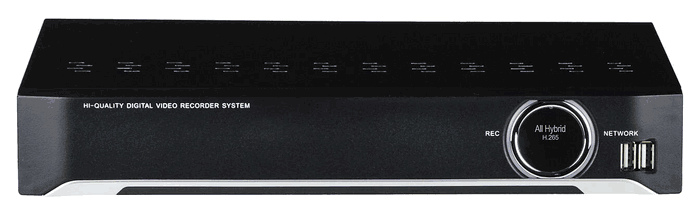

TVST-PVT3-08N5 Magic PVT3 Series 8CH Penta-brid DVR System

Additional View

TVST-PVT3-08N5 Magic PVT3 Series 8CH Penta-brid DVR System

Model	TVST-PVT3-08N5
Video
Camera input	8 BNC
Individual HD/Analog selectable	Analog / TVI / AHD / CVI / IP
Available source	TVI / AHD / CVI 720p@25/30 / 1080p@25/30 / 3MP@18 / 4MLite@12~30/ Composite / 960H / Mixed
IP Camera Spec	ONVIF 1812 / RTSP / H.264 / H.265 / dual stream use gigabit ethnet hub
IP Camera	2
IP Camera Resolution	up to 3M
IP Camera Restriction	Cannot setup Private ZONE Cannot support Timestamp
Output	1 HDMI (Main Display ~4M@30) 1 VGA (Main Display ~1080P60) 1 Composite (Programmable SPOT)
Audio
Audio input	8 RCA
Output	1 RCA
Sensor In	8 (NC / NO selectable)
Alarm out	1 relay
Operating System	Embedded Linux OS
Display
Speed	Real Time
Resolution (Pixel)	1280 x 1024 / 1280 x 720 / 1920 x 1080
Split screen	1 / 4 / 6 / 8 / 9
Main Recording
CODEC	H.264 / H.265
Resolution (Pixel)	2,3MP or 720p @ 2,3MP input 720p or 960 x 540 @ 720p input 960H or D1 @ Composite / 960H input
Picture quality	4 steps (Super / High / Medium / Low)
Speed	120fps @ 1080p
Dual Recording
CODEC	H.264 / H.265
Resolution (Pixel)	512 x 320
Playback
Display	1 / 4 / 6 / 8 / 9
Search mode	Calendar / Event / POS / Thumbnail / Bookmark
Speed	120fps
Fast/Slow speed	Normal / REW & FF (recorded speed �2 / �4 / �8 / �16 / �32 / �64 / �1/2 �1/4) / Frame to frame / Pause
Network (Individual setting of resolution / frame rates and picture quality)
Network Interface	Megabit Ethernet
Protocol	TCP/IP / HTTP / DHCP
Application	Windows 7 / 8 / 10 (PC Client system& IE) / MAC
Web Browser	Internet Explorer
Smart phone App	Android / iPhone for live and search
Backup
Interface	USB 2.0 x 2
Backup device	External HDD and CD/DVD-RW / Network / Thumb Drive
The number of HDD	1 SATA(No capacity limit ; 10TB or more)
Mirroring	No
Others
Power Consumption	24W
Operating Temperature	0~40°C (32~104°F)
Relative Humidity	Maximum 80% non-condensing
Dimension	11.8(W) x 8.27(D) x 1.89(H) inches 300(W) x 210(D) x 48(H) mm
