TVST-PVT-8M04H Magic 4CH PVT-8MH DVR System

Additional View

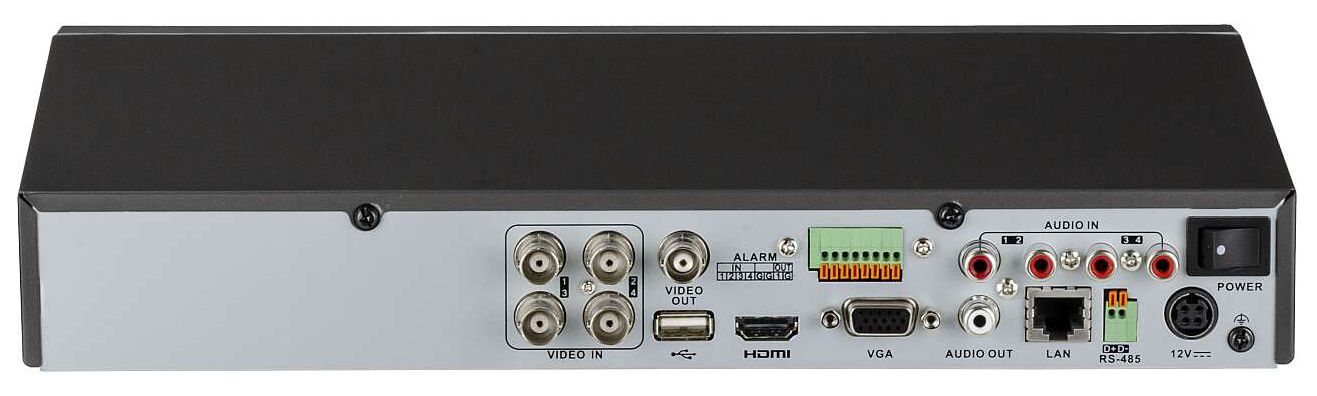

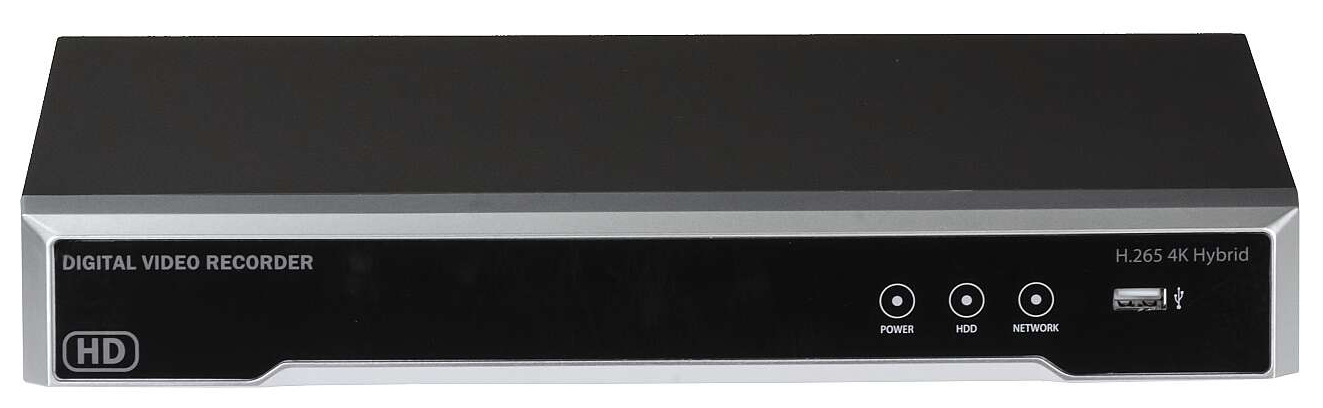

TVST-PVT-8M04H Magic 4CH PVT-8MH DVR System

Model	TVST-PVT-8M04H
Video
Camera input	4 BNC
Individual HD/Analog selectable	Analog, AHD, TVI, CVI, IP
Available source (TVI/AHD/CVI)	720p25,30 1080p25,30 3MP@18~30 4MP@12~30 5MP@20 8MP@15 (only 1ch) Composite/960H/Mixed
IP Camera	ONVIF 2.3, RTSP, H.264, H.265, Dual Stream use gigabit ethnet hub
Max # of IP	4
Max Resolution (IPC)	5MP
Restriction (IPC)	Cannot setup Private ZONE Cannot support Timestamp
Output	1 x HDMI (Main Display, ~UHD@30) 1 x VGA (Main Display, ~1080p60) 1 x Composite (Programmable SPOT)
Audio
Audio Input	4 RCA
Audio Output	1 RCA
Sensor In	4 (NC, NO selectable)
Alarm out	1 Relay
Operating System	Embedded Linux OS
Display
Speed	Real Time
Resolution (Pixel)	1280 x 1024 1280 x 720 1920 x 1080 4M UHD (4K)
Split screen	1/4
Main Recording
CODEC	H.264 / H.265
Resolution (Pixel)	8MP : 8MP, 1080p 5MP : 5MP, 720p 4MP : 4MP, 720p 3MP : 3MP, 720p 1080p : 1080p, 720p 720p : 720p, 960�540 960H, Composite : 960H, D1
Picture quality	4 steps (Super, High, Medium, Low)
Speed	60fps @ 4MP
Dual Recording	The model doesn�t support Dual Recording
Playback
Display	1/4
Search mode	Calendar / Event / POS / Panorama / Thumbnail
Speed	60fps @ 4MP
Fast / Slow speed	Normal, REW & FF [recorded speed 2x, 4x, 8x, 16x, 32x, 64x, 1/2x , 1/4x], Frame to frame, Pause
Network (Individual setting of resolution, frame rates and picture quality)
Network Interface	Megabit Ethernet
High Resolution (Pixel)	8MP : 8MP, 1080p 5MP : 5MP, 720p 4MP : 4MP, 720p 3MP : 3MP, 720p 1080p : 1080p, 720p 720p : 720p, 960�540 960H, Composite : 960H, D12
Low Resolution (Pixel)	720, 1080p, 3MP, 4MP, 5MP, 8MP : 480�256 960H, Composite : CIF
Speed	40fps @ 1080p
Protocol	TCP/IP, HTTP, DHCP
Application	Windows 7 / 8 / 10 (PC Client system & IE)/MAC
Web Browser	Internet Explorer
Smart phone App	Android, iPhone for live and search
Backup
Interface	USB 2.0 x 2
Backup device	External HDD, CD & DVD-RW, Network, Thumb Drive
The number of HDD	1 x SATA (No capacity limit ; 10TB or more)
Others
Power Consumption	24W
Operating Temperature	0 ~ 40°C (32 ~ 104°F)
Relative Humidity	Maximum 80% non-condensing
Dimension	315(W) x 240(D) x 48(H) mm
