Magic TVST-PVT-8M04 PVT-8M Series 4 Channel 8MP (4K/UHD) H.265 Penta-brid (TVI/AHD/CVI/IP/960H) DVR System, 1 × SATA

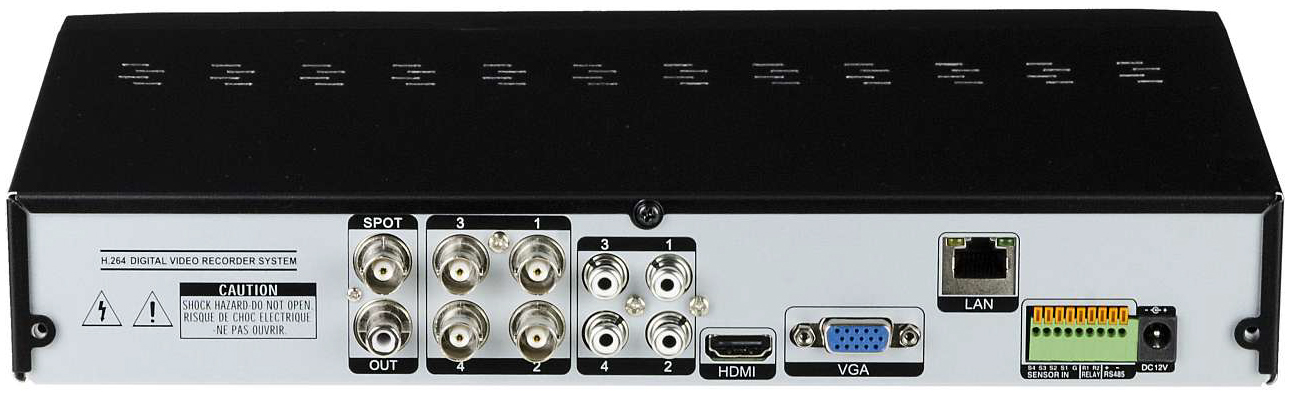

Additional View

Magic TVST-PVT-8M04 PVT-8M Series 4 Channel 8MP (4K/UHD) H.265 Penta-brid (TVI/AHD/CVI/IP/960H) DVR System, 1 × SATA

Model	TVST-PVT-8M04
Video
Camera input	4 BNC
Individual HD/Analog selectable	Analog, AHD, TVI, CVI, IP
Available source	TVI/AHD/CVI 720p25,30/1080p25,30/3MP@18 ~ 30/4MP@12 ~ 30/5MP@20/8MP@15 (only 1ch) Composite/960H/Mixed
IP Camera Spec	ONVIF 2.3, RTSP, H.264, H.265, dual stream use gigabit ethnet hub
IP Camera Num	4
IP Camera Resolution	~ 5MP@30
IP Camera Restriction	Cannot setup Private ZONE Cannot support Timestamp
Output	1 HDMI (Main Display, ~UHD@30) 1 VGA (Main Display, ~1080p60) 1 Composite (Programmable SPOT)
Audio
Audio input	4 RCA
Output	1 RCA
Sensor In	4 (NC, NO selectable)
Alarm out	1 relay
Operating System	Embedded Linux OS
Display
Speed	Real Time
Resolution (Pixel)	1280 × 1024, 1280 × 720, 1920 × 1080, 4M, UHD
Split screen	1,4
Main Recording
CODEC	H.265
Resolution (Pixel)	8MP : 8MP, 1080p 5MP : 5MP, 720p 4MP : 4MP, 720p 3MP : 3MP, 720p 1080p : 1080p, 720p 720p : 720p, 960 × 540 960H, Composite : 960H, D1
Picture quality	4 steps (Super, High, Medium, Low)
Speed	60fps @ 4MP
Dual Recording
CODEC	H.264
Resolution (Pixel)	N/A
Playback
Display	1,4
Search mode	Calendar, Event ,POS , Panorama, Thumbnail
Speed	60fps @ 4MP
Fast/Slow speed	Normal, REW & FF [recorded speed × 2, × 4, × 8, × 16,x32,x64,x1/2,x1/4], Frame to frame, Pause
Network (Individual setting of resolution, frame rates and picture quality)
Network Interface	Megabit Ethernet
High Resolution (Pixel)	same as Main Recording
Low Resolution (Pixel)	720, 1080p, 3MP, 4MP, 5MP, 8MP : 480 × 256 960H, Composite : CIF
Speed	40fps @ 1080p
Protocol	TCP/IP, HTTP, DHCP
Application	Windows 7 / 8 / 10 (PC Client system& IE) / MAC
Web Browser	Internet Explorer, Safari, Chrome, Firefox
Smart phone App	Android, iPhone for live and search
Backup
Interface	USB 2.0 × 2
Backup device	External HDD, CD&DVD-RW, Network, Thumb Drive
RAID	N/A
The number of HDD	1 SATA(No capacity limit ; 8TB of more)
Others
Power Consumption	24W
Operating Temperature	5 ~ 40°C(41 ~ 104F)
Relative Humidity	Maximum 80% non-condensing
Dimension (WxDxH)	11.81" × 8.27" × 1.89" (300 × 210 × 48mm)
