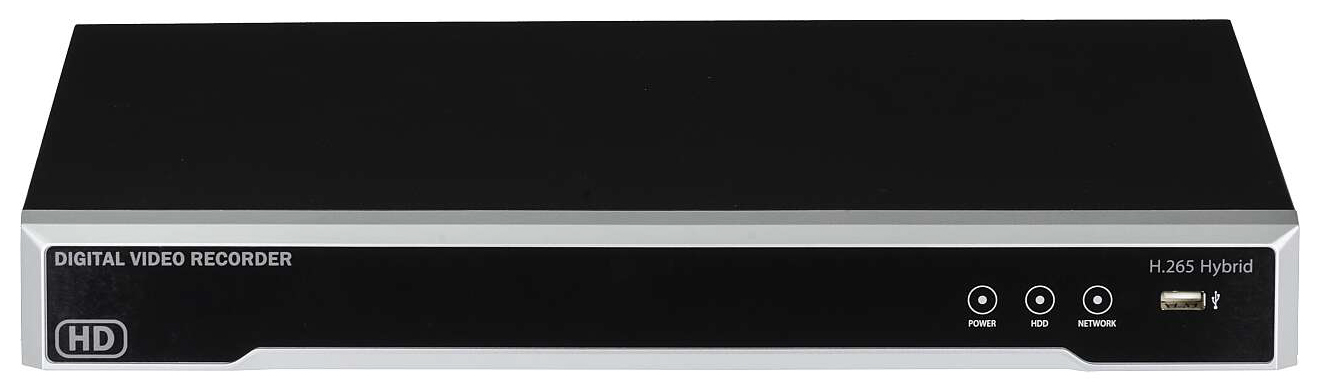

TVST-PVT-16N5H Magic 16CH PVT-N5H DVR System

Related Products

We Carry the Best Brands in CCTV Business

Model	TVST-PVT-16N5H
Video
Camera input	16 BNC
Individual HD/Analog selectable	Analog, TVI, AHD, CVI, IP
Available source	TVI/AHD/Analog � upto 3M
IP Camera Spec	ONVIF 2.3, RTSP, H.264, H.265, dual stream use gigabit ethernet hub
IP Camera Num	12
IP Camera Resolution	upto 3M
IP Camera Restriction	Cannot setup Private ZONE Cannot support Timestamp
Output	1 HDMI (Main Display) 1 VGA (Main Display) 1 Composite (Programmable SPOT)
Audio
Audio input	1 RCA
Output	1 RCA
Sensor In	4 (NC, NO selectable)
Alarm out	1 relay
Operating System	Embedded Linux OS
Display
Speed	Real Time
Resolution (Pixel)	1280 x 1024, 1280 x 720, 1920 x 1080
Split screen	1,4,6,8,9
Main Recording
CODEC	H.264 / H.265
Resolution (Pixel)	2,3MP or 720p @ 2,3MP input 720p or 960 x 540 @ 720p input 960H or D1 @ Composite, 960H input
Picture quality	4 steps (Super, High, Medium, Low)
Speed	240fps @ 1080p
Dual Recording
CODEC	H.264 / H.265
Resolution (Pixel)	480 x 256
Playback
Display	1,4,6,8,9,13,16
Search mode	Calendar, Event ,POS , Panorama, Thumbnail, Bookmark
Speed	240fps
Fast/Slow speed	Normal, REW & FF [recorded speed 2x, 4x, 8x, 16x, 32x, 64x, 1/2x , 1/4x], Frame to frame, Pause
Network (Individual setting of resolution, frame rates and picture quality)
Network Interface	Gigabit Ethernet
High Resolution (Pixel)	same as main recording
Low Resolution (Pixel)	480 x 256 stream @ 2,3M, 720p CIF stream @ 960H, Composite
Speed	80fps @ 1080p
Protocol	TCP/IP, HTTP, DHCP
Application	Windows 7 / 8 / 10 (PC Client system& IE) / MAC
Web Browser	Internet Explorer
Smart phone App	Android, iPhone for live and search
Backup
Interface	USB 2.0 x 2
Backup device	External HDD and CD/DVD-RW, Network, Thumb Drive
The number of HDD	2 SATA(No capacity limit ; 10TB or more)
Others
Power Consumption	60W
Operating Temperature	0 ~ 40°C (32 ~ 104°F)
Relative Humidity	Maximum 80% non-condensing
Dimension	385(W) x 315(D) x 52(H) mm
