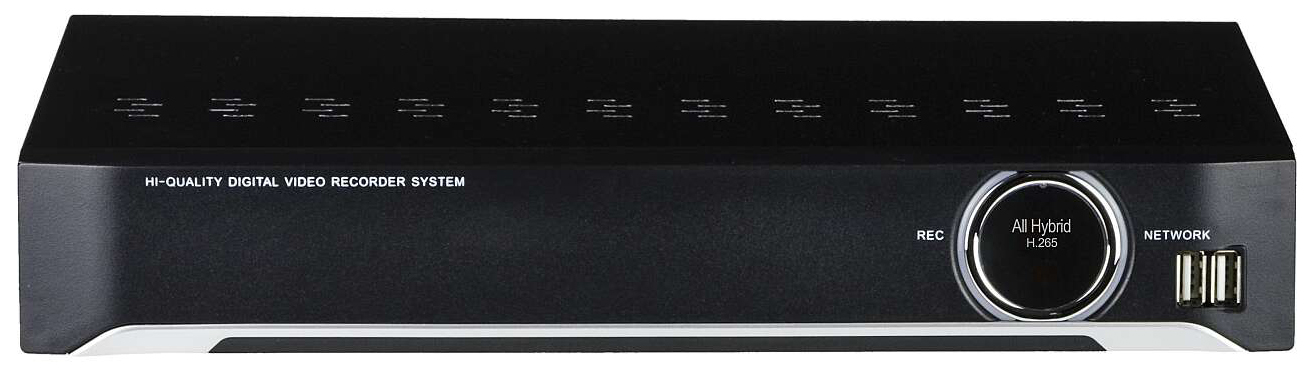

TVST-PVT-04N5 Magic PVT N5 Series PVT-04N5 | 4 CH 3MP H.265 Penta-brid (TVI / AHD / CVI / IP / 960H) DVR System, 1 x SATA

Call Toll Free 866-446-CCTV (2288) Mon-Fri 9am-6PM EST

0 Items $0.00

free shipping

to USA & CANADA

orders $500 and up

Click For Details

Search Product

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

One year warranty on all products

Home

New Arrivals

TVST-PVT-04N5 Magic PVT N5 Series PVT-04N5 | 4 CH 3MP H.265 Penta-brid (TVI / AHD / CVI / IP / 960H) DVR System, 1 x SATA

Additional View

TVST-PVT-04N5 Magic PVT N5 Series PVT-04N5 | 4 CH 3MP H.265 Penta-brid (TVI / AHD / CVI / IP / 960H) DVR System, 1 x SATA

SKU#

:

TVST-PVT-04N5

Regular Price

:

$249.95

Sale Price

:

$189.95

You Save

$60.00(24.00% )

Availability

:

Usually ships the next business day

Hard Drive

:

Warranty

:

Hi-Res Security Monitor

:

Quantity

:

TVST-PVT-04N5 Magic PVT N5 Series PVT-04N5 | 4 CH 3MP H.265 Penta-brid (TVI / AHD / CVI / IP / 960H) DVR System, 1 x SATA

Model	TVST-PVT-04N5
Video
Camera input	4 BNC
Individual HD/Analog selectable	Analog, TVI, AHD, CVI, IP
Available source	TVI/AHD/Analog - upto 3M
IP Camera Spec	ONVIF 2.3, RTSP, H.264, H.265, dual stream use gigabit ethnet hub
IP Camera Num	1
IP Camera Resolution	upto 3M
IP Camera Restriction	Cannot setup Private ZONE Cannot support Timestamp
Output	1 HDMI (Main Display) 1 VGA (Main Display) 1 Composite (Programmable SPOT)
Audio
Audio input	4 RCA
Output	1 RCA
Sensor In	4 (NC, NO selectable)
Alarm out	1 relay
Operating System	Embedded Linux OS
Display
Speed	Real Time
Resolution (Pixel)	1280 x 1024, 1280 x 720, 1920 x 1080
Split screen	1,4
Main Recording
CODEC	H.265
Resolution (Pixel)	2, 3MP or 720p @ 2,3MP input 720p or 960 x 540 @ 720p input 960H or D1 @ Composite, 960H input
Picture quality	4 steps (Super, High, Medium, Low)
Speed	60fps @ 1080p
Dual Recording
CODEC	H.264
Resolution (Pixel)	x
Playback
Display	1,4
Search mode	Calendar, Event ,POS , Panorama, Thumbnail, Bookmark
Speed	30fps @ 1080p
Fast/Slow speed	Normal, REW & FF [recorded speed 2x, 4x, 8x, 16x, 32x, 64x, 1/2x , 1/4x], Frame to frame, Pause
Network (Individual setting of resolution, frame rates and picture quality)
Network Interface	Megabit Ethernet
High Resolution (Pixel)	same as main recording
Low Resolution (Pixel)	480 x 256 stream @ 2,3M, 720p CIF stream @ 960H, Composite
Speed	20fps @ 1080p
Protocol	TCP/IP, HTTP, DHCP
Application	Windows 7 / 8 / 10 (PC Client system& IE)/MAC
Web Browser	Internet Explorer, Safari
Smart phone App	Android, iPhone for live and search
Backup
Interface	USB 2.0 x 2
Backup device	External HDD and CD/DVD-RW, Network, Thumb Drive
The number of HDD	1 SATA(No capacity limit ; 10TB or more)
Others
Power Consumption	24W
Operating Temperature	0 ~ 40°C (32 ~ 104°F)
Relative Humidity	Maximum 80% non-condensing
Dimension	300(W) x 210(D) x 48(H) mm
