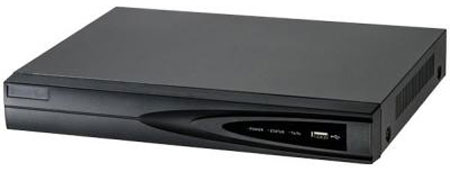

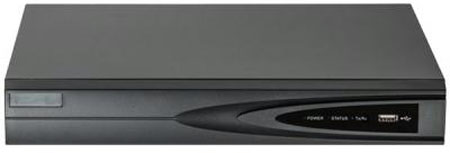

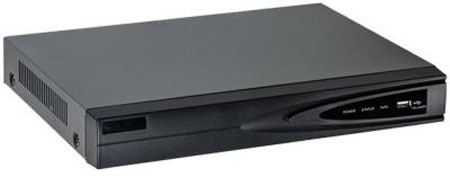

Eyemax TVST-PHD-08T 8CH 1080p HD-TVI Security PHD Series DVR System - Auto Detects Analog/960H/HD-TVI

Additional View

Eyemax TVST-PHD-08T 8CH 1080p HD-TVI Security PHD Series DVR System - Auto Detects Analog/960H/HD-TVI

Model	TVST-PHD-08T
Video/Audio Input
Video Compression	H.264
Analog & HD-TVI Video Input	8Ch / BNC Interface (1.0Vp-p, 75 Ω)
Supported Camera Types	720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS
Audio Compression	G.711u
Audio Input/Two-way Audio In	1-ch, RCA (2.0 Vp-p, 1 KΩ)
VIDEO/Audio Output
HDMI/VGA Output	1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 10 24 × 768 / 60 Hz
Encoding Resolution	Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
Frame Rate	Main stream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate
Video Bitrate	32 Kbps-6 Mbps
Audio Output	1-ch, RCA (Linear, 1KΩ)
Audio Bitrate	64 Kbps
Dual Stream	Support
Stream Type	Video, Video & Audio
Synchronous Playback	8Ch
Playback Resolution	1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Network Management
Remote Connections	128
Network Protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk
SATA	1 SATA Interface
Capacity	Up to 4 TB capacity for each disk
External Interface
Network Interface	1; 10M / 100M self-adaptive Ethernet interface
Serial Interface	1; standard RS-485 serial interface, half-duplex
USB Port	2 x USB 2.0
General
Power Supply	12V DC
Consumption (without hard disks)	≤ 20W
Working Temperature	-10 °C ~+55 °C (14 °F ~ 131 °F)
Working Humidity	10%~90%
Chassis	1U chassis
Dimensions (W x D x H)	315 × 242 × 45mm (12.4 × 9.5 × 1.8 inch)
Weight (without hard disks)	≤ 1.5kg (3.3lb)
