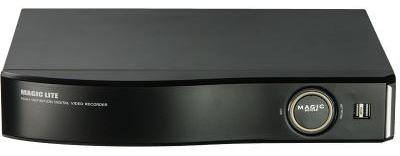

Eyemax TVST-MAGIC-TL16 16CH 1080p HD-TVI Security Magic Lite Series DVR System - Auto Detects Analog/960H/HD-TVI
Discontinued Products
Eyemax TVST-MAGIC-TL16 16CH 1080p HD-TVI Security Magic Lite Series DVR System - Auto Detects Analog/960H/HD-TVI
Eyemax TVST-MAGIC-TL16 16CH 1080p HD-TVI Security Magic Lite Series DVR System - Auto Detects Analog/960H/HD-TVI

Eyemax TVST-MAGIC-TL16 16CH 1080p HD-TVI Security Magic Lite Series DVR System - Auto Detects Analog/960H/HD-TVI
- Full GUI with Alpha Blending
- Individual Setting of Resolution, Frame Rates & Picture Quality
- Instant Replay
- Digital Zoom (Live & Playback)
- Mouse Control
- Weekly Scheduler with Holiday by 10 min Setting
- Covert, Disable & Private Function of Cameras
- Motion Detection with 576 Area Settings
- Relay Alarm Output
- PTZ Control by RS-485
- Daylight Saving Time and Network Time Setting
- Multi-User Authority up to 8 Users
- De-interlacer upon Live & Playback
- 22 Languages with Full Graphic
- Individual Network Port Setting
- Auto Deletion
- Import and Export the Configuration
- POS Interface
- Dual CODEC Engine for Independent Video Transmission
- Interactive Setup via Network
- Full GUI with Alpha Blending
- Individual Setting of Resolution, Frame Rates & Picture Quality
- Instant Replay
- Digital Zoom (Live & Playback)
- Mouse Control
- Weekly Scheduler with Holiday by 10 min Setting
- Covert, Disable & Private Function of Cameras
- Motion Detection with 576 Area Settings
- Relay Alarm Output
- PTZ Control by RS-485
- Daylight Saving Time and Network Time Setting
- Multi-User Authority up to 8 Users
- De-interlacer upon Live & Playback
- 22 Languages with Full Graphic
- Individual Network Port Setting
- Auto Deletion
- Import and Export the Configuration
- POS Interface
- Dual CODEC Engine for Independent Video Transmission
- Interactive Setup via Network
| Model | TVST-MAGIC-TL16 |
| Video | |
| Camera Input | 16 BNC |
| Individual HD/Analog | All Hybrid |
| Available Source | TVI 720p25,30/1080p25,30/Composite/960H/Mixed |
| Output | 1 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 Composite (Programmable SPOT) |
| Audio | |
| Audio Input | 4 RCA |
| Output | 1 RCA |
| Sensor In | 4 (NC, NO selectable) |
| Alarm out | 1 Relay |
| Operating System | Embedded Linux OS |
| Display | |
| Speed | Real Time |
| Resolution (Pixel) | 1280?1024, 1280?720, 1920?1080 |
| Screen Split | 1 / 4 / 6 / 8 / 9 / 13 / 16 |
| Recording | |
| CODEC | H.264 / JPEG for 3G, Dual CODEC |
| Resolution (Pixel) | 1080p (1080p25,30) 720p (720p25,30) 960H, 720H (Composite, 960H) |
| Picture Quality | 4 Steps (Super, High, Medium, Low) |
| Speed | NTSC : 480fps@720p / 240fps@1080p PAL : 400fps@720p / 200fps@1080p |
| Playback | |
| Display | 1 / 4 / 8 / 9 / 13 / 16 |
| Search Mode | Calendar, Event ,POS , Panorama, Thumbnail |
| Speed | NTSC : 120fps@1080p PAL : 100fps@1080p |
| Fast/Slow speed | Normal, REW & FF [recorded speed ?2, ?4, ?8,?16,?32,?64,?1/2,?1/4], Frame to frame, Pause |
| Network | |
| Network Interface | Gigabit Ethernet |
| Speed | 100fps@720p |
| Protocol | TCP/IP, HTTP, DHCP |
| Application | Windows 7 / 8 (PC Client system & IE)/MAC |
| Web Browser | Internet Explorer, Safari, FireFox, Chrome |
| Smart phone App | MR. Patrol : Android, iPhone for Live & Search |
| Backup | |
| Interface | USB 2.0 ? 2 |
| Backup device | External HDD, CD & DVD-RW, Network, Thumb Drive |
| The Number of HDD | 2 SATA (No capacity limit ; 4TB of more) |
| Others | |
| Power Consumption | 60W |
| Operating Temperature | 5 ~40?C(41~104?F) |
| Relative Humidity | Maximum 80% non-condensing |
| Dimension | 13.39(W)?9.84(D)?2.36(H)inches / 340(W)?250(D)?60(H)mm |
