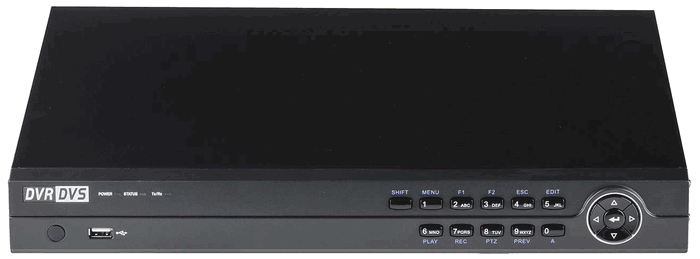

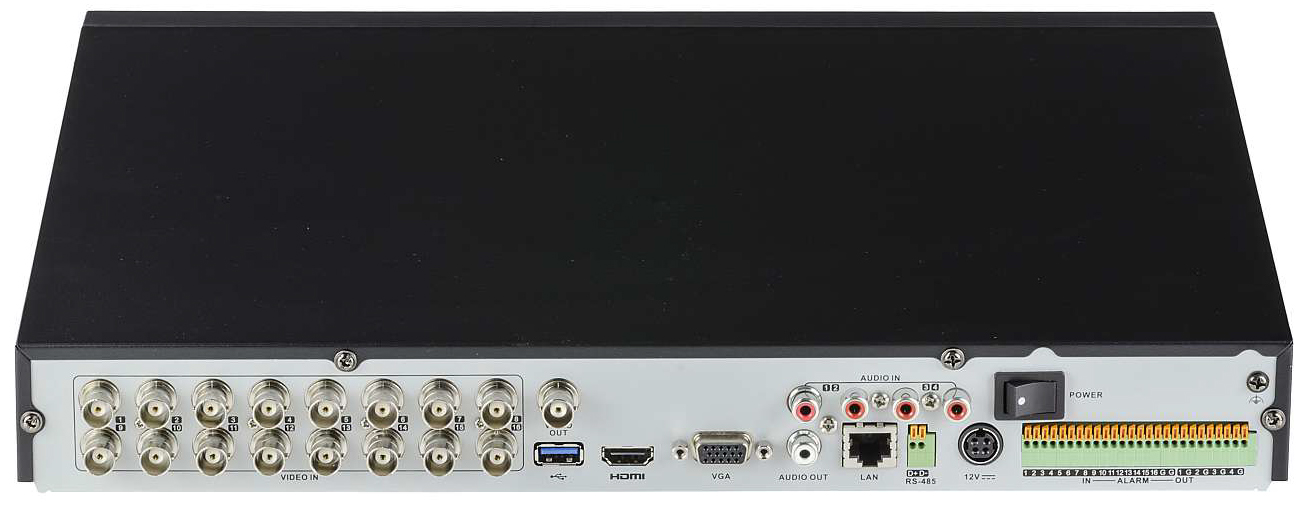

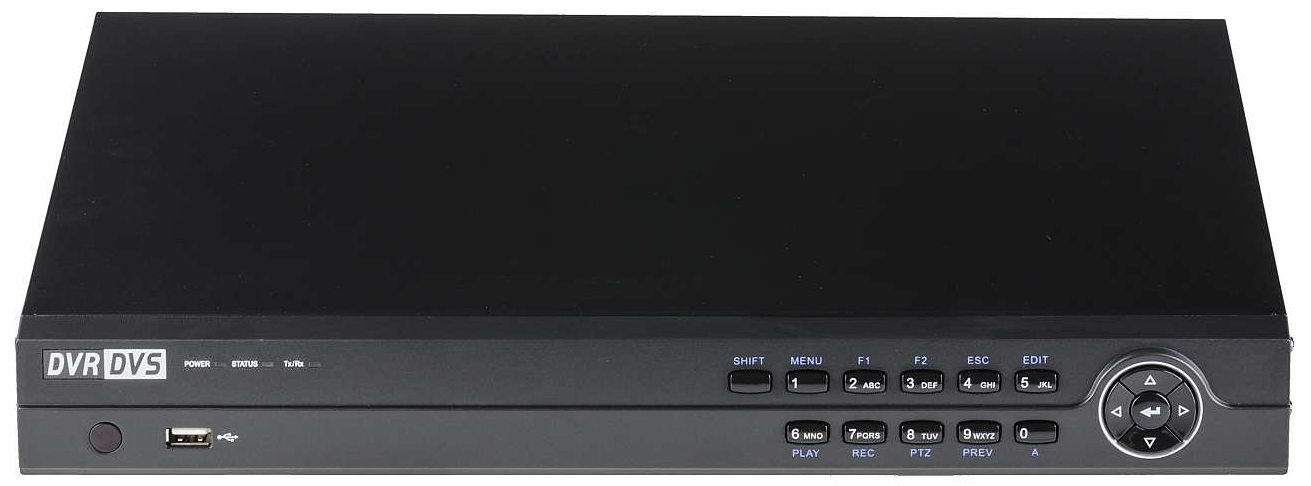

Telpix TVST-AR326-16 16CH DVR / H.265+ / 5MP TVI / CVI / AHD / 6MP IP / 960H / 4K out / 2CH IP / 2xSATA

Additional View

Telpix TVST-AR326-16 16CH DVR / H.265+ / 5MP TVI / CVI / AHD / 6MP IP / 960H / 4K out / 2CH IP / 2xSATA

Model	TVST-AR326-16
Video compression	H.264/H.264+ /H.265/H.265+
Analog, AHD, HD-TVI and HD-CVI video input	16 Ch., BNC interface (1.0Vp-p, 75O)
HDTVI Input	5MP, 3 MP, 1080p, 720p
AHD Input	1080p, 720p
HDCVI Input	1080p, 720p
CVBS Input	PAL/NTSC
IP Video Input	2CH, Up to 6MP Resolution/Supports H.265+/H.265/H.264+/H.264 IP cameras
Audio compression	G.711u
Audio input	4-ch, RCA (2.0 Vp-p, 1 KO)
Video Output	1 HDMI, 1 VGA, 1 CVBS
CVBS Output	PAL/NTSC
VGA output	1920 � 1080@60Hz, 1280 � 1024@60Hz, 1280 � 720@60Hz, 1024 � 768@60Hz
HDMI output	4K(3840 � 2160)@30Hz, 2K(2560 � 1440)@30Hz, 1920 � 1080@60Hz, 1280 � 1024@60Hz, 1280 � 720@60Hz, 1024 � 768@60Hz
Encoding resolution	Up to 5MP @ 12fps for HD-TVI, and up to 6MP @ 20fps for IP camera.
Frame rate	Up to 20fps @ 5MP TVI, and 20fps @ 6MP IP camera
Video bitrate	32 Kbps to 10 Mbps
Audio output	1 Ch., RCA (Linear, 1KO)
Audio bitrate	64 Kbps
Dual-stream	Support
Stream type	Video, Video & Audio
Synchronous playback	16 Ch.
Alarm I/O	16/4
Remote connections	128 Streams
Network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP�, HTTPS, ONVIF
SATA	2 SATA interface
Capacity	Up to 10TB capacity
Network interface	1; 10M/100M/1000M self-adaptive Ethernet interface
Serial interface	1 x RS-485 serial interface
USB port	1 � USB2.0, 1 x USB3.0
Power supply	12 VDC
Consumption (without hard disks)	= 25W
Working temperature	-10 �C ~ +55 �C (14 �F ~ 131 �F)
Working humidity	10% ~ 90%
Dimensions	380 � 320 � 48 mm (15 � 12.6 � 1.9 inch)
Weight (without hard disks)	4.4 lb
