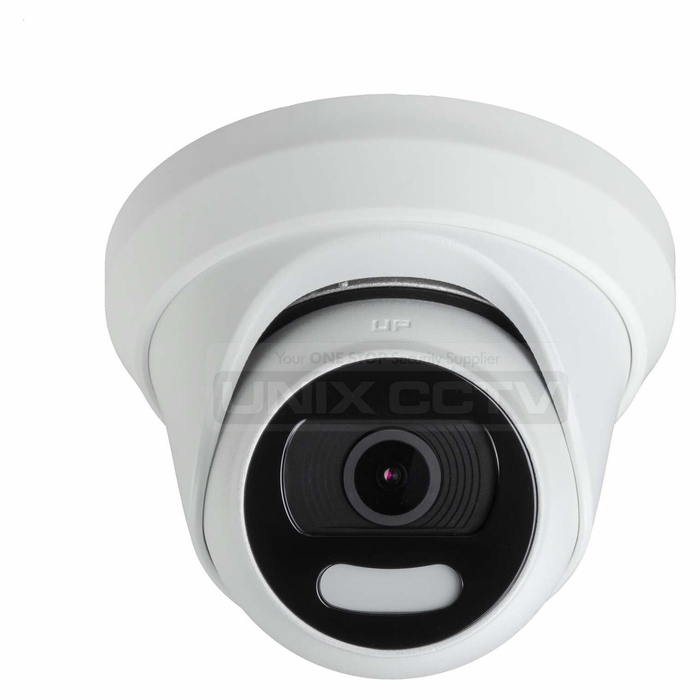

Magic TCU-G2022-W28 Night Color 2MP Outdoor 4-IN-1 Turret Camera

2 MP high performance CMOS • 1920 1080 resolution • Full time color • 2.8 mm fixed lens • Up to 20 m white light distance • OSD menu, 3D DNR, true WDR • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) • IP67 • Up the coax (UTC)

Camera
Image Sensor	2 MP CMOS image sensor
Resolution	1920 (H) × 1080 (V)
Frame Rate	PAL: 1080p@25fps NTSC: 1080p@30fps
Min. illumination	Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time	PAL: 1/25 s to 1/50,000s NTSC: 1/30 s to 1/50,000 s
Slow Shutter	Max. 16x
Lens	2.8mm fixed lens
Lens Mount	M16
Day & Night	Color
Angle Adjustment	Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Synchronization	Internal synchronization
WDR (Wide Dynamic Range)	130 dB
Menu
Image Mode	STD/HIGH SAT
AGC	Yes
White Balance	Auto/Manual
HLC	Yes
BLC (Backlight Compensation)	Yes
Privacy Mask	4 programmable privacy masks
Motion Detection	4 programmable areas
WDR	Yes
Functions	Brightness, Sharpness, 3D DNR, Mirror, Smart light
Interface
Video Output	1 HD analog output
Switch Button	TVI/AHD/CVI/CVBS
General
Operating Conditions	−40 °C to 60 °C (−40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply	12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera.
Power Consumption	Max. 3 W
Protection Level	IP67
Material	Main Body: Metal Mounting Base: Plastic
White Light	Up to 20 m
Communication	Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions	∅ 109.82 mm × 85.56 mm (∅ 4.32″ × 3.37″)
Weight	Approx. 336 g (0.74 lb.)

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Tell A Friend

bookmark site!

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

Magic TCU-G2022-W28 Night Color 2MP Outdoor 4-IN-1 Turret Camera

SKU#

:

TCU-G2022-W28

Regular Price

:

$124.95

Sale Price

:

$96.95

You Save

$28.00(22.41% )

Availability

:

Usually ships the next business day
