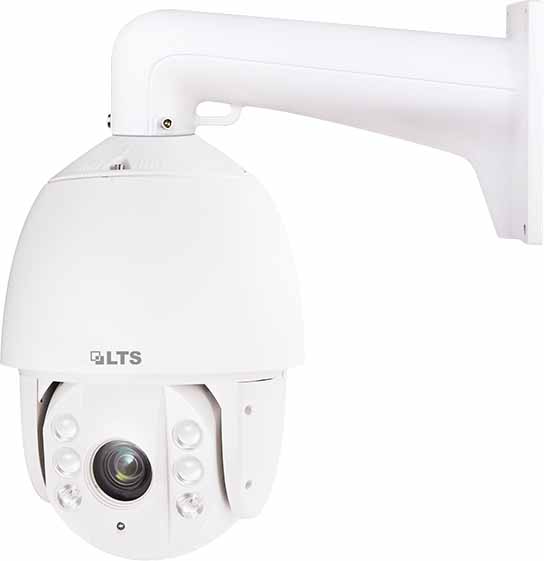

LTS PTZIP772X32WIR Platinum 2MP 32X Network IR Speed Dome

SKU#

:

PTZIP772X32WIR

Regular Price

:

$999.95

Sale Price

:

$819.95

You Save

$180.00(18.00% )

Availability

:

Usually ships the next business day

Mounting Bracket

:

Power Supply

:

Pre-Made Ethernet Cable

:

Quantity

:

LTS PTZIP772X32WIR Platinum 2MP 32X Network IR Speed Dome

Model	PTZIP772X32WIR
Camera Series	Platinum Series
Camera Resolution	2.1MP / 1080P
Camera Technology	IP / Network
Camera Housing	PTZ
Featured Product	No
Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Effective Pixel	1920(H) ×1080(V)
Min. Illumination	Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance	Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC	Auto / Manual
WDR	120dB
Digital Noise Reduction	3D DNR
Backlight compensation	BLC
Shutter Speed	1 ~ 1/30,000s
Day & Night	IR Cut Filter
Digital zoom	16X
Focus Mode	Auto / Semiautomatic / Manual
Privacy Mask	24 programmable privacy masks
Lens
Focal Length	4.8 mm to 153 mm, 32× optical
Zoom Speed	Approx. 5.6 s (optical lens, wide-tele)
Angle of View	Horizontal field of view: 55.6° to 2.04° (Wide-Tele) Vertical field of view: 32.4° to 1.14° (Wide-Tele) Diagonal field of view: 63° to 2.34° (Wide-Tele)
Min. Working Distance	10 ~1500mm (Wide-Tele)
Aperture Range	F1.2 ~ F4.4
Pan and Tilt
Pan / Tilt Range	Pan: 360° endless; Tilt: -15° ~ 90° (Auto Flip )
Pan / Tilt Speed	Pan manual speed: 0.1° ~ 160°/s, Pan preset speed: 240°/s Tilt manual speed: 0.1° ~ 120°/s, Tilt preset speed: 200°/s
Proportional Zoom	Support
Number of Preset	300
Patrol Scan	8 patrols, up to 32 presets per patrol
Pattern Scan	4 pattern scans, record time over 10 minutes for each scan
Power-off Memory	Support
Park Action	Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioning	Support
PTZ Position Display	Support
Scheduled Task	Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
Preset freezing	Support
Local Video and Audio
Network Interface	1 RJ45 10 M/100 M Ethernet, Hi-PoE
Audio input / putput	1-ch audio input and 1-ch audio output
Alarm Interface	2-ch alarm input and 1-ch alarm input
Network
Max. Image Resolution	1920×1080
Frame Rate	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Image Compression	Main Stream: H.265+/H.265/H.264+/H.264
ROI encoding	Main stream, sub-stream, and third stream respectively support four fixed areas.
SVC	Support
Audio Compression	G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View	Up to 20
API	Open-ended, support ONVIF, ISAPI, and CGI, support Third-Party Management Platform
SD Memory Card	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
User/Host Level	Up to 32 users, 3 levels: Administrator, Operator and Use
Security Measures	User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Auto-Tracking	Support
IR
IR Distance	Up to 492ft(150 m)
Smart IR	Support
General
Working Temperature /Humidity	-22°F ~149°F (-30°C ~ 65°C) 90% or less
Power Supply	24 VAC and Hi-PoE, Max.: 40 W (Max. 14 W for IR)
Protection Level	IP66 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension	ϕ 8.66" × 13.91"(ϕ 220 mm × 353.4 mm )
Weight	Approx. 9.92Ibs (4.5Kg)
