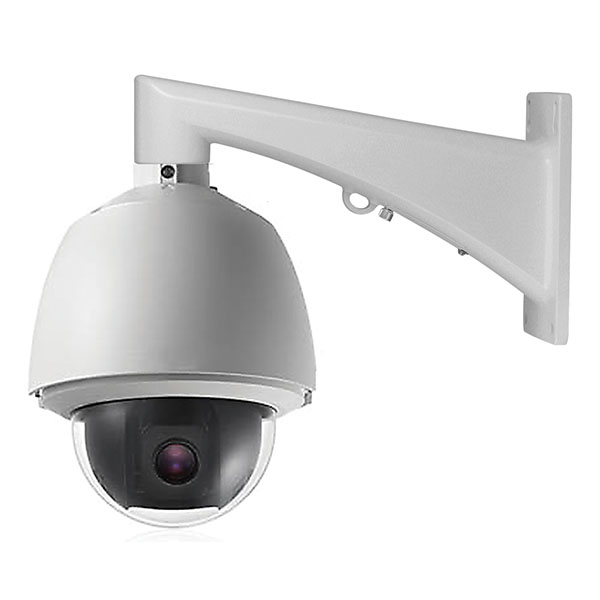

LTS PTZIP742X30 1080P Full HD Resolution 30X Optical Zoom D-WDR PTZ IP Camera

1/2.8”sensor
1080P Full HD resolution
30X optical zoom
True Day/Night, 3D-DNR, D-WDR
3D intelligent positioning
24VAC / PoE+ power supply

Model	PTZIP742X30
Camera
Image Sensor?	1/2.8?? sensor
Effective Pixel	2230K pixels
Min. Illumination	Color: 0.05Lux@F1.6, AGC ON; B/W: 0.01Lux@F1.6, AGC ON)
White Balance	Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC	Auto / Manual
S / N Ratio	≥52dB
Digital Noise Reduction	3D DNR
Backlight compensation	BLC
Wide Dynamic Range	128X Digital WDR
Shutter Speed	1 ~ 1/10,000s
Day & Night	IR Cut Filter
Focus Mode	Auto / Semiautomatic / Manual
Lens
Focal Length	4.3 ~ 129mm, 30x
Zoom Speed	Approx 3s(Optical Wide-Tele)
Angle of View	65.1 ~2.34 degree (Wide-Tele)
Min. Working Distance	10 ~ 1500mm(Wide-Tele)
Aperture Range	F1.6 ~F5.0
Pan and Tilt
Pan / Tilt Range	Pan: 360? endless; Tilt: -5? ~ 90? (Auto Flip )
Pan / Tilt Speed	Pan Manual Speed: 0.1? ~ 250?/s, Pan Preset Speed: 300?/s Tilt Manual Speed: 0.1? ~ 150?/s, Tilt Preset Speed: 200?/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	256
Park action	Pattern/Pan scan/Tilt scan/Frame scan/Panorama scan/Random scan
Patrol	8 patrols, up to 32 presets per patrol
Power-off Memory	Support
Input/ Output
Audio Input	Audio input (Line input), 2 ~ 2.4V[p-p]; output impedance: 1KΩ?10%
Audio Output	Line level, impedance: 600Ω
Network
Ethernet	10Base-T / 100Base-TX, RJ45 connector
Max. Image Resolution	1920?1080
Frame Rate	60Hz: 30 fps (1920?1080),30 fps (1280?960) , 30 fps (1280?720) 50Hz: 25 fps (1920?1080),25 fps (1280?960) , 25 fps (1280?720)
Image Compression	H.264/MPEG4
Audio Compression	G.711u /G.711a /G.726
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View	Up to 6
Streams	Dual Streams
Mini SD Memory Card	Micro SD Slot, up to 32GB
User/Host Level	Up to 32 users, 3 Levels: Administrator, Camera control, Live view only
Security Measures	User authentication (ID and PW), Host authentication (MAC address), IP address filtering
Integration
Application programming	Open-ended API, support Onvif, PSIA and CGI
Web Browser	IE 7, IE 8, IE 9, Chrome 8 +, Firefox 3.5 +, Safari 5 +
General
Working Temperature	-30 ?C ~ 65?C(-22?F ~ 149?F)
/Humidity	90% or less
Power Supply	24 VAC / PoE+;
Power Consumption	Max. 22W?
Ingress protection level	IP66 standard TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimension?	Ω220?305mm (Ω8.66??12.02? without bracket)
Weight	5kg(11.02Ibs without bracket)
