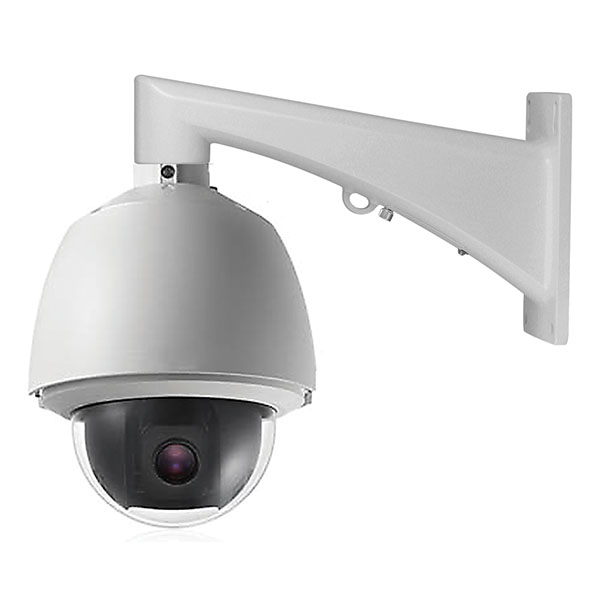

LTS PTZIP741X20 720p 1.3 MegaPixel HD Resolution 20X Optical Zoom PTZ WDR Camera

1/3”sensor
1280 × 960 HD resolution
20X Optical Zoom
True Day/Night, 3D DNR, Digital WDR
3D intelligent positioning

Model	PTZIP741X20
Camera
Image Sensor?	1/3?? sensor
Effective Pixel	1320K pixels
Min. Illumination	Color: 0.05Lux@( F1.4, AGC ON) B/W: 0.01Lux@( F1.4, AGC ON)
White Balance	Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC	Auto / Manual
S / N Ratio	≥50dB
Digital Noise Reduction	3D DNR
Backlight compensation	BLC
Wide Dynamic Range	Digital WDR
Shutter Speed	1 ~ 1/10,000s
Day & Night	IR Cut Filter
Focus Mode	Auto / Semiautomatic / Manual
Lens
Focal Length	4.7 ~ 94.0mm, 20x
Zoom Speed	Approx 3s(Optical Wide-Tele)
Angle of View	58.3 ~ 3.2 degree (Wide-Tele)
Min. Working Distance	10 ~ 1000mm(Wide-Tele)
Aperture Range	F1.4 ~ F3.5
Pan and Tilt
Pan / Tilt Range	Pan: 360? endless; Tilt: -5? ~ 90? (Auto Flip )
Pan / Tilt Speed	Pan Manual Speed: 0.1? ~ 250?/s, Pan Preset Speed: 300?/s Tilt Manual Speed: 0.1? ~ 150?/s, Tilt Preset Speed: 200?/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	256
Park action	Pattern/Pan scan/Tilt scan/Frame scan/Panorama scan/Random scan
Patrol	8 patrols, up to 32 presets per patrol
Input/ Output
Audio Input	Audio input (Line input), 2 ~ 2.4V[p-p]; output impedance: 1KΩ?10%
Audio Output	Line level, impedance: 600Ω
Network
Ethernet	10Base-T / 100Base-TX, RJ45 connector
Max. Image Resolution	1280?960
Frame Rate	60Hz: 30 fps (1280?960) , 30 fps (1280?720) 50Hz: 25 fps (1280?960) , 25 fps (1280?720)
Image Compression	H.264/MPEG4
Audio Compression	G.711u /G.711a /G.726
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View	Up to 6
Streams	Dual Streams
Mini SD Memory Card	Micro SD Slot, up to 32GB
User/Host Level	Up to 32 users, 3 Levels: Administrator, Camera control, Live view only
Security Measures	User authentication (ID and PW), Host authentication (MAC address), IP address filtering
Integration
Application programming	Open-ended API, support Onvif, PSIA and CGI
Web Browser	IE 7, IE 8, IE 9, Chrome 8 +, Firefox 3.5 +, Safari 5 +
General
Working Temperature	-30 ?C ~ 65?C(-22?F ~ 149?F)
/Humidity	90% or less
Power Supply	24 VAC / PoE+;
Power Consumption	Max. 22W?
Ingress protection level	IP66 standard TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimension?	Φ220?305mm (Φ8.66??12.02? without bracket)
Weight	5kg(11.02Ibs without bracket)

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

LTS PTZIP741X20 720p 1.3 MegaPixel HD Resolution 20X Optical Zoom PTZ WDR Camera

SKU#

:

PTZIP741X20

Regular Price

:

$949.95

Sale Price

:

$819.95

You Save

$130.00(13.68% )

Availability

:

Usually ships the next business day

Power Supply

:

Quantity

:
