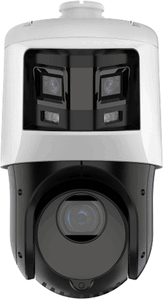

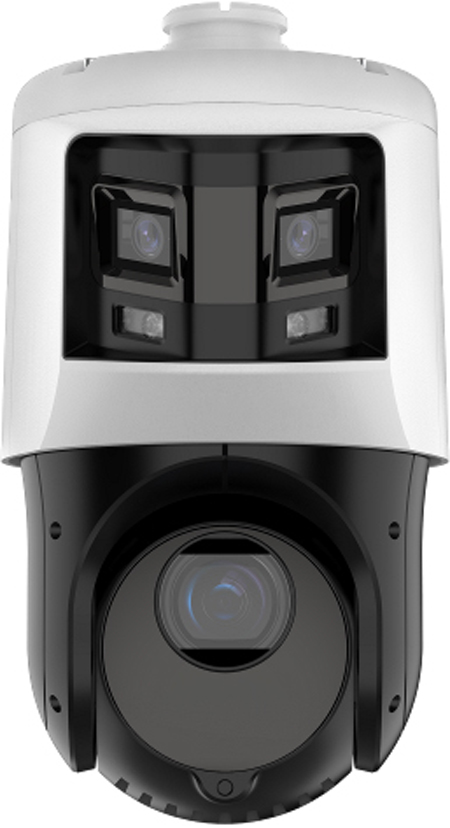

PTZIP4C84W-X25IR LTS 8+4MP 25X Colorful & IR Panoramic & PTZ Camera
PTZIP4C84W-X25IR LTS 8+4MP 25X Colorful & IR Panoramic & PTZ Camera
PTZIP4C84W-X25IR LTS 8+4MP 25X Colorful & IR Panoramic & PTZ Camera
SKU#
:
PTZIP4C84W-X25IR
Regular Price
:
$
948
Sale Price
:
$
729
You Save
$219.00(23.10% )
Availability
:
Usually ships the next business day
Quantity
:
Description
Features
Specifications
Accessories
Downloads
Product Review
PTZIP4C84W-X25IR LTS 8+4MP 25X Colorful & IR Panoramic & PTZ Camera
Captures a large area and great details at the same time
High quality panoramic imaging with 8 MP resolution and details imaging with 4 MP 25x PTZ
Excellent low-light performance with Starlight IR PTZ and Color24/7 Panoramic
Provides details of an expansive area with PTZ 25× optical zoom and 16× digital zoom
Expansive night view with up to 300ft IR distance & 100ft white light
Supports 12V DC & PoE+
Focuses on human and vehicle targets classification
Model
PTZIP4C84W-X25IR
Camera
Image Sensor
Panoramic: 1/2.5" Progressive Scan CMOS; PTZ: 1/2.8" progressive scan CMOS
Max. Resolution
Panoramic: 3840 x 2160 | PTZ: 2560 x 1440
Min. Illumination
Panoramic: 0.0005 Lux @ f 1.0, AGC on
PTZ: Color: 0.005 Lux @ f 1.6, AGC on, B&W: 0.001 Lux @ f 1.6, AGC on
Shutter Speed
1 to 1/30,000 sec.
Slow Shutter
Yes
Day & Night
ICR
Zoom
PTZ: 25 x optical, 16 x digital
White Balance
Auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB
Lens
Focal Length
Panoramic: 2.8 mm; PTZ: 4.8 to 120 mm, 25 x optical
Zoom Speed
PTZ: approx. 3.6 s
FOV
Panoramic: Horizontal field of view: 180 ± 10°, Vertical field of view: 80 ± 5°
PTZ:
• Horizontal field of view: 55° to 2.4° (wide-tele)
• Vertical field of view: 33° to 1.4° (wide-tele)
• Diagonal field of view: 61.5° to 2.8° (wide-tele)
Focus
semi-auto, manual, auto
Aperture
Panoramic: 1.0; PTZ: 1.6
Supplement Lighting
Type
PTZ: IR; Panoramic: White Light
Light
Yes
Range
PTZ: up to 300 ft; Panoramic: up to 100 ft
PTZ
Movement Range (Pan)
360°
Movement Range (Tilt)
-15° to 90° (auto flip)
Pan Speed
Pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
Tilt Speed
Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Zoom
yes
Presets
300
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans
Power-off Memory
yes
Park Action
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning
yes
PTZ Status Display
yes
Preset Freezing
yes
Scheduled Task
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Exception Detection
IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Restart
Video
Region of Interest (ROI)
8 fixed regions for each stream
Main Stream
Panoramic: 20 fps (3840 x 2160)
PTZ: 30 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
Panoramic: 20 fps (1200 x 536, 960 x 432)
PTZ channel: 30 fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
Panoramic: N/A
PTZ:30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Video Compression
H.265,H.264, MJPEG
Video Bit Rate
32 kbps to 16,384 kbps
H.264 Type
Baseline profile, main profile, high profile
H.265 Type
Main profile
H.264+
Yes
H.265+
Yes
SVC
Yes
Audio
Audio Compression
G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
Audio Bit Rates (Kbps)
MP2L2: 32, 40, 48, 56, 64, 80, 96, 112, 128, 144, 160, 192, AAC-LC: 16, 32, 64 , MP3: 8, 16, 24, 32, 40, 48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320
Audio Sampling Rates (kHz)
MP2L2: 16, 32, 48 | AAC-LC: 16, 32, 48
PCM: 8, 16, 32, 48 | MP3: 8, 16, 32, 48
Environment Noise Filtering
Yes
Smart Features
Recording
ANR, Dual-VCA
Network
API
ISAPI, SDK, ISUP, ONVIF
Web Browser
IE11+, Chrome 57+, Firefox 52+, Safari 12+, Edge 79.0.309.65+
Network Storage
NAS (NFS, SMB / CIFS), ANR
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets, SRTP
Simultaneous Live View
20
User / Host
32
Security Measures
Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Client
Guarding Vision
Imaging
Image Settings
Sharpness, saturation, brightness, contrast
Day/Night Switching
Day, night, auto, scheduled-switch
Wide Dynamic Range (WDR)
Panoramic: Digital WDR
PTZ: 120 dB WDR
SNR
≥ 52 dB
Defog
Digital defog
Image Stabilization
EIS
Image Enhancement
BLC, HLC, 3D DNR
Regional Focus
Yes
Regional Exposure
Yes
Image Parameters Switch
Yes
Privacy Mask
Panoramic: up to 8, PTZ: up to 24; mask color or mosaic configurable
Interface
Communication Interface
RJ45, self-adaptive 10/100 Mbps Ethernet port
On-board Storage
Built-in memory card slot supports MicroSD / SDHC / SDXC cards up to 256 GB
Alarm Input
1 alarm input
Alarm Output
1 alarm output
Audio Input
1 audio input, 2.0 to 2.4 Vp-p, 1K Ohm ± 10%
Audio Output
1 audio output, line level, impedance: 600 Ω
Reset
Yes
Event Types
Basic
Motion detection, video tampering alarm, exception, alarm input and output
Smart
Audio exception, region entrance & exiting, intrusion, and line crossing detections
Linkage
Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, and PTZ actions (such as preset, patrol scan, pattern scan)
Smart Linkage
Panorama linkage
Deep Learning Functions
Face Capture
Detects up to 5 faces simultaneously, Supports detecting, tracking, capturing, grading, selecting of faces in motion, and outputs the best face picture
General
General Function
Mirror, watermark, password protection
Power
12V DC, PoE+
Power Consumption and Current
Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
Operating Conditions
-22° to 149° F, humidity lower than 90% RH
Demist
Demist by heating the glass
Materials
ADC12
Dimensions
ø 6.5 x 11.9"
Weight
Approx. 13.2 lb.
Certifications
Protections
IP66; 6,000 V Lightning Protection; Surge Protection and Transient Voltage Protection
