LTS PTZH773X23IR 720P HD TVI NightVision 328ft PTZ Camera 23x Zoom, Indoor/Outdoor

Item Discontinued. Use PTZH512X30IR instead

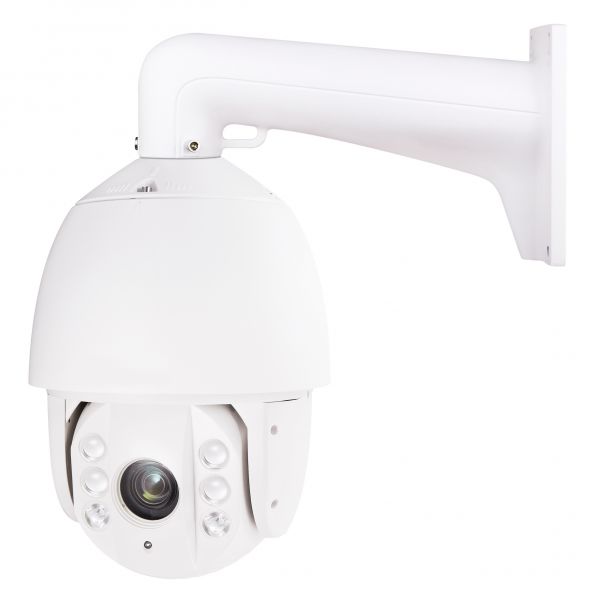

LTS PTZH773X23IR 720P HD TVI NightVision 328ft PTZ Camera 23x Zoom, Indoor/Outdoor

1.3MP CMOS Image Sensor
720P Video Output
Adopts HDTVI Technology
23X optical zoom, 16X digital zoom
OSD Menu via UTC technology
Privacy Masking, 3D DNR, D-WDR, EIS
3D intelligent positioning
True Day&Night

Model	PTZH773X23IR
Camera
Image Sensor?	1 / 3"Sensor
Effective Pixel	1490K
Horizontal Resolution	950TVL
Signal System	PAL / NTSC
Min. Illumination	Color: 0.2Lux@( F1.6,AGC ON) B / W: 0.02Lux@( F1.6,AGC ON)
White Balance	Auto / Manual / ATW / Indoor / Outdoor
AGC	Auto / Manual
S / N Ratio	≥ 50dB
3D DNR	Support
Digital WDR	Support
EIS	Support
Backlight compensation	Support
Shutter Time	1-1/10,000s
Day & Night	IR Cut Filter
Digital Zoom	16X
Privacy Mask	8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen
Focus Mode	Auto / Semiautomatic / Manual
Lens
Focal Length	4-92mm, 23X
Zoom Speed	Approx.4.0s(Optical Wide-Tele)
Angle of View	49-2.2 degree(Wide-Tele)
Min. Working Distance	10-1000mm (Wide-Tele)
Aperture Range	F1.6-F3.7
Pan and Tilt
Pan / Tilt Range	Pan: 360? endless; Tilt: -15? ~ 90? (Auto Flip )
Pan / Tilt Speed	Pan Manual Speed: 0.1? ~160?/s, Pan Preset Speed: 240?/s Tilt Manual Speed: 0.1? ~120?/s, Tilt Preset Speed: 200?/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	256
Patrol	8 patrols, up to 32 presets per patrol
Pattern	4 patterns, with the total recording time not less than 10 minutes
Power-off Memory	Support
Park Action	Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
PTZ Position Display	On / Off
Preset Freezing	Support
Scheduled Task	Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
RS-485 communication diagnosis	Support
Infrared
IR Distance	394ft(120m)
IR Intensity?	Automatically adjusted, depending on the zoom ratio
Input/output
Monitor Output	1 HD TVI output , (1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC)
RS-485 Interface	Half-duplex mode, Pelco-P, Pelco-D protocol
UTC function	Self-adaptive PELCO_C
General
Menu Language	English, Chinese
Power?	24VAC;? Max. 20W (Heater On), Max. 12W(Heater Off);?
Working Temperature	-22?F-149?F(-30 ?C-65?C) 90% or less
Protection Level	IP66 standard TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimension?	Φ8.66"?13.91"(Φ220?353.4mm)
Weight (approx.)	12.13Ibs(5.5kg)
