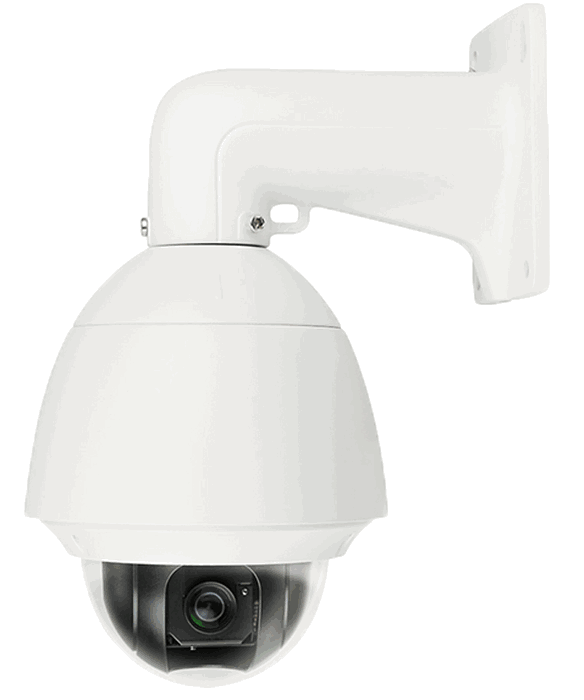

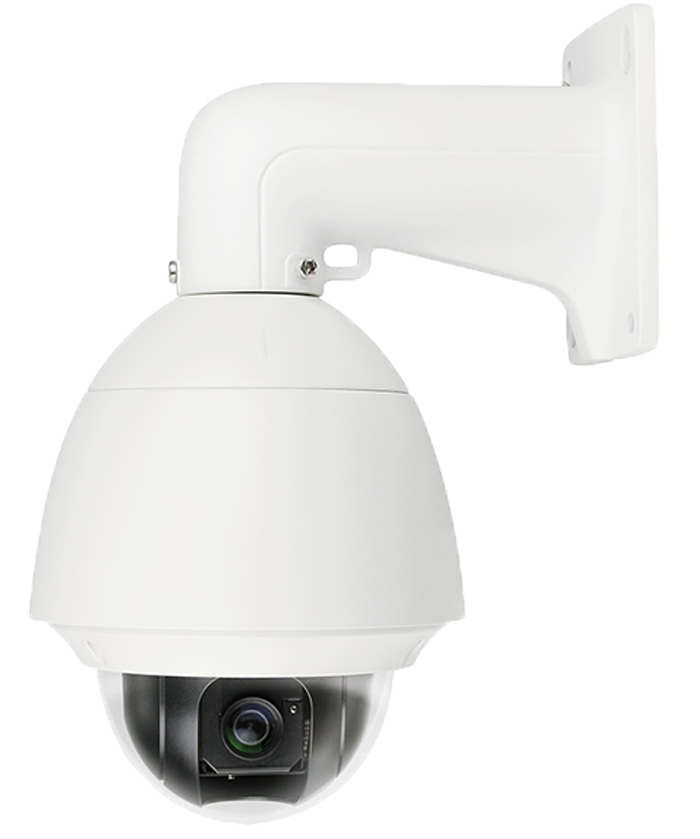

LTS PTZH212X23 2.1MP Platinum HD-TVI PTZ High Speed Dome Camera

Model	PTZH212X23
Camera Series	Platinum Series
Camera Resolution	2.1MP / 1080P
Camera Technology	TVI
Camera Housing	PTZ
Featured Product	No
Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	Color: 0.05Lux@(F1.6, AGC ON); B/W: 0.001Lux@(F1.6, AGC ON)
Max. Image Resolution	1920x1080
White Balance	Auto/Manual/ATW/Indoor/Outdoor
AGC	Auto / Manual
S / N Ratio	≥ 50dB
3D DNR	Support
DWDR	Support
Shutter Time	1/1~ 1/10,000s
Day and Night	IR Cut Filter
Privacy Mask	8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen
Lens
Focal Length	4-92mm, 23x
Digital Zoom	16x
Zoom Speed	Approx.3s (Optical Wide-Tele)
Angle of View	49 - 2.2 degree (Wide-Tele)
Min. Working Distance	10 - 1000mm (Wide-Tele)
Aperture Range	F1.6 ~ F3.5
Focus Mode	Auto / Semiautomatic / Manual
Pan and Tilt
Pan Range	Pan: 360� endless
Pan Speed	Pan Manual Speed: 0.1� ~ 160�/s, Pan Preset Speed: 160�
Tilt Range	0� - 90� (Auto Flip)
Tilt Speed	Tilt Manual Speed: 0.1� - 120�/s, Tilt Preset Speed: 120�/s
Number of Preset	256
Patrol	8 Patrols, Up to 32 Presets Per Patrol
Pattern	4 Patterns, with the total recording time not less than 10 minutes
Park Action	Preset/Patrol/Pattern/Pan scan/Tilt scan/ Random Scan/Frame scan/Panorama scan
RS-485 Communication Diagnosis	Support
Input/Output
HD Output	1 1080P output, 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
CVBS Output	1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
Alarm Input	2
Alarm Output	1
RS-485 Interface	Half-duplex mode;Self-adaptive Pelco-P, Pelco-D protocol
Infrared
IR Intensity	Automatically adjusted, depending on the zoom ratio
General
Power	24V AC, Max. 12W
Working Temperature/ Humidity	-30 �C-65�C(-22�F-149�F)/90% or less
Dimensions	Φ7.3��13.0�(Φ185�330mm)
Weight	8.8lbs(4.0kg)
