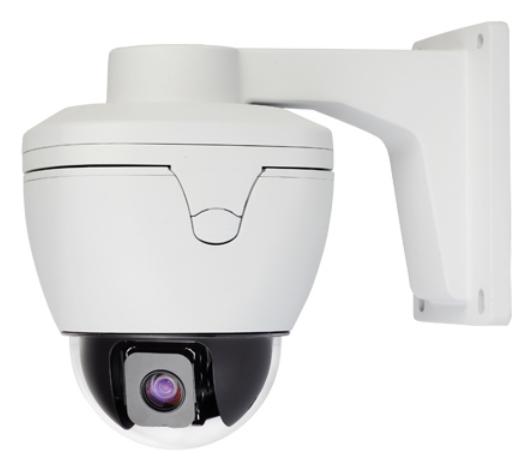

PT9200-SDI 1/3" Panasonic CMOS Lens 1080P Resolution 3X Optical SDI PTZ Camera

Call Toll Free 866-446-CCTV (2288) Mon-Fri 9am-6PM EST

0 Items $0.00

to USA & CANADA

One year warranty on all products

Integrated structure, convenient and fast installation
Built-in heater and radiating system. 4 alarms input.
1 alarm output as factory default, IP board is optional
Built-in 36 x zoom (3x optical, 12x digital)
50%. High Sensitivity Mode: 0.25 lx (F1.2. ICR off); 0.03 lx (F1.2. ICR on)
50% Normal Mode: 1.0 lx (F1.2. ICR off): 0.1 lx (F1.2. ICR on)
Signal System : 1080p/25, 1080L/60 (30 PsF), 1080i/50 (25 PsF) 720p/60, 720p/50. 720p/30, 720p/25
128 presets(titles can be set).
4 tours; 8 programmable zones(titles can be set); 4 pattern, each record time is more than 180 seconds;4 scan, support camera scanning repeatly between right limit and left limit at an appointed speed.
Park action function, can auto-call presets or start-up tour, pattern, scan and display areas after dome is idle for period of time.
All-in-one. highly compact camera ideal for demanding applications such as video surveillance, public transportation. sports, video conferencing and more
Screen will display pan/tilt position, zoom etc.
IP66 all-day defend cover.
Built-in TVS1500W lightning-proof, surge-proof and wave-proof.

	PT9200-SDI
Sensor	1/3" Sony Original Zoom Camera
Scanning System	2:1 Interlacing
Effective Pixels	Approximately 3.27 Megapixels
White Balance	Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto), One-push, Manual
Back-Compensation	Off /Auto
Focus	f=3.0 mm (wide) - 9.00 mm (tele) F1.2 to F2.1
Shutter	1s-1/10.000s
Manual Speed	Pan (0.5? - 160? /s) , Tilt (0.5? - 90? /s)
Preset Speed	320? /s
Rotation	Continuously 360? ; Tilt 0? ~ 90? with Auto-Flip
Speed Proportion	As the Length of Focus, to auto-adjust the speed
Preset	128 preset, title can be edited
Auto-flip	Tilt down 90?; with auto-flip 180?
Scan	355? Programmable, 4 Scans
Display Zone	8 programmable zones with titles
Sync Model	Internal
Decoder	Built-in
Video Output	Female BNC
Remote Controlling	RS 485
Baud Rate(RS485)	2400 / 4800 / 9600 / 19200 bps
ID Range	1 ~ 254
Temperature	-22?F ~ 155?F
Humidity	0 ~ 95%
Protection Grade	IP 66, 150W lightning-proof, Surge-Proof, All-day Defend Cover
Pwer Supply	AC 24V
Power Consumption	< 12 W
