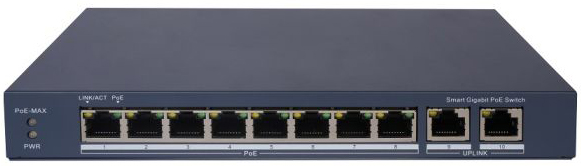

POE-SWC802G LTS 8 Port Gigabit Cloud enabled Unmanaged POE Switch,110W, 2 Uplinks *Cloud function requires additional subscription.

Model	POE-SWC802G
Network Parameters
Ports	8 x Gigabit PoE port,2 x Gigabit RJ45 port
MAC Address Table	4 K
Switching Capacity	20 Gbps
Packet Forwarding Rate	14.88 Mpps
Internal Cache	1.5 Mbits
PoE Power Supply
PoE Standard	IEEE 802.3af, IEEE 802.3at
PoE Power Pin	End-span: 1/2(-), 3/6(+)
PoE Port	PoE: Ports 1 to 8
Max. Port Power	30 W
PoE Power Budget	110 W
Software Function
Long Range	Ports 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition.
Port Isolation	Ports 1 to 8: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog	Ports 1 to 8: auto detect and restart the cameras that do not respond.
Link Aggregation	Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 3 aggregation groups.
Loop Prevention	Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Suppport 802.1w RSTP.
VLAN	VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN.
LPP*	Support one-click activation and remote management via LPP. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device.
System Maintenance	Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support remote management via LPP. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support SNMP v1/v2c for third-party management platform access. Support port mirroring for fault locating.
General
Dimensions (W x H x D)	217.6 mm x 27.6 mm x 108.5 mm (8.57" x 1.09" x 4.27")
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Installation Mode	Desk-Mounted, Wall-Mounted
Gross Weight	1.27 kg (2.8 lb)
Net Weight	0.54 kg (1.19 lb)
Power Consumption in Idle	2.7 W
Shell	Metal material
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity	5% to 95% (no condensation)
Power Supply	54 V DC, 2.22 A
Max. Power Consumption	120 W
Relative Humidity	5% to 95% (no condensation)
Surge Protection	6 kV

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Tell A Friend

bookmark site!

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

POE-SWC802G LTS 8 Port Gigabit Cloud enabled Unmanaged POE Switch,110W, 2 Uplinks *Cloud function requires additional subscription.

SKU#

:

POE-SWC802G

Regular Price

:

$189.95

Sale Price

:

$149.95

You Save

$40.00(21.06% )

Availability

:

Usually ships the next business day
