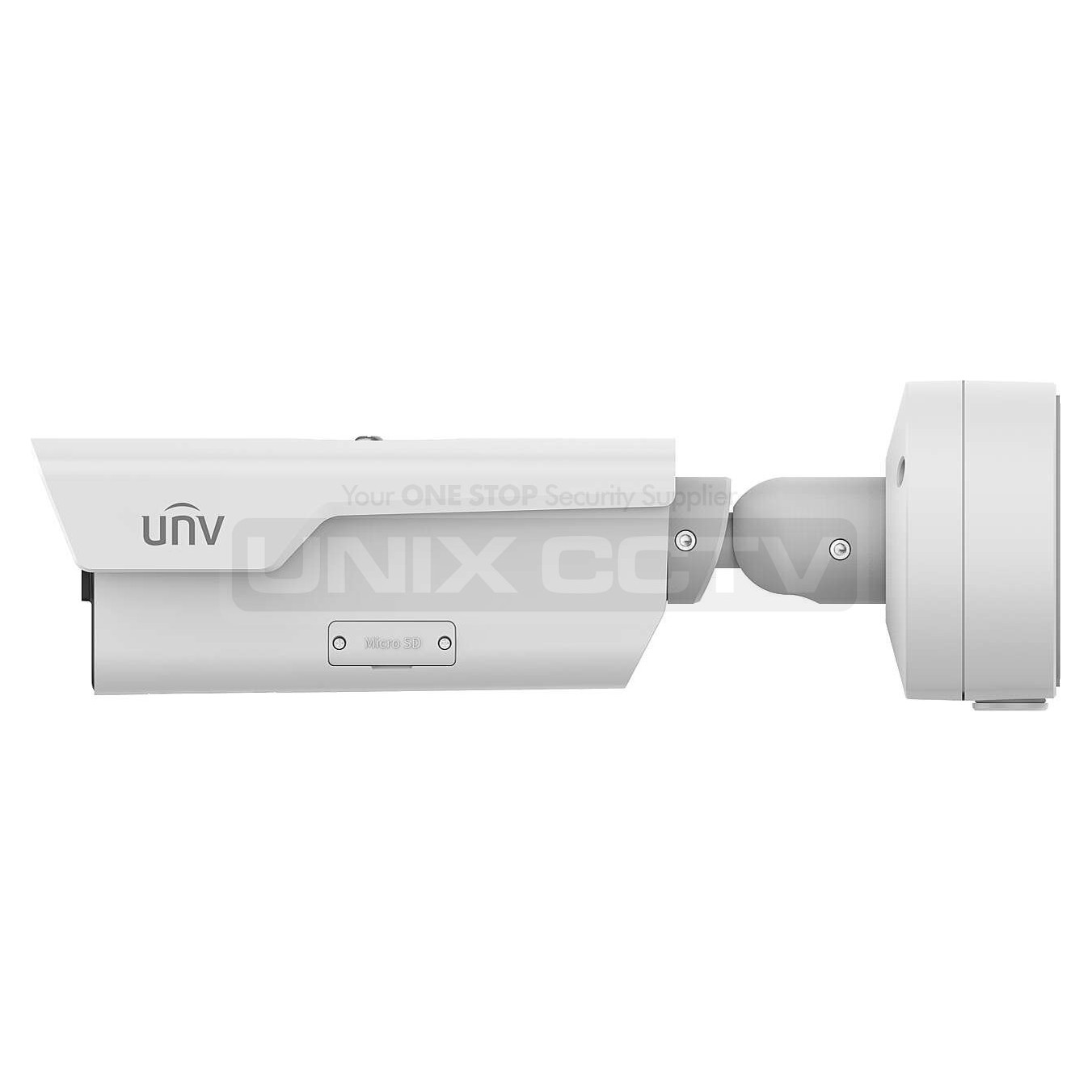

UNV PKC2640@Z80-P 4MP License Plate Capture Camera

Vehicle detection • License plate number recognition • ≤ 49.71mph (80km/h) for regular roads • 1 / 1.8″ CMOS 4MP • 0.002 lux (F1.7) • H.264 (default) / H.265 • 8-32mm VF, Motorized • 164 ft (50m) WL Distance • IP67 + IK10 • 12VDC / PoE+(at) • Micro SD Slot / up to 256 GB

Camera
Sensor	1 / 1.8-inch 4MP CMOS
Focal length	8 to 32mm
Shutter	Auto / Manual, range: 1 / 30 to 1 / 100000s
Minimum illumination	0.002lux (F1.7)
FOV	Horizontal FOV: 42.4° to 15.9° Vertical FOV: 23.9° to 9.8° Diagonal FOV: 52.5° to 17.8°
WDR	120 dB
Image collection format	26881520@30 (default), 26881520@25
Frame rate	30 (default), 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1
Video compression	H.264 (default), H.265
ROI	Supports up to 8 regions
Video OSD	Supports 8 overlay areas and allows contents including date, time, date&time, zoom ratio, custom contents
Image OSD	Supports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom contents (3 items), location
Display Parameters
Resolution	Main stream: 2688*1520, 1080P (default), 720P, D1; Sub stream: 720P (default), D1, 2CIF, CIF; Third stream: D1 (default), 2CIF, CIF
Smart
Application scenario	≤ 80km / h for regular roads; Camera with the focal length of 8 to 32mm can be used for regular roads
Vehicle detection mode	Supports video detection
License plate number recognition	Supports recognition of license plates with numbers and letters by default
List configuration	Supports allowlist and blocklist configuration, each list allows 20,000 items Supports import, export, add, and delete operations
Barrier opening policy	Open barrier only for the recognized vehicles Open barrier for all vehicles Open barrier only for vehicles on the allowlist Open barrier for vehicles not on the blocklist Configurable Boolean output ID
Storage
Edge storage	Supports ANR with a Micro SD card, up to 256GB
Structure
Illumination	Built-in integrated illumination module, including 4 warm light LEDs, 50m illumination distance, automatic on / off control
Bracket	3-axis mounting bracket
Junction box	The camera comes with a junction box for storing tail cable
Network
Protocols	IGMP,IPv6,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTSP,DNS,DDNS,NTP,UPnP,HTTP,HTTPS,802.1x,SNMP,QoS,SSL / TLS,SSH,IPv4
Compatible Integration	ONVIF (Profile S, Profile G, Profile T),SDK,
	API
Interface
Network interface	1 × 10M / 100M RJ45
Serial port	1 × RS485
Boolean output	1 relay output, withstand voltage: AC 125V / 0.3A, DC 30V / 1A
Boolean input	2 x input, supports level (up to DC 5V) and switch signal
Audio interface	1 × audio input, 1 × audio output
Storage interface	1 × Micro SD card slot
BNC	PAL,NTSC
Reset button	Support
General
Power supply	DC12V + 25% ~ 10% Max. power consumption: 20W Supports PoE (802.3at, class 4)
Dimensions (L×W×H)	406mm × 126mm × 130mm
Weight	2.1kg
Operating environment	−40°C to 60°C, ≤90% RH
Ingress protection	IP67, IK10
Heater	N/A
