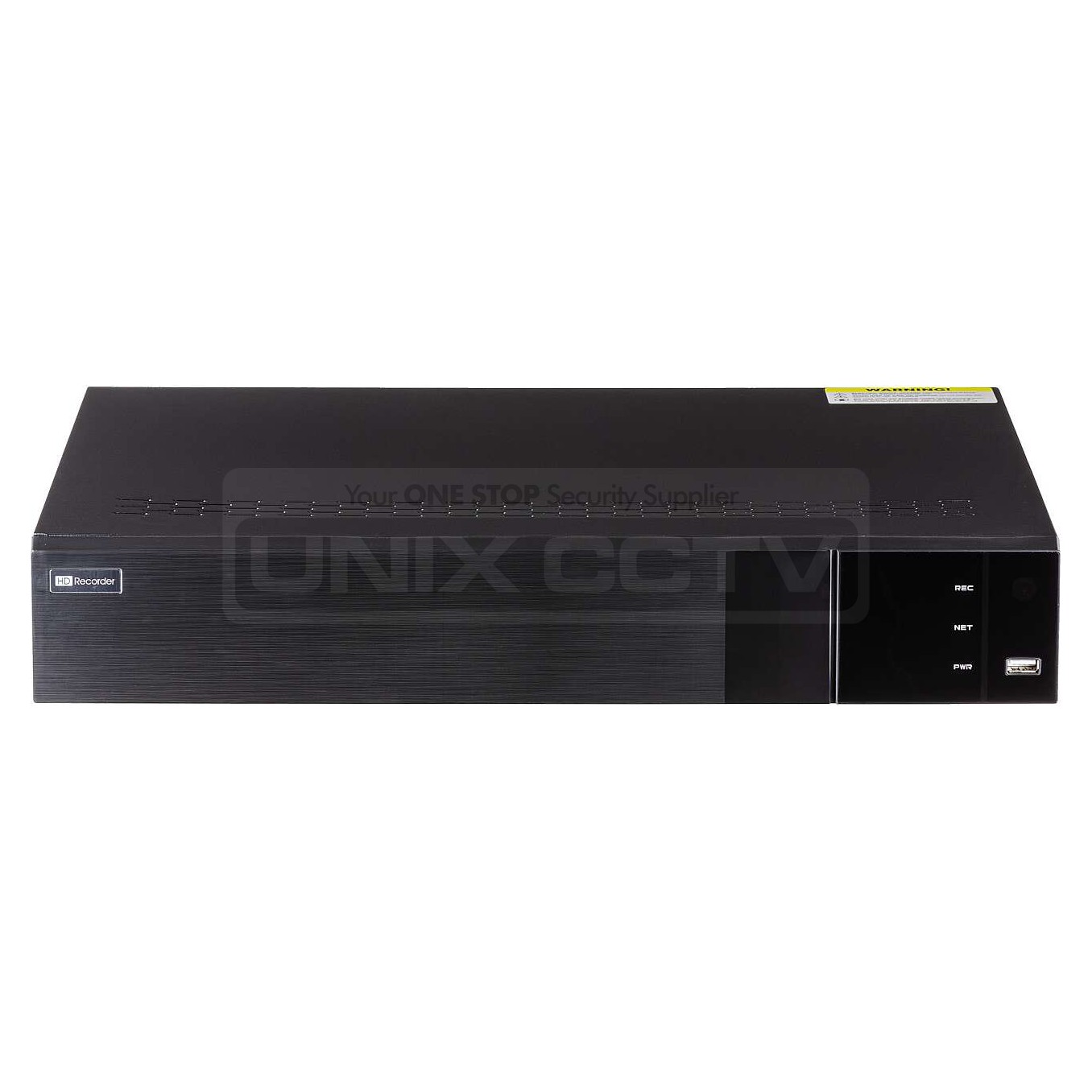

IP POWER NVST-TS6032A-16E 6000 Series 32CH Intelligent NVR

NDAA Compliant • 16 PoE • ≤ 150W PoE Output (AF/AT) • 320Mbps In /256Mbps Out Bandwidth • Face Detection 32CH (IPC) / 2CH (NVR) • Human/Vehicle Detection • License Plate Detection (IPC) • Fisheye Dewarp • Up to 12MP IP • Up to 12MP Recording • 4 × SATA / 1 × eSATA • 2 HDMI / 1 VGA • 2 × Gigabit Ethernet

System
OS	Embedded Linux
Video
Compression	H.265S/H.265+/H.265/H.264
IP Video Input	32CH IPC input
Resolution	12MP/9MP/8MP/6MP/5MP/4MP/3MP/1080P/1280 × 1024/960P/ 720P/960H/D1/CIF
Network Bandwidth	320Mbps/256Mbps (incoming/outgoing)
Output	HDMI1 : 3840 × 2160/1920 × 1080 / 1280 × 1024 / 1024 × 768 HDMI2 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA and HDMI1 output the same video source
Multi-screen Display	Main output: 1/4/6/8/9/13/16/25/32/36 (live view) AUX output: 1/4/6/8/9 (live view) Max. 32+9CH local live view
Audio
Network Input	32 CH IPC audio input
2-way Audio	RCA × 1
Local Output	RCA × 1
Compression	G.711(U/A)
Record
Record Stream	Dual stream recording
Resolution	12MP/9MP/8MP/6MP/5MP/4MP/3MP/1080P/1280 × 1024/960P/ 720P/960H/D1/CIF
Frame Rate	12MP: 20fps; 9MP or lower resolution: NTSC: 30fps; PAL: 25fps
Playback
Simultaneous Playback	Max 16CH
Search	Time slice / time / event / tag / smart search
Smart Search	Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
Function	Play, pause, FF, FB, digital zoom, etc.
Decoding Capability
Live View/ Playback	1CH 12MP/4CH 1080P
Alarm
Mode	Manual, sensor, motion, exception, smart events, etc.
Input	16 CH local alarm input
Output	4 CH
Triggering	Record, snap, preset, e-mail, etc.
Face
Face Detection Performance (AI by IPC)	32CH
Face Detection Performance (AI by Device)	2 CH
Face Match Performance	6 CH
Comparison Capability	18 pictures / second
Face Picture Database	32 libraries 10000 Face Pictures
Face Picture Search	Search by picture is supported
Database Management	Add, modify, delete and search face pictures
Face Picture Adding	Add face pictures through APP, WEB and external import
Face Picture Comparison	Support successful face recognition alarm and stranger match alarm
Track	Track display on a map
Statistical Graph of Information	Bar graph
Statistical Mode of Information	Statistics by day, week, month, quarter as well as customized time period
Video Structure Analysis
Human/Vehicle Classification	Yes
Other Functions
Fisheye	Supports fisheye dewarping via Web Client and mobile APP
Plate Recognition (AI by IPC)	Yes
Network
Interface	RJ 45 1000 Mbps × 2
Protocol	TCP / IP, HTTP, HTTPs, 802.1X, FTP, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, IPv4, UDP, WebSocket, PPPoE, SNMP, IGMP
Client Connection	Max. 128 users access
PoE
PoE Port	RJ 45 100Mbps × 16
Standard	IEEE802.3AF/AT
Output Power	≤ 150W
Mobile Device
OS	iOS, Andriod
Storage
HDD Interface	SATA × 4, max 10T for each HDD
E-SATA Interface	E-SATA × 1
Backup
Local Backup	U disk, USB mobile HDD
Network Backup	Yes
External Interface
RS 485	Yes (full-duplex), connect to PTZ or keyboard
USB	USB 3.0 × 1 ; USB 2.0 × 2
Remote Controller	Optional
Others
Power Supply	ATX 300W(PoE)
Consumption	≤ 20W ( without HDD and PoE power supply )
Certificate	CE, FCC
Environmental Protection	Complies with Directive EU RoHS, REACH and WEEE
Dimensions(mm)	440 × 390 × 70( W × D × H )
Working Environment	−10 〜 50 °C，10% 〜 90% humidity
