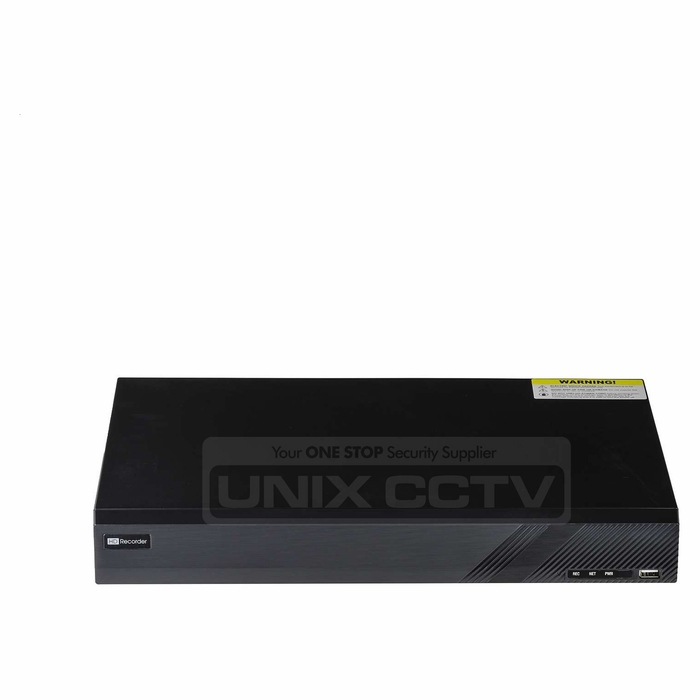

IP POWER NVST-TS6016A-16E 6000 Series 16CH Intelligent NVR

NDAA Compliant • 16 PoE • ≤ 150W PoE Output (AF/AT) • 160Mbps In/Outgoing Bandwidth • Face Detection 16CH (IPC) / 2CH (NVR) • Human/Vehicle Detection 16CH (IPC) / 2CH (NVR) • License Plate Detection (IPC) • Fisheye Dewarp • Up to 8MP IP • Up to 8MP Recording • 2 × SATA • 1 HDMI / 1 VGA • 1 × Gigabit Ethernet

Video
Network Input	16CH IPC input
Network Input Resolution	8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280 × 1024 / 960P / 720P / 960H / D1 / CIF
Output	HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA: 1920 × 1080 / 1280 × 1024 / 1024 × 768
Screen Display Mode	1 / 4 / 6 / 8 / 9 / 13 / 16
Compression	H.265S / H.265+ / H.265 / H.264
Audio
Network Input	16 CH IPC audio input
Local Input	RCA × 1 (for two-way audio)
Local Output	RCA × 1
Compression	G.711(U/A)
Record
Resolution	8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280 × 1024 / 960P / 720P / 960H / D1 / CIF
Frame Rate	NTSC:30fps; PAL:25fps
Playback
Simultaneous Playback	Max.16 CH
Search	Time slice / time / event / tag / smart search
Smart Search	Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
Function	Play, pause, FF, FB, digital zoom, etc.
Decoding Capability
Live View / Playback	1 × 8MP@30fps; 6 × 1080P@30fps
Alarm
Mode	Manual, sensor, motion, exception, smart events
Input	Supports IPC alarm input
Output	Supports IPC alarm output
Triggering	Record, snap, preset, e-mail, etc.
Network
Interface	RJ 45 × 1 (10/100/1000Mbps)
Protocol	TCP / IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, HTTP, SMTP, HTTPs, 802.1x, RTSP, RTP, RTCP, WebSocket, SNMP, IGMP, ONVIF
Incoming / Outgoing Bandwidth	160 / 160(Mbps) *When the AI function of the IPC is enabled, the actual incoming bandwidth(max.bitrate) is more than the set value in the NVR.
Client Connection	Max. 64 users access
Face
Face Detection Performance (AI by IPC)	16 CH
Face Detection Performance (AI by Device)	2 CH
Face Match Performance	No
Statistical Graph of Information	Bar graph
Statistical Mode of Information	Statistics by day, week, month, quarter as well as customized time period
Video Structure Analysis
Human / Vehicle Classification (AI by IPC)	16 CH
Human / Vehicle Classification (AI by Device)	2 CH
Human / Vehicle Attribute Analysis	Yes (AI by IPC)
Other Functions
Fisheye	Supports fisheye dewarping via Web Client and mobile APP
Plate Recognition (AI by IPC)	Yes
Mobile Device
OS	iOS, Andriod
Storage
HDD Interface	SATA3.0 × 2, max 10T
Backup
Local Backup	U disk, USB mobile HDD
Network Backup	Yes
Port
USB	USB 2.0 × 2
Remote Controller	Optional
PoE
PoE Ports	100M RJ45 × 16
Standards	IEEE802.3AF / AT
Output Power	≤ 150W
Others
Power Supply	DC 48V / 3.75A
Consumption	≤ 10W ( without HDD )
Dimensions (mm)	380 × 268 × 45 ( W × D × H )
Working Environment	−10～50°C, 10% ～ 90% humidity
Certificate	CE, FCC
Environmental Protection	Complies with Directive EU RoHS, REACH and WEEE
