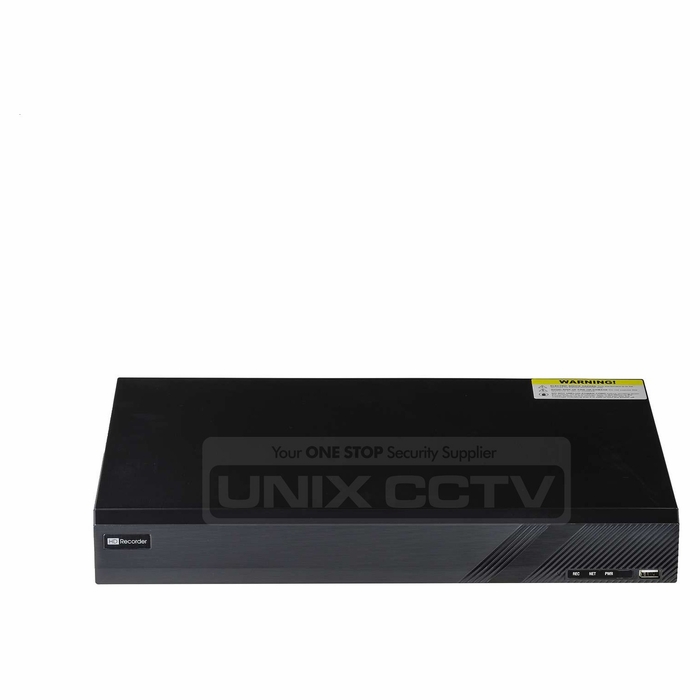

IP POWER NVST-TS5416-16FE TS series 5416-16FE | Face Recognition 16Ch Network Video Recorder (NVR), 16 PoE port, H.265, up to 8MP (4K), HDMI, 112Mbps Bandwidth, 2 × SATA

System
Compression	Standard H.265/H.264
OS	Embedded Linux
Video
Network Input	16CH IPC input
Network Bandwidth	160Mbps/160Mbps (access/transfer)
Network Access Format	8MP/ 6MP/ 5MP/4MP/3MP/1080P/ 1280×1024 / 960P/720P/D1/CIF
Output	HDMI × 1 : 3840×2160@60fps/ 3840×2160@30fps/ 1920×1080/ 1280 ×1024 /1024 ×768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
Audio
Network Input	16 CH IPC audio input
2-way Audio	RCA × 1
Local Output	RCA × 1
Record
Record Stream	Dual stream recording
Resolution	8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280×1024 / 960P / 720P / D1 / CIF
Frame Rate	NTSC: 30fps; PAL:25fps
Mode	Manual, timer, motion, sensor
Playback
Simultaneous Playback	Max 16 CH
Search	Time slice / time / event / tag search
Smart Search	Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
Function	Play, pause, FF, FB, digital zoom, etc.
Alarm
Mode	Manual, sensor, motion, exception
Input	8 CH local alarm input, support 8CH IPC alarm input
Output	4 CH
Triggering	Record, snap, preset, e-mail, etc.
Face
Channel	16 CH
Face Picture Database	16 libraries 10000 Face Pictures
Computing Capability	240 pictures / minute
Face Picture Search	Search by picture is supported
Database Management	Add, modify, delete and search face pictures
Face Picture Adding	Add face pictures through APP, WEB and local PC
External face picture enrollment	Resolution : 64 x 64 ～ 1920 x 1080 Size : less than 200KB Format : jpg
Face Picture Comparison	Support allow list and block list alarm
Face Trace	Yes
Map of Face Trace	Reolution : 600 x 300 ～ 3840 x 2160 Size : within 200KB Format : jpg
Statistic Graph of Face Information	Bar graph, pie chart
Statistic Mode of Face Information	Statistics by day, week, month, quarter as well as customized time period
Network
Interface	RJ 45 1000 Mbps × 1
PoE Port	RJ 45 × 16 (IEEE802.3af; output power: ≤ 150W)
Protocol	TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
Web Client	Multiple users online
Mobile Device
OS	iOS, Andriod
Storage
HDD	SATA3.0 × 2, max 8T per HDD
Backup
Local Backup	U disk, USB mobile HDD
Network Backup	Yes
Port
RS 485	RS485 × 2, connect to PTZ or keyboard
USB	USB 2.0 × 1 , USB 3.0 × 1 ( one in the front panel and the other in the rear panel )
Remote Controller	Optional
Others
Power Supply	DC48V / 3.75A
Consumption	≤ 15W ( without HDD )
Dimensions (mm)	380 × 268 × 45 ( W × D × H )
Work Environment	− 10 ～ 50°C, 10% ～ 90% humidity

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Tell A Friend

bookmark site!

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

IP POWER NVST-TS5416-16FE TS series 5416-16FE | Face Recognition 16Ch Network Video Recorder (NVR), 16 PoE port, H.265, up to 8MP (4K), HDMI, 112Mbps Bandwidth, 2 × SATA

SKU#

:

NVST-TS5416-16FE

Regular Price

:

$489.95

Sale Price

:

$375.95

You Save

$114.00(23.27% )

Availability

:

Usually ships the next business day
