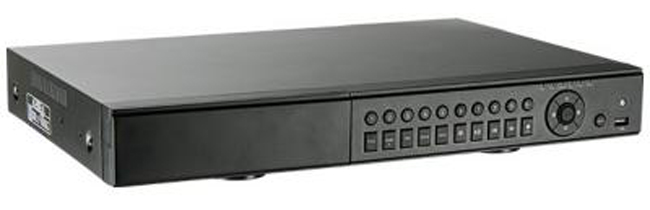

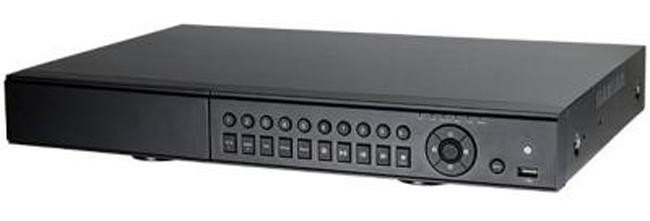

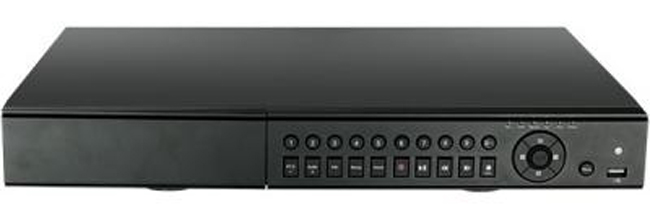

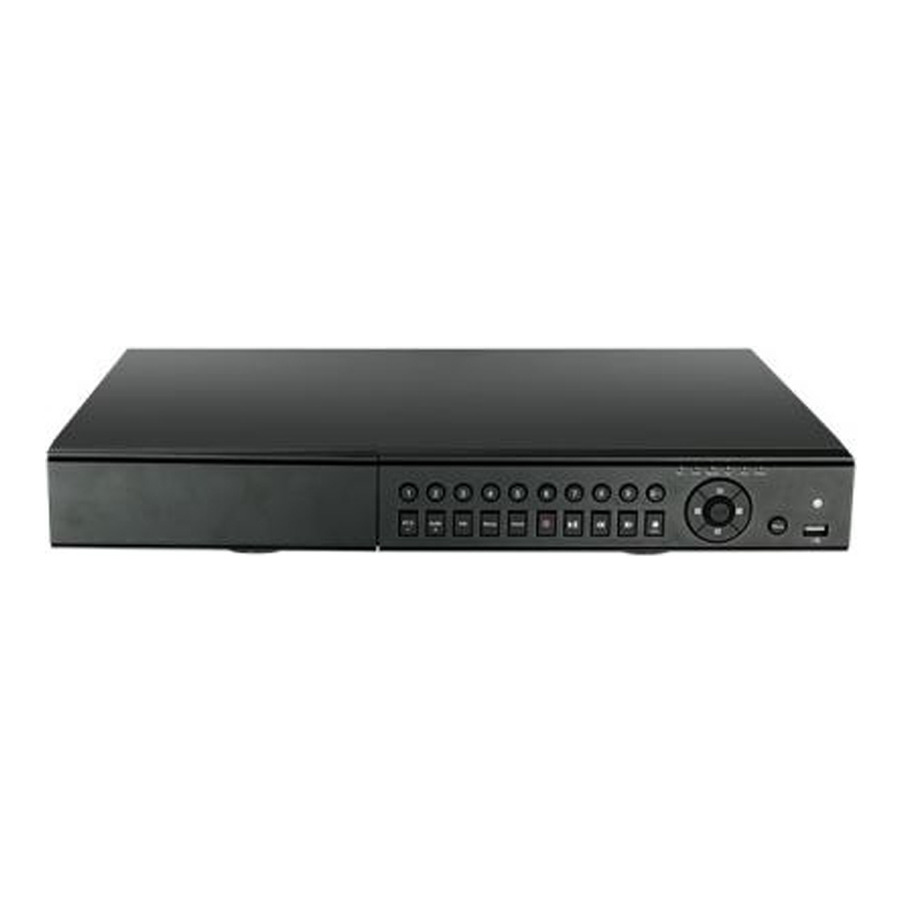

IP Power NVST-TN220-16E 16 Channel Network Video Recorder(NVR) for IP cameras up to 3MP

NVST TN220-16E is standard 16 CH real time 3MP / 1080P / 960P / 720P / D1 high resolution NVRs, which adopt the most advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system. NVST TN220-16E support 16 CH IP input, simultaneous 4 CH playback, and HDMI 1080P high resolution display, with standard 1U chassis. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
- Support 16 Ch 3MP @30fps or 1080P @30fps or 960P @30fps or 720P @30fps IP input
- Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphic User Interface(GUI), Windows style, operation by mouse
- Multi-mode recording: manual / timer / motion / sensor
- Playback : 4 CH simultaneous playback
- Search : calendar / time, events ( alarm, motion )
- Express and flexible backup via USB, network or DVD-RW ( SATA )
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE Network protocol, IE browse and CMS supported
- Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
- Dual streaming technology to encode recording stream and network stream separately . User can adjust network stream to fit bandwidth without changing recording quality
- Multi-user online simultaneously
- Authorization management, log review and device status review
- HDMI 1080P output, true high resolution display
- Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
- Powerful smart phone surveillance supporting iPhone, Andriod
| Model | NVST-TN220-16E |
| SYSTEM | |
| Compression | Standard H.264 / MPEG4 |
| CPU | Cortex A9 |
| OS | Embedded Linux |
| VIDEO | |
| Output | VGA x 1 : 1920 x 1080 HDMI x 1 : 1920 x 1080 |
| Resolution | 3MP / 1080P / 960P / 720P |
| Frame Rate | 16 CH 3MP / 1080P / 960P / 720P @30 fps |
| AUDIO | |
| Input | 8 CH IPC input |
| Output | RCA x 1 |
| 2-way audio | RCA x 1 |
| RECORD | |
| Resolution | 3MP : 2048 x 1536 1080P : 1920 x 1080 960P : 1280 x 960 720P : 1280 x 720 D1 : 704 x 576 |
| Frame Rate | 400 fps ( PAL ), 480 fps ( NTSC ) |
| Bit Rate | 256Kbps ~ 12Mbps |
| Encode | CBR |
| Quality | 6 Level |
| Mode | Manual, Timer, Motion, Sensor |
| File Manager | Lock, Unlock, Reserving Time |
| PLAYBACK | |
| Playback | 4 CH |
| Search | Time/calendar search, event(motion) |
| Smart Search | Highlighted date and time to display the channel record |
| Function | Play, Pause, FF, FB, Digital zoom |
| ALARM | |
| Mode | Sensor, Motion, Video Loss |
| Input | 4 CH local input, support IPC alarm input |
| Output | 1 CH |
| Triggering | Record, PTZ move, alarm out, e-mail, etc |
| NETWORK | |
| Interface | RJ45 10M/100M/1000M adaptive ethernet network port x 1 |
| Protocal | TCP / IP, UDP, DHCP, DNS, PPPOE, DDNS |
| Others | 20 users online, dual stream |
| CELLPHONE | |
| OS | iPhone, Andriod |
| Function | Multi-screen surveillance, record, snapshot, PTZ control, save the device list |

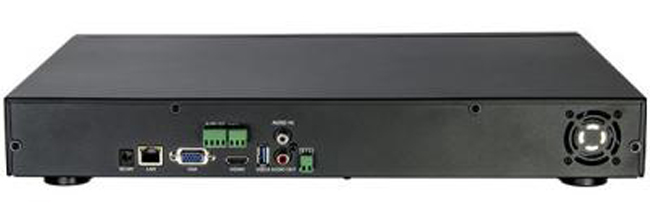

| PORT | |
| HDD | SATA x 2 |
| RS485 | RS485 x 1, connect to PTZ or keyboard |
| USB | USB 3.0 x 1, USB 2.0 x 1, one for mouse, another for USB backup device |
| Remote Controller | Yes |
| OTHERS | |
| Power Supply | DC 12V |
| Consumption | < 10W (without HDD) |
| Dimensions | 400 mm x 300 mm x 55 mm (W x D x H) |
| Work Environment | -10 ~ 55 °C =, 10% ~ 90% Humidity |
