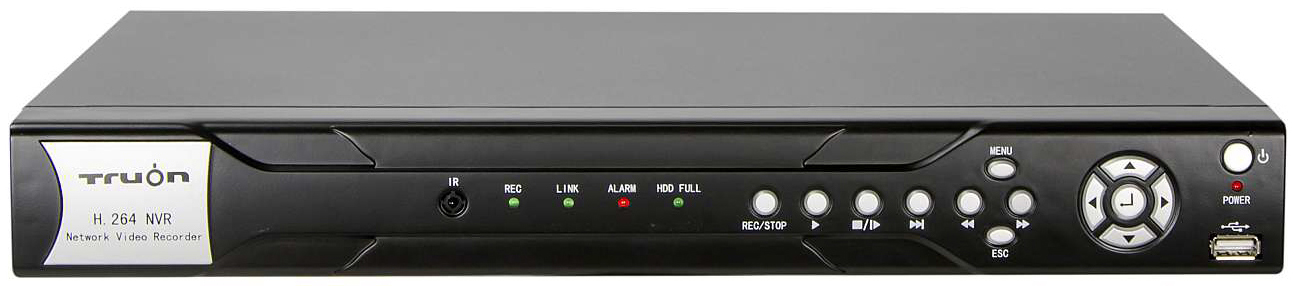

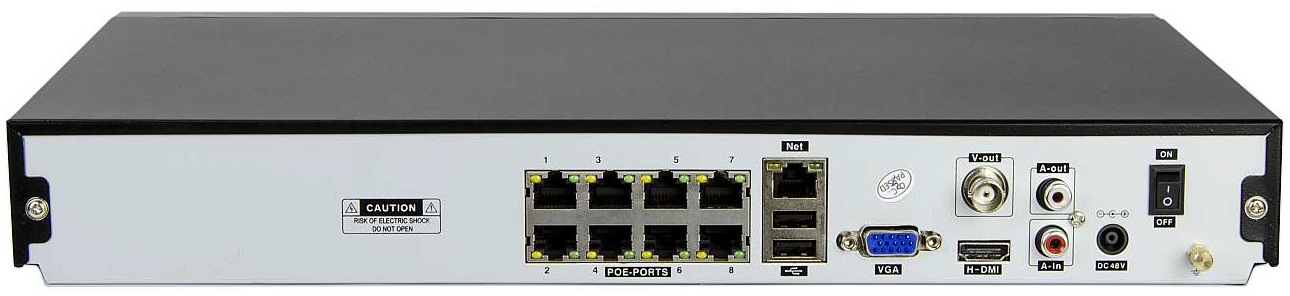

NVST-SR508AE | Truon NVR / 8CH 720P/1080P / 8PoE Ports / 1xHDMI / 1xVGA

Additional View

NVST-SR508AE | Truon NVR / 8CH 720P/1080P / 8PoE Ports / 1xHDMI / 1xVGA

Related Products

IP Power NVST-TS5404-04E TS Series � 4 CH NVR for IP cameras up to 5MP w/ 4 CH PoE & 4K OUTPUT

IP Power NVST-TS5408-08E TS Series � 8 CH NVR for IP cameras up to 5MP w/ 8 CH PoE & 4K OUTPUT

IP Power NVST-TS5416-16E TS series 5416-16E | 16Ch Network Video Recorder (NVR), 16 PoE port, H.265, up to 8MP (4K), HDMI, 112Mbps Bandwidth, 8 � SATA, 1 � eSATA

IP Power NVST-TS5432-16E TS Series � 32 CH NVR for IP cameras up to 5MP w/ 16 CH PoE & 4K OUTPUT

We Carry the Best Brands in CCTV Business

Model	NVST-SR508AE
System
Operating System	Embedded LINUX
Video & Audio
IP Camera Input	8 channel
Two-way Talk	1 channel Input, 1 channel Output, BNC
Display
Interface	1 HDMI, 1 VGA, 1 BNC
Resolution	800 x 600;1024 x 768;1280 x 1024;1440 x 900;1920 x 1080
Display Split	1/8
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression	H.264 (High Profile@Level4.2) / MPEG-4
Resolution	1080P(1920 � 1080) / 720P(1280 � 720) / D1 (704 � 576/704 � 480)
Record Rate	Max 8CH@1080P
Record Mode	Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval	1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Detection
Trigger Events	Recording, Alarm, Video Push, Email, Buzzer
Video Detection	Motion Detection, Video Loss, HDD Loss
Playback & Backup
Sync Playback	6 x 1080P/8 x 720P/8 x D1
Search Mode	Time/Date, Alarm, MD & Exact search (accurate to second)
Playback Functions	Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode	USB Device / Network
Network
Ethemet	RJ-45 port (10/100M) 8 POE port
Network Functions	HTTP, IPv4/IPv6, TCP/IP, UPNP, DHCP, DNS, PPPOE, DDNS
Max.User Access	20 users
Mobile Phone	IPhone, IPad, Android
Storage
Internal HDD	2 SATA ports, up to 4TB x 2
Auxiliary Interface
USB Interface	3 ports (2 Rear), USB2.0
RS232	N/A
RS485	N/A
General
Power Supply	DC48V/2.5A
Power Consumption	10W(without HDD)
Working Environment	14�F ~ 131�F(-10 ~ 55�C) / 10 ~ 90%RH / 86 ~ 106kpa
Dimension(W x D x H)	255 x 230 x 42 (mm)
Weight	3.3 ~ 4.4lb(1.5 ~ 2.0kg)(without HDD)
