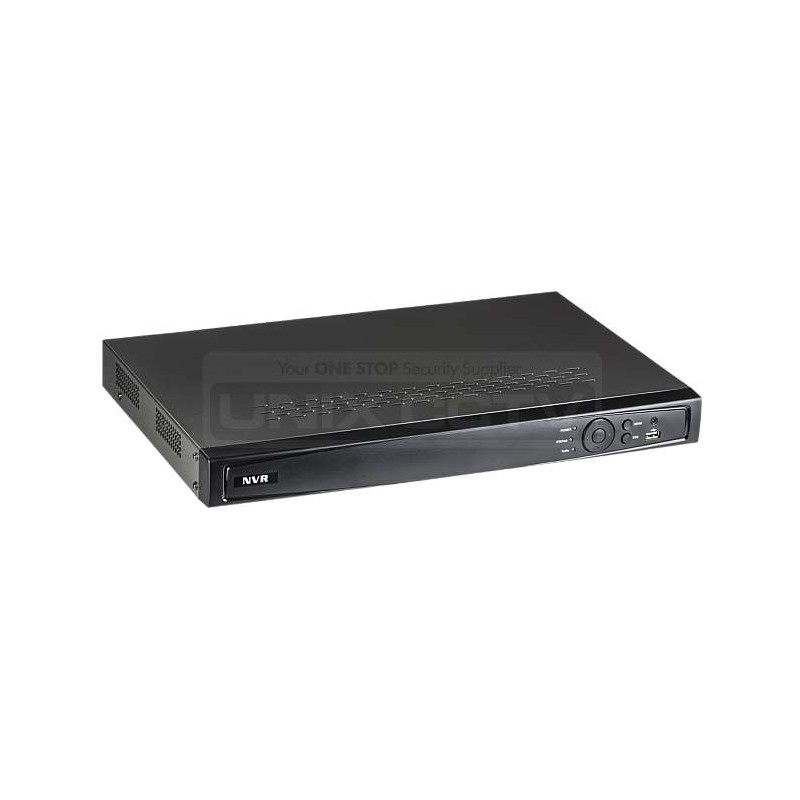

Eyemax NVST-DH6208E1 DH Series : 8 CH Network Video Recorder(NVR) for IP cameras w/ 8 CH PoE Input
IP Cameras and Network Video Recorders NVRs
IP Power Cameras and NVRs
IP Power Network Video Recorders 4-128 Channel
Eyemax NVST-DH6208E1 DH Series : 8 CH Network Video Recorder(NVR) for IP cameras w/ 8 CH PoE InputIP NVR • 6MP • 8CH • 80Mbps • 2xSATA • 8Ch PoE • H.264+ • HDMI/VGA
- Connectable to the third-party network cameras like like ACTI, Arecont, AXIS, Bosch, Brickcom, Canon, ONVIF, PANASONIC, Pelco, PSIA, SAMSUNG, SANYO, SONY, Vivotek and ZAVIO.
- 8 network cameras can be connected for different models.
- Support live view, storage, and playback of the connected camera with up to the resolution of 6 megapixels.
- Simultaneous HDMI and VGA outputs at up to 1920 × 1080 resolution.
- New GUI and support starting record with one key.
- Multiple recording types: manual, continuous, alarm, motion, motion | alarm, motion & alarm.
- Realize instant playback for assigned channel during multi-channel display mode.
- Customization of tags, searching, and playing back by tags.
- Playback by sub-periods.
- Locking and unlocking record files.
- Support HDD quota mode; different capacity can be assigned to different channel.
- Up to 2 SATA hard disks can be connected with up to 4TB capacity for each.
- 1 self-adaptive 10M/100M/1000M network interface is provided.
- Up to 8 independent PoE network interfaces for different models.
- Support DDNS (Dynamic Domain Name System).
- Support network detection, including network delay, packet loss, etc.
- Support enabling high compression CODEC to ensure high video quality with lowered bitrate.
| Video/Audio input | |
| IP video input | 8-ch |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming bandwidth | 80Mbps |
| Outgoing bandwidth | 80Mbps |
| Remote connection | 128 |
| Video/Audio output | |
| Recording resolution | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Frame rate | Main stream: 50 fps (P) / 60 fps (N) Sub-stream: 50 fps (P) / 60 fps (N) |
| HDMI/VGA output | 1-ch, resolution: 1920 × 1080 /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz |
| Audio output | 1-ch, RCA (Linear, 1kΩ) |
| Decoding | |
| Live view / Playback resolution | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability | 8-ch@720P, 6-ch@1080P |
| Hard disk | |
| SATA | 2 SATA interfaces for 2 HDDs |
| Capacity | Up to 4TB for each disk |
| External interface | |
| Network interface | 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface |
| USB interface | 1 × USB 2.0 and 1 × USB 3.0 |
| Alarm in/out (Optional) | 4 / 1 |
| PoE | |
| Interface | 8 independent 100 Mbps PoE network interfaces |
| Max. Power | 120W |
| Supported standard | AF and AT |
| General | |
| Power supply | 100 ~ 240V AC |
| Consumption (without hard disk and PoE) | ≤10W |
| Working temperature | −10 ºC ~ +55 ºC (+14 ºF ~ + 131 ºF) |
| Working humidity | 10 % ~ 90 % |
| Chassis | 19-inch rack-mounted 1U chassis |
| Dimensions (W × D × H) | 445 × 290 × 45mm (17.5" × 11.4" × 1.8") |
| Weight (without hard disk) | ≤ 1 kg (2.2 lb) |
