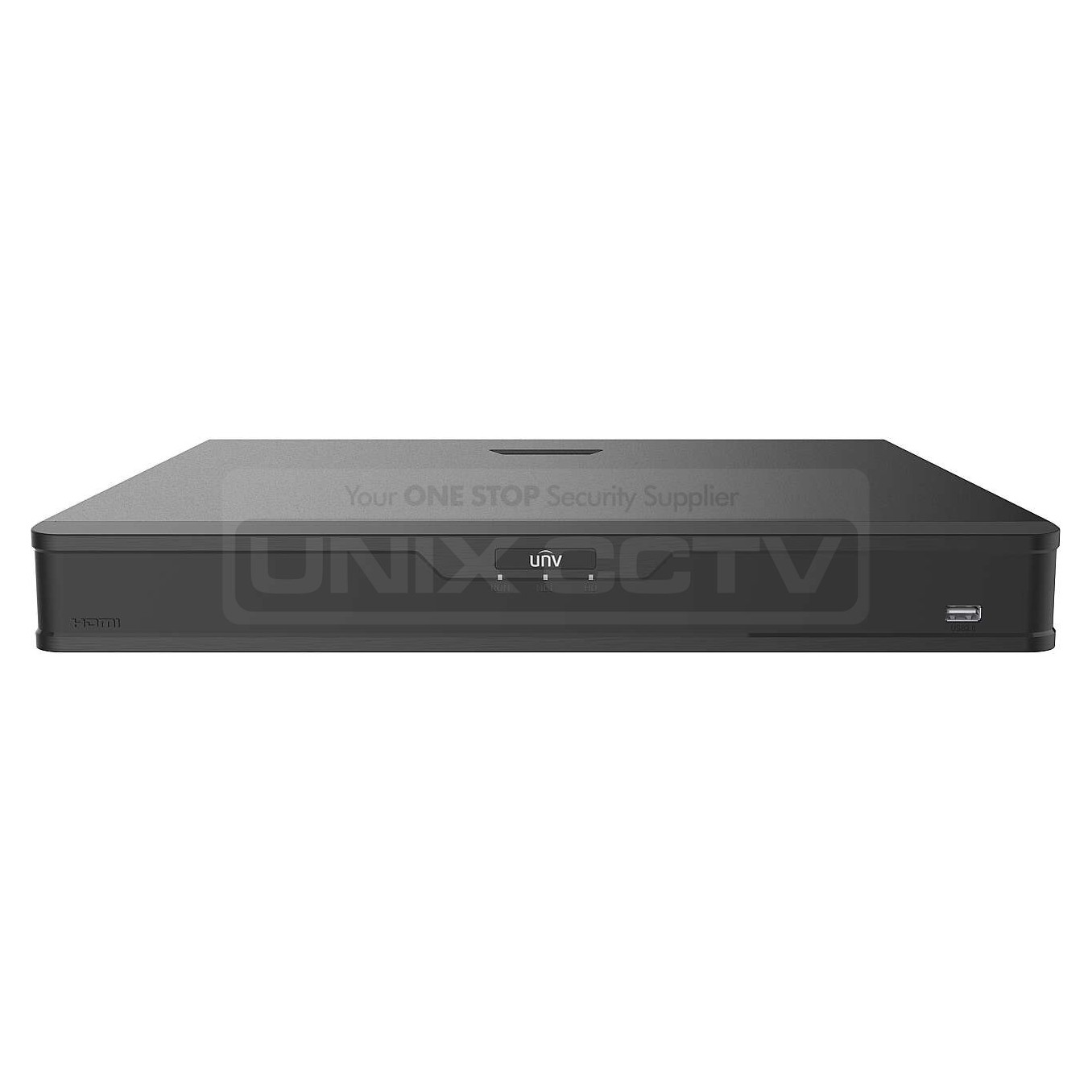

UNV NVR302-16B-P16-IQ 16CH 12MP AI+ NVR System, 16 PoE

NDAA Compliant • 16CH IP (up to 12MP) • 16 PoE • Ultra 265 CODEC • 160Mbps Incoming Bandwidth • 128Mbps Outgoing Bandwidth • Face Detection • Vehicle Detection • SIP • UMD • All Ch. Face/Vehicle Detection, UMD, SIP By IPC • 4-ch(UMD); 2-ch(SIP) by NVR • 2 SATA

Decoding
Decoding Format	Ultra 265,H.265,H.264
Decoding Capability	Smart Off：2 × 12MP@30, 2 × 4K@30, 4 × 4MP@30, 10 × 1080P@30, 16 × 720P@30 Smart On：2 × 4K@30, 4 × 4MP@30, 8 × 1080P@30, 16 × 720P@30
Decoding Capability Description	*. The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width.
Audio Compression	G.711A, G.711U
Network
Incoming Bandwidth	160Mbps
Outgoing Bandwidth	128Mbps
Remote Users	128
Protocols	TCP / IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4
Browser(Plugin)	Windows: IE (IE10/ 11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above)
Video / Audio Input
IP Video Input	16-ch
RCA Audio Input	1-ch
Video / Audio Output
HDMI Output	4K(3840 × 2160) / 30Hz, 1920 × 1080 / 60Hz, 1920 × 1080 / 50Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz
VGA Output	1920 × 1080 / 60Hz, 1920 × 1080 / 50Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz
RCA Audio Output	1-ch
Liveview Display	1 / 4 / 6 / 8 / 9 / 16
Corridor Mode Screen	3 / 4 / 5 / 7 / 9 / 10 / 12 / 16
Two-way Audio
Two-way Audio	1-ch,RCA(Using the audio input and output)
Snapshot
FTP / Schedule / Event Snapshot	4-ch snapshot,up to D1 resolution
Recording
Recording Resolution	12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF
Synchronous Playback in Local	16-ch
Smart
VCA Detection by IPC	Face Detection, face detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), People Counting (People Flow Counting, Crowd Density Monitoring), Traffic Monitoring
Smart by NVR	Face Detection, face detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
VCA Search	Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
Smart by IPC	All channels (up to 8 images/s in total)Face Detection, face detection, Vehicle Detection, SIP, UMD, Traffic Monitoring
Vehicle Picture Library	Up to 5 vehicle picture libraries,with up to 25,000 vehicle pictures in total
SIP by NVR	2-ch
UMD by NVR	4-ch
Alarm
General Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording / Snapshot Abnormal
GUI Language
GUI Language	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA	2 SATA Interfaces
Capacity	Up to 10TB for each HDD (The maximum HDD capacity varies with environment temperature)
External Interface
Network Interface	1 RJ45 10M / 100M / 1000M self-adaptive Ethernet Interface
USB	Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
RS485	1
RS232	N / A
Alarm In	8-ch
Alarm Out	2-ch
Power Supply	AC 100 ~ 240V
PoE
PoE Interface	16 RJ45 10M / 100M self-adaptive Ethernet Interface
Max Power	Max 30W for single port, Max 240W in total
Supported Standard	IEEE 802.3at, IEEE 802.3af
Working Environment
Working Temperature	−10°C ~ + 55°C (+14°F ~ +131°F)
Working Humidity	≤ 90% RH (non-condensing)
Power Consumption (without HDD)	≤ 12W
Dimensions
Weight (without HDD)	≤ 2.7Kg (6.0lb)
Dimensions	380mm × 322mm × 53mm (15.0" × 12.7" × 2.1")
Certification
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000 ~ 3-3, EN IEC 61000 ~ 3-2, EN 55035
FCC	Part15 Subpart B

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Tell A Friend

bookmark site!

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

UNV NVR302-16B-P16-IQ 16CH 12MP AI+ NVR System, 16 PoE

SKU#

:

NVR302-16B-P16-IQ

Regular Price

:

$999.95

Sale Price

:

$769.95

You Save

$230.00(23.00% )

Availability

:

Usually ships the next business day
