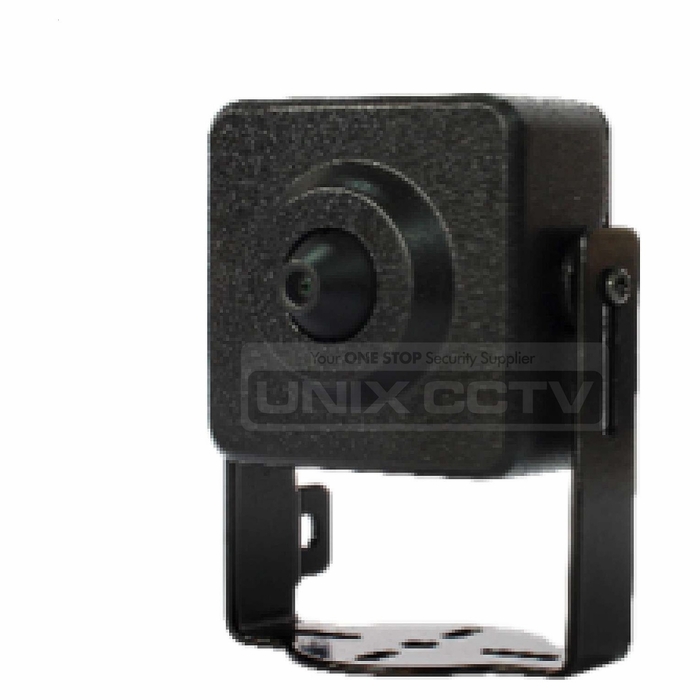

Eyemax NSQ-E202P-B ® E202P | 1080p Network Square Case Camera, H.265, Fixed Lens, True WDR, DC 12V, Small Size

Camera
Sensor	1/2.8" 2.0Mega progressive scan CMOS
Min.illumination	Color: 0.01Lux @ (F1.2, AGCON) B&W: 0.001Lux @ (F1.2, AGCON)
Lens	3.7mm @ F2.8
Electronic Shutter	Auto（1/25s ~ 1/10000s）
Day / Night	Auto / Color / B&W
DNR	2D/3D DNR
Anti-Fog	Support (ON/OFF)
WDR	Real-WDR
Image Adjustment	Sharpness, Brightness, Saturation, Contrast Adjustable
Image Mode	Transparence / Reality
Color Mode	Standard / Colorful
Distortion Correction	Support
Corridor Mode	Support
Encode
Video Encoding	H.265+ / H.265/ H.264 High Profile / Main Profile / Base Line Profile / MJPEG
Max Resolution	Main Stream: 1920×1080 @ 25/30fps
Triple Stream	Sub Stream: 704×576 @ 25/30fps Third Stream: 1280×720 @ 25fps
Stream Mode	Triple Stream
Video Bitrate Control	Support VBR / CBR
Video Bitrate Range	32Kbps ~ 8MKbps
Interface
Reset	External Reset Button
Network Port	1 RJ45 10M/100M Ethernet interface
Function
Motion Detection	Multiple Detection Zones, Variable Sensitivity Levels
Corridor Mode	Support
ROI	Support
Privacy Masking	4 Zones for Privacy Masking
Snapshot	Support JPEG, Resolution is the max encoding resolution
Security Features	Support password, watermarking
Text Overlay	Support （Channel name, Date & Time）
Alarm	Support network anomaly, mask alarm and etc.
Intelligent Function	Face Detection, Intrusion Detection, Object Missing/Left Detection, Through Fence Detection, Retrograde Detection, Loitering Detection , Density Detection, Counting, Color Cast, Car License Detection , Out of Focus Detection, Camera Movement Detection.
Mobile Phone APP	Support IOS and Android
Network Protocol	TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPOE, UPNP, SMTP
Protocol	ONVIF / CGI / GB28181
General Parameter
Power Supply	DC 12V（±25%）
Working Temperature	−40°C ~ -＋70°C (*Start up should be done at above -40°C)
Humidity	10％ ~ 90％
Power	2W MAX
Size	35.4×35.4×26.8(mm)
Weight	0.17 lbs (78g)
