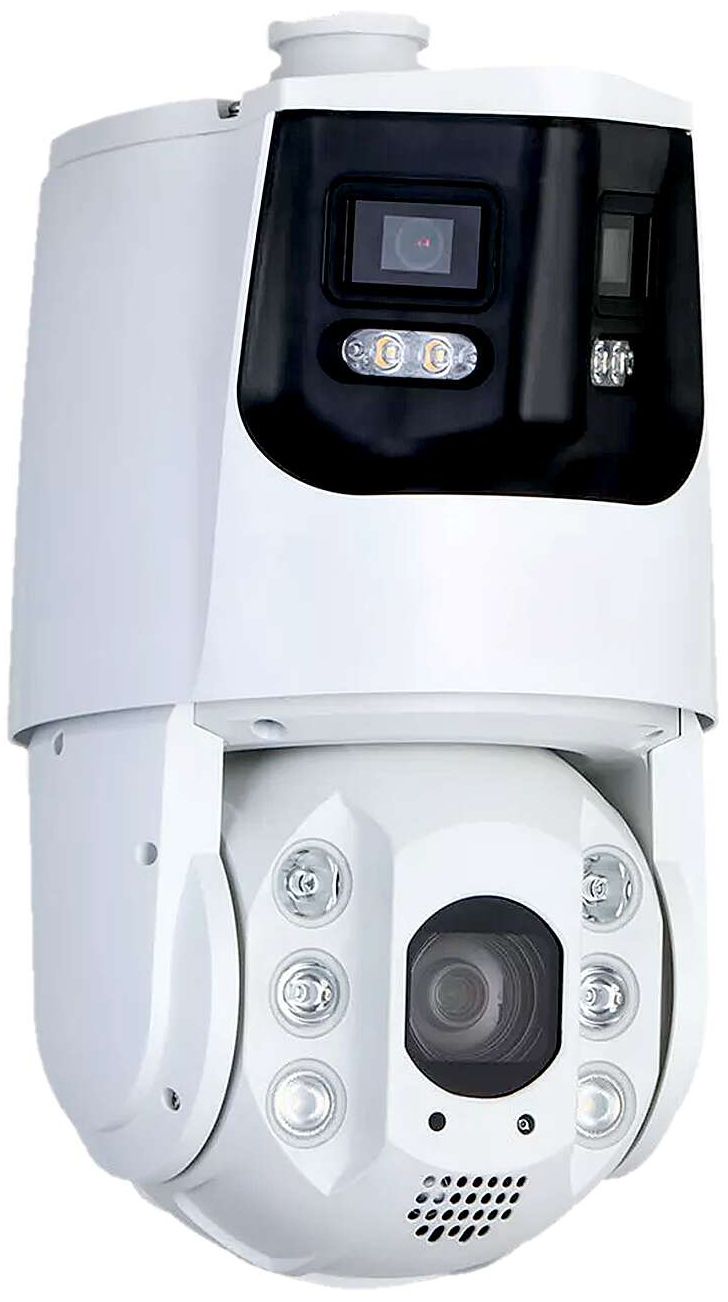

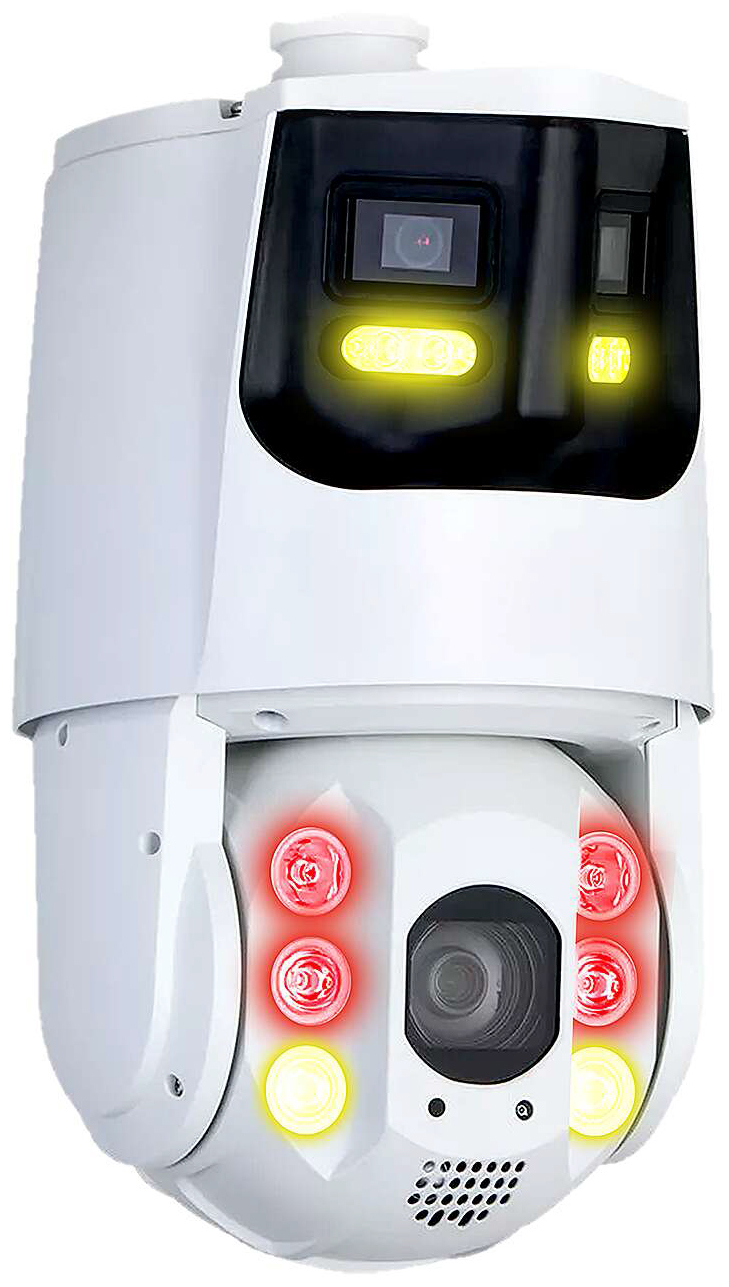

NPT-IR-EP4232-S1S Eyemax 4MP 32x Dual-Light Night Color Panoramic PTZ Camera w/ Light and Sound Warning

Additional View

Product Overview

This multi-sensor PTZ camera features a unique lens design with an added lens for simultaneous target tracking and area monitoring. Its built-in AI chip enables advanced intelligent functions, making it ideal for diverse applications.

Face Detection

Supports 6 attributes, 8 expressions, and face cutout options including face and ID photo. Offers three snapshot modes: real-time, priority, and quality-first.

Wide Dynamic Range

Wide Dynamic Range (WDR) delivers clear images in high-contrast lighting by balancing bright and dark areas for superior video quality.

Perimeter Protection

Automatically reduces false alarms from animals, lights, and movement, using secondary recognition to enhance accuracy.

Model	NPT-IR-EP4232-S1S
Camera
Image Sensor	Panorama: 1 / 2.8" CMOS Detail: 1 / 2.8" CMOS
Pixel	Panorama: 4 MP Detail: 4 MP
Max. Resolution	Panorama: 3840 (H) x 1080 (V) Detail: 2560 (H) x 1440 (V)
ROM	Panorama: 4 GB Detail: 4 GB
RAM	Panorama: 1 GB Detail: 1 GB
Electronic Shutter Speed	Panorama: 1 / 1 s-1 / 10,000s Detail: 1 / 1s-1 / 30,000s
Scanning System	Progressive
Min. Illumination	Panorama: Color: 0.001 lux@F1.0 B / W: 0.0001 lux@F1.0 Detail: Color: 0.005 lux@F1.6 (1/25 s, 30 IRE, gain 100) B / W: 0.0005 lux@F1.6 (1/25 s, 30 IRE, gain 100) 0 Lux (IR on)
Illumination Distance	Panorama: 30 m (98.43 ft) (White light) Detail: 200 m (656.17 ft) (IR)
Illuminator On / Off Control	Zoom Prio; Manual; Smart IR; Off
Illuminator Number	Panorama: 4 (White light) Detail: 4 (IR), 2 (White light)
Lens
Focal Length	Panorama: 2.8 mm Detail: 4.8 mm-154 mm
Max. Aperture	Panorama: F1.0 Detail: F1.6-4.0
Field of View	Panorama: H: 180° ± 5°; V: 51° Detail: H: 55.8°-2.3°; V: 31.9°-1.3°; D: 63.7°-2.7°
Optical Zoom	Panorama: N / A Detail: 32�
Focus Control	Panorama: N / A Detail: Auto; semi-auto; manual
Close Focus Distance	Panorama: 0.3 m (0.98 ft) Detail: 0.8 m-5 m (2.62 ft-16.40 ft)
Iris Control	Panorama: Fixed Detail: Auto; manual
DORI Distance
Detect	Panorama: 38.6 m (126.64 ft) Detail: 3080 m(10104.99ft)
Observe	Panorama: 15.3 m (50.20 ft) Detail: 1216.6 m (3991.47 ft)
Recognize	Panorama: 7.7 m (25.26 ft) Detail: 616 m (2021.00 ft)
Identify	Panorama: 3.9 m (12.80 ft) Detail: 308 m (1010.50 ft)
PTZ
Pan / Tilt Range	Detail: H: 0°-360° endless V: -20°-+90°
Manual Control Speed	Detail: Pan: 0.1° / s-160° / s Tilt: 0.1° / s-120° / s
Preset Speed	Detail: Pan: 240° / s; Tilt: 200° / s
Preset	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Power-off Memory	Yes
Idle Motion	Pattern;Preset;Scan;Tour
PTZ Protocol	DH-SD Pelco-P / D(Auto recognition)
Intelligence
IVS (Perimeter Protection)	Tripwire; intrusion; crossing fence detection; loitering detection; abandoned / missing object; fast moving; parking detection; people gathering; vehicle / human alarm classification; linkage tracking
Face Detection	Supports face detection, optimization, tracking, capturing pictures, uploading high-quality face snapshots, and face enhancement; Supports attributes extraction. 6 attributes and 8 expressions; Supports face cutout: Face, one-inch photo. Capturing strategies include real-time capturing, optimization, and quality first
Auto Tracking	Yes
Active Deterrence
Light Warning	Supports white light warning; the flashing time can be configured as: 5 to 30 seconds, and the frequency can be configured as high / medium / low
Sound Warning	A total of 11 audio alarm contents, and supports importing custom audio. The sound can be configured at three levels: high / medium / low, and the duration time can be configured as 5 to 30 seconds. 110 dB.
Video
Video Compression	H.264H;H.264B;Smart H.265+;H.265;MJPEG(Sub Stream);Smart H.264+;H.264M
Streaming Capability	3 streams
Resolution	Panorama: 3840 x 1080; 960 x 268; D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240); Details: 2560 x 1440 (2560 x 1440); 3M (2048 x 1536); 3M (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)
Video Frame Rate	Panorama: 50 Hz: Main stream (3840 x 1080@25 fps), Sub stream 1 (960 x 268@25 fps), Sub stream 1 (704 x 576@25 fps), Sub stream 1 (640 x 480@25 fps), Sub stream 1 (352 x 288@25 fps), Sub stream 2 (1920 x 540@25 fps), Sub stream 2 (1920 x 1080@25 fps), Sub stream 2 (1280 x 960@25 fps), Sub stream 2 (1280 x 720@25 fps) 60 Hz: Main stream (3840 x 1080@30 fps), Sub stream 1 (960 x 268@30 fps), Sub stream 1 (704 x 576@30 fps), Sub stream 1 (640 x 480@30 fps), Sub stream 1 (352 x 288@30 fps), Sub stream 2 (1920 x 540@30 fps), Sub stream 2 (1920 x 1080@30 fps), Sub stream 2 (1280 x 960@30 fps), Sub stream 2 (1280 x 720@30 fps) Details: 50 Hz: Main stream (2560 x 1440@25 fps), Main stream (2048 x 1536@25 fps), Main stream (2304 x 1296@25 fps), Main stream (1920 x 1080@25 fps), Main stream (1280 x 960@25 fps), Main stream (1280 x 720@25 fps), Sub stream 1 (704 x 576@25 fps), Sub stream 1 (640 x 480@25 fps), Sub stream 1 (352 x 288@25 fps), Sub stream 2 (1280 x 720@25 fps) 60 Hz: Main stream (2560 x 1440@30 fps), Main stream (2048 x 1536@30 fps), Main stream (2304 x 1296@30 fps), Main stream (1920 x 1080@30 fps), Main stream (1280 x 960@30 fps), Main stream (1280 x 720@30 fps), Sub stream 1 (704 x 480@30 fps), Sub stream 1 (640 x 480@30 fps), Sub stream 1 (352 x 240@30 fps)Sub stream 2 (1280 x 720@30 fps)
Bit Rate Control	CBR / VBR
Video Bit Rate	Panorama: H.264: 2,816 kbps-13,824 kbps H.265: 1,024 kbp cH.265: 1,024 kbps-7,936 kbps
Day / Night	Paronama: Auto (ICR) / Color / B / W Detail: Auto (ICR) / Color / B / W
BLC	Yes
WDR	Paronama: Yes Detail: Yes
HLC	Yes
White Balance	Panorama: Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp Detail: Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp
Gain Control	Paronama: Auto / manual Detail: Auto / manual
Noise Reduction	Paronama: 2D / 3D noise reduction Detail: 2D / 3D noise reduction
Motion Detection	Yes
Region of Interest (RoI)	Yes
Image Stabilization	Electronic Image Stabilization (EIS)
Defog	Paronama: Electronic Defog Detail: Electronic Defog
Digital Zoom	16�
Image Rotation	180°
S / N Ratio	Paronama: ≥55 dB Detail: ≥55 dB
Audio
Audio Compression	PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
Network
Network Port	RJ-45 (10/100 Base-T)
Network Protocol	FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP / IP;DDNS;UPnP;NFS;ICMP;U DP;IGMP;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP
Interoperability	CGI;ONVIF (Profile S&G&T)
User / Host	20 (total bandwidth: 64 M)
Storage	FTP; Micro SD card (up to 512 G); NAS
Browser	IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions iOS 10 and later versions
Management Software	MDSS;DSS Pro
Mobile Client	iOS;Android
Certification
Certifications	CE: DHQA-ESH-P22100890 / DHQA-ESH- P22100654B-A1
Port
Audio Input	1 channel (LINE IN, bare wire)
Audio Output	1 channel (LINE OUT, bare wire)
Alarm Linkage	Capture; PTZ linkage (preset; tour; pattern); recording; alarm digital input; audio; send email
Alarm Event	Motion / Tampering detection; audio detection; network disconnection detection; IP conflict detection; SD card abnormal detection; memory space detection; tampering detection
Alarm I / O	2 / 1
Audio I / O	1 / 1
Power
Power Supply	36 VDC / 2.23 A ± 25%
Power Consumption	Basic power consumption: 20 W Max. power consumption: 35 W (IR + heater + intelligent functions + PTZ working)
Environment
Operating Temperature	-40 °C to +65 °C (-40 °F to +149 °F)
Operating Humidity	≤95%
Protection	IP66
Structure
Casing Material	Plastic, aluminum alloy
Product Dimensions	247 mm x 202 mm x 359.8 mm (9.72" x 7.95" x 14.17") (L x W x H)
Net Weight	5.3 kg (11.68 lb)
Gross Weight	7.12 kg (15.70 lb)
